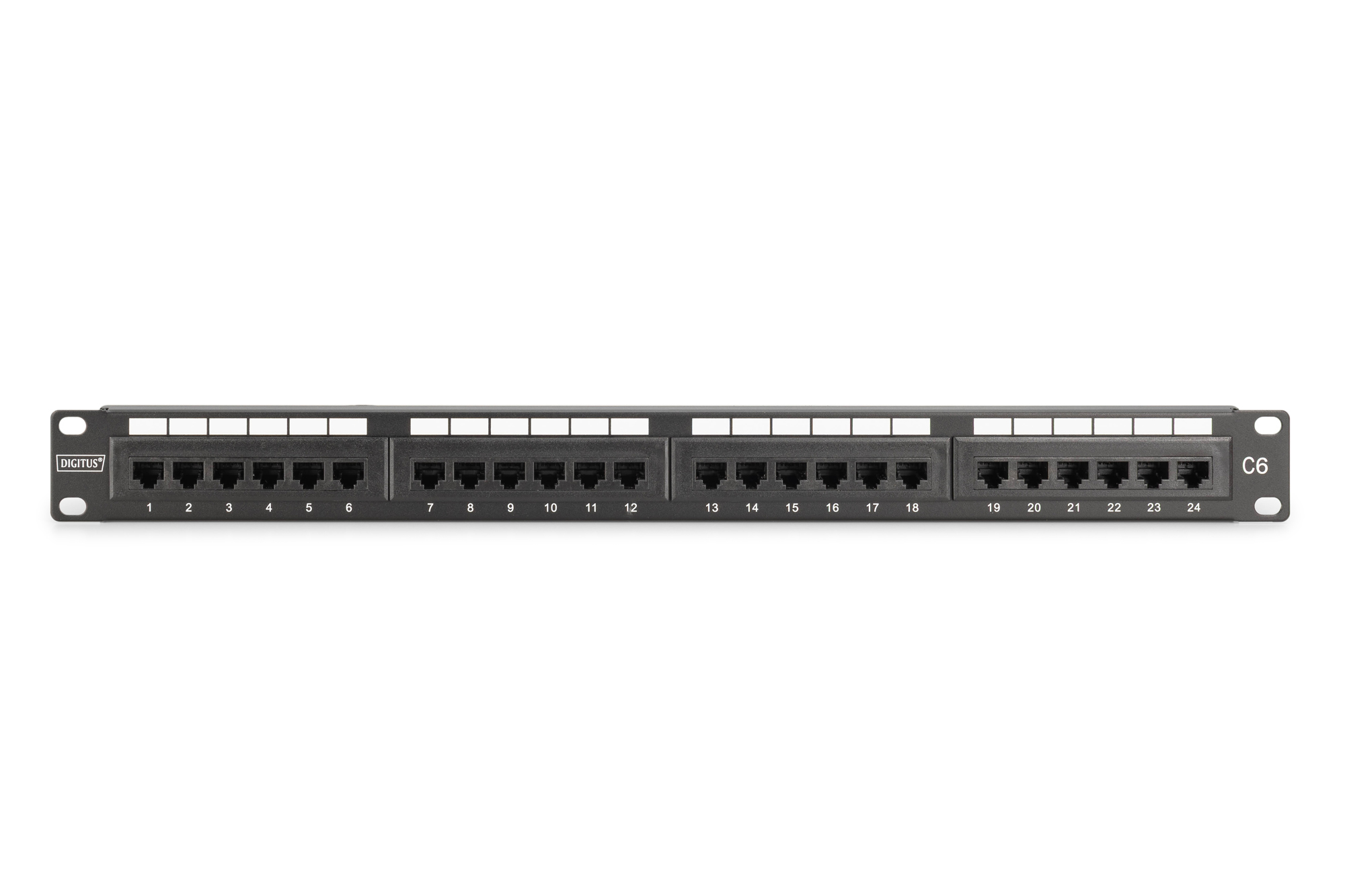

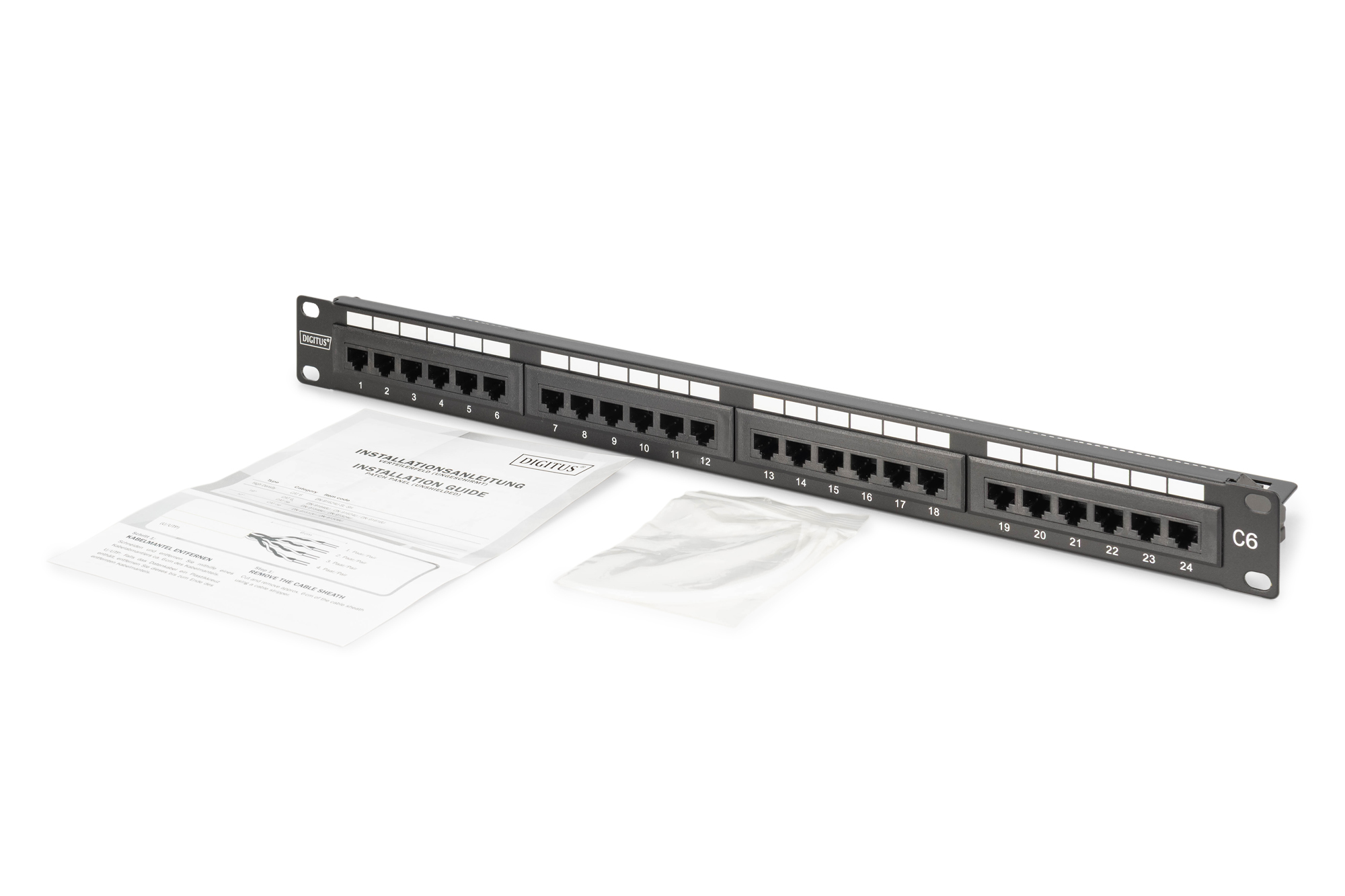

The unshielded CAT 6 patch panel from DIGITUS® is available as a 16- or 24-port (1 rack unit) or 48-port variant (2 rack units). It is manufactured in accordance with the requirements of Link Performance Class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173 and is UL certified. The housing is made of 1.5 mm galvanized cold-rolled steel and is therefore perfectly suited for 19" rack mounting.

Technical details

• Application areas: Up to 250 MHz, 1GBase-T, PoE
• Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• General properties:
• Suitable for 483 mm (19") rack mounting
• RJ45 sockets, 8P8C

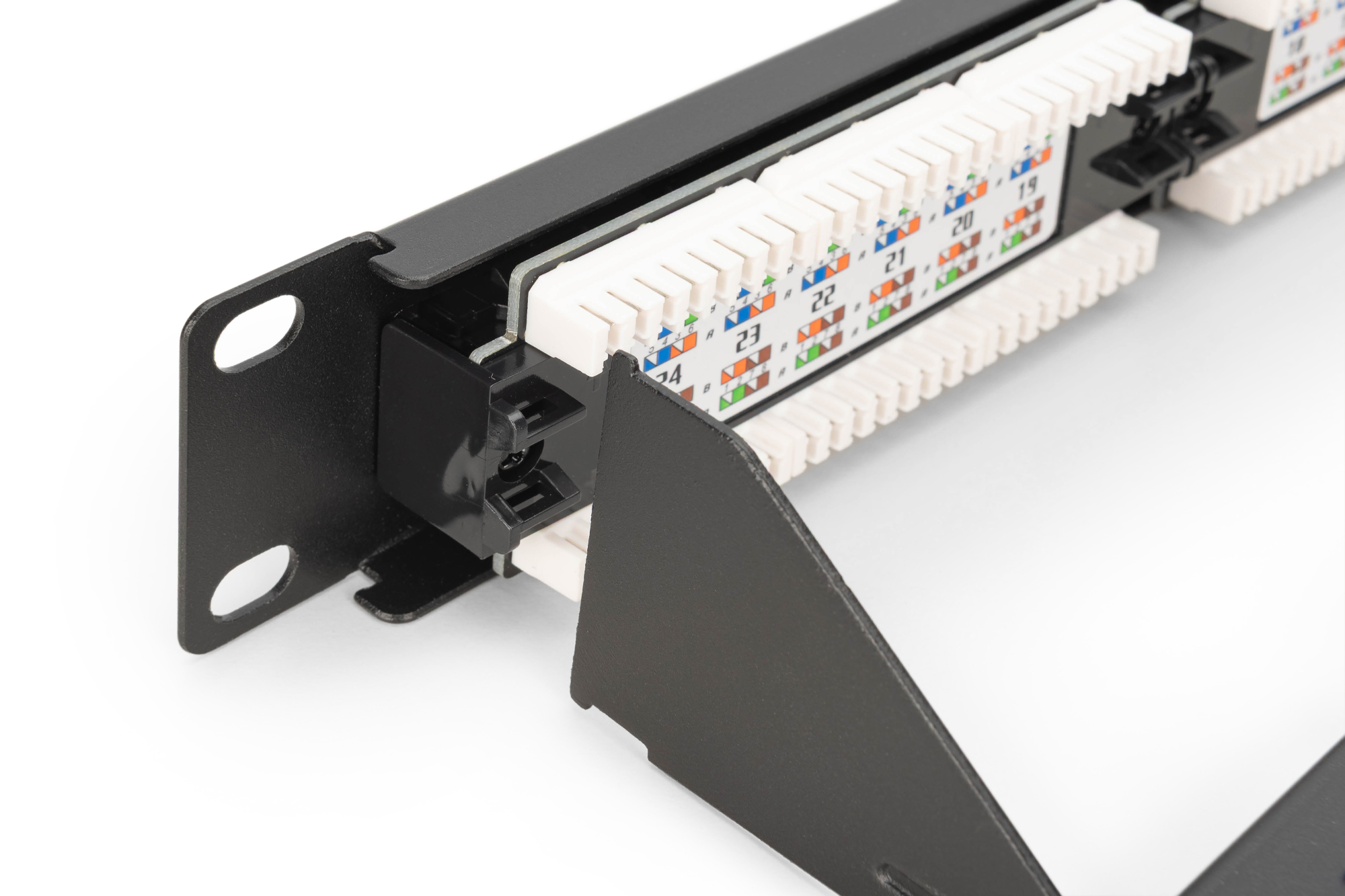

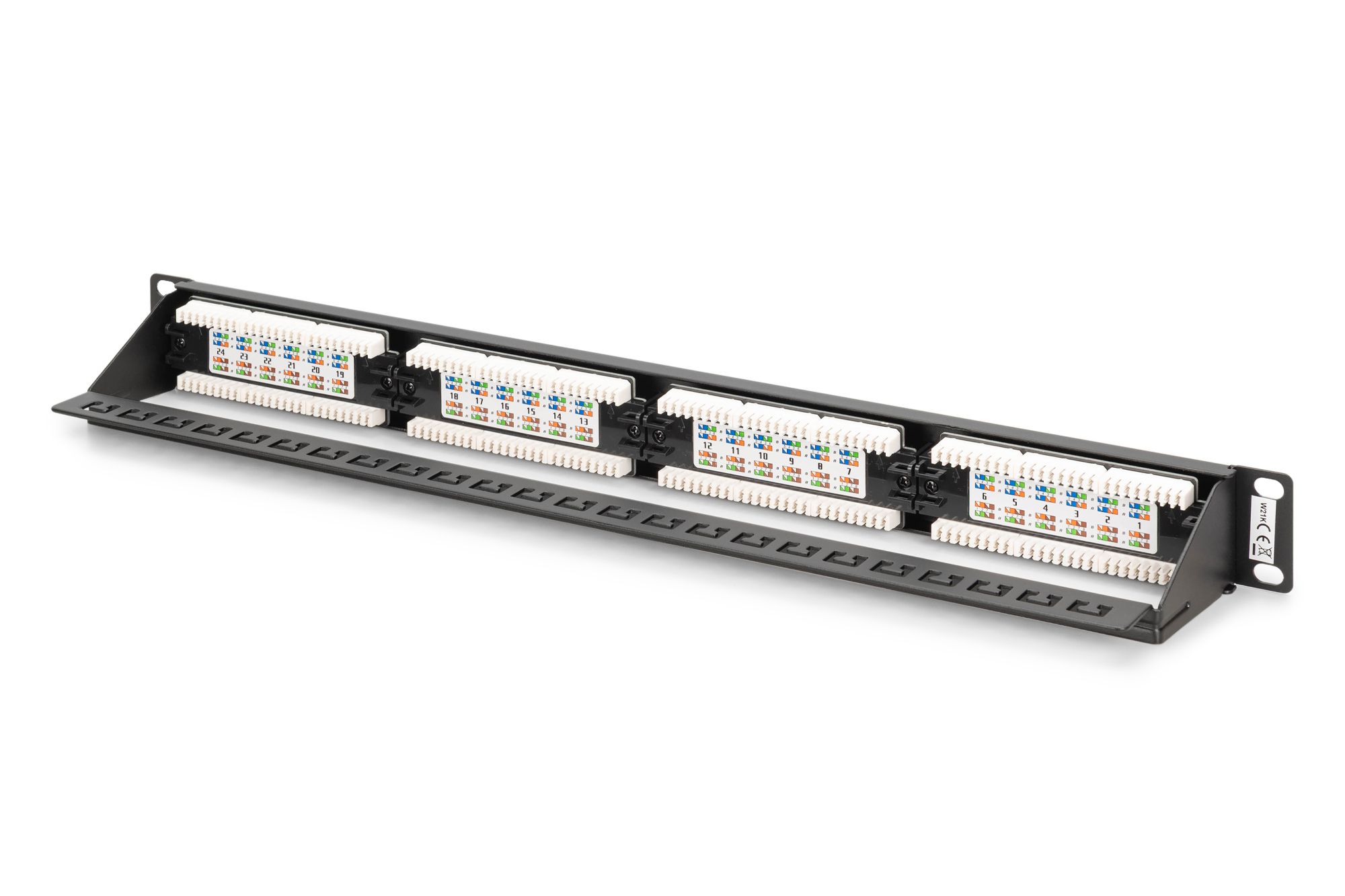

• Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
• Cable fixing by means of quick latches
• Mechanical properties:
• Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
• RJ45 socket material: ABS UL 94V-0
• Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
• RJ-45 shielding: Nickel-plated bronze
• LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze
• Earthing wire: Not included in the scope of delivery
• Printed circuit board: FR4, UL 94V-0
• Physical properties:
• Insertion force: 30N max. (IEC 60603-7-5)
• Tensile load: 7.7 kg between socket and plug
• Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
• Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
• Core receptacle: 22-26 AWG solid and stranded conductors
• Insulation resistance: > 500 MOhm
• Contact resistance: < 20 milliOhms
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)

Attributes

• Color: black, RAL 9005
• Ports: 24
• Units: 1
• Category: CAT 6
