Digitus CAT 6, Class E Patch Panel, shielded, black - DN-91612S
Κωδικός Εργοστασίου (MPN): DN-91612S
The CAT 6 Patch Panels for 254 mm (10") rack mount from DIGITUS® are manufactured with Link Performance Class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173. Cable installation takes place via LSA strips which are color coded acc. EIA/TIA 568B. The housing consists of galvanized, cold-rolled steel, acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110.

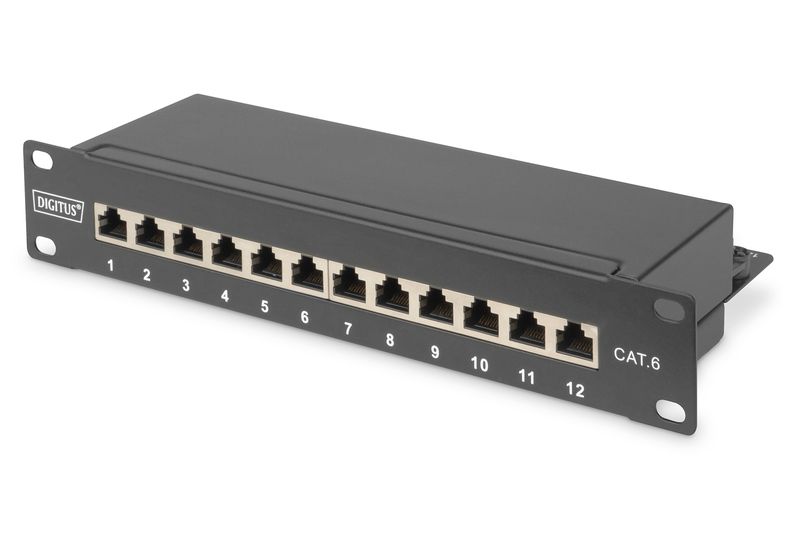

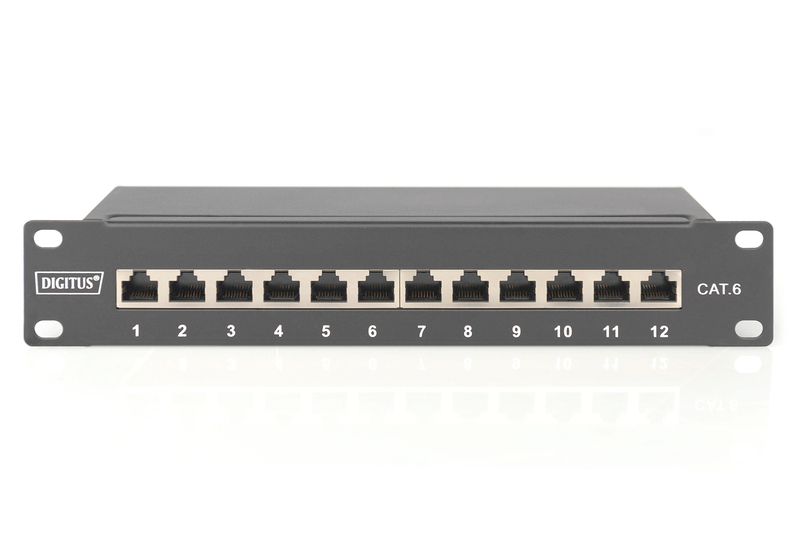

CAT 6, Class E patch panel, shielded, 12-port RJ45 8P8C, LSA, 1U, 254 mm(10")Rack Mount, bl RAL 9005
Future-oriented standards and high-end quality for your network.
- The patch field in Class E Cat.6 meets the 10” standard for rack installation in a corresponding network cabinet and acts as a central connection point for your network cables

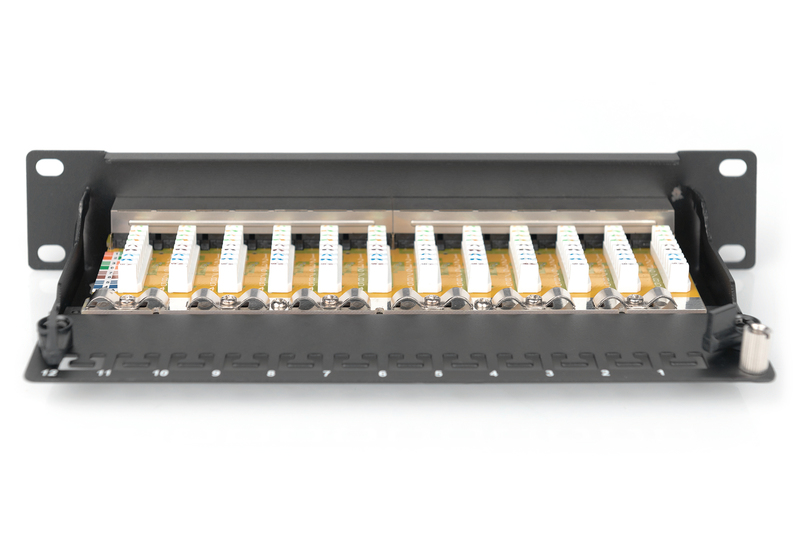

- A closed metal housing including central grounding connection provide shielding for the 12-port patch panel and LSA rails for mounting the network installation cables
- The patch panel is designed for 250 MHz / 1GBASE-T and also works with cables and devices in category Cat.5e and Cat.5 thanks to backwards compatibility
- Patching in accordance with EIA/TIA 568 A & B (LSA rails color-coded accordingly) - Suitable for network cables with AWG 22-26 (solid and stranded conductors)
- Plug cycles of jack: > 750 - Tensile loading RJ45: 7.7 kg - Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) - Insulation resistance: > 500 MΩ - Contact resistance: < 20 mΩ
The CAT 6 Patch Panels for 254 mm (10") rack mount from DIGITUS® are manufactured with Link Performance Class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173. Cable installation takes place via LSA strips which are color coded acc. EIA/TIA 568B. The housing consists of galvanized, cold-rolled steel, acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110.
Technical Details
- Transmission properties: Category 6
- Area of application: Up to 250 MHz, 1GBase-T
- Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties:
- Suitable for 254 mm (10") cabinet mounting
- RJ45 female, 8P8C

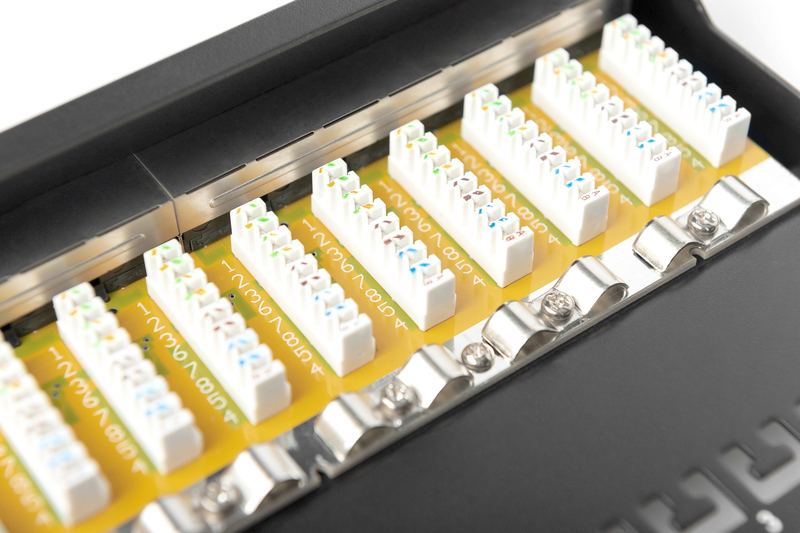

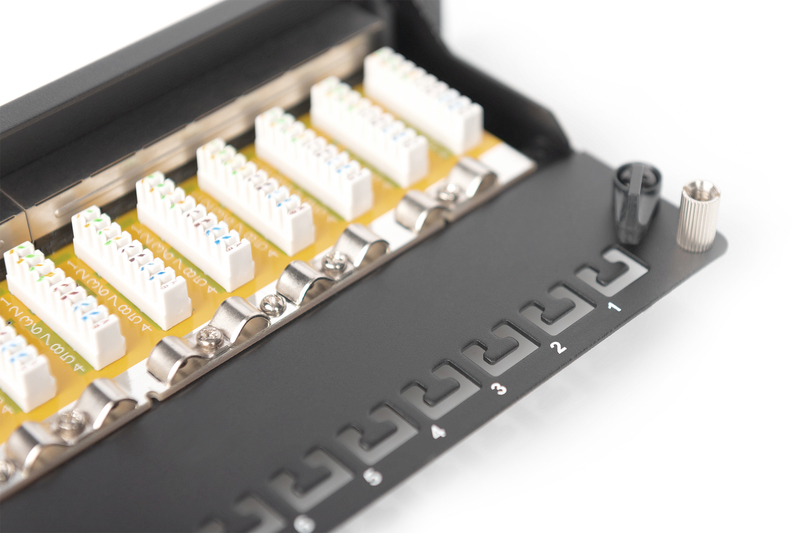

- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B

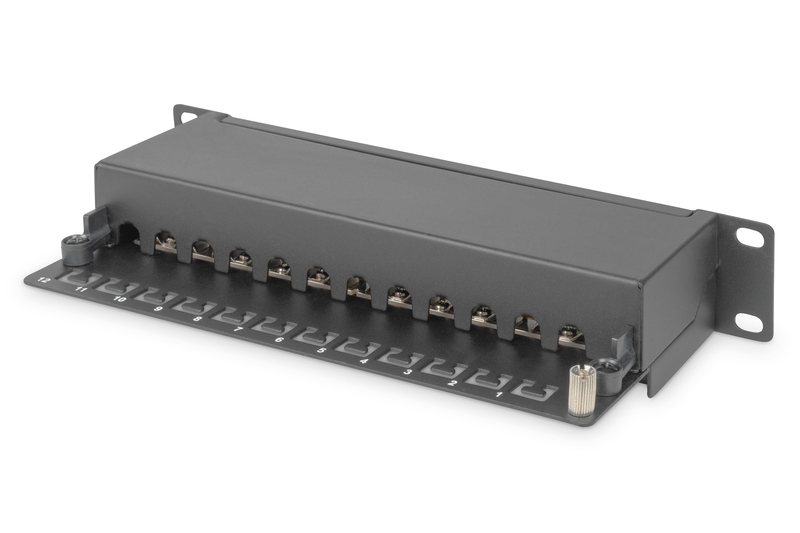

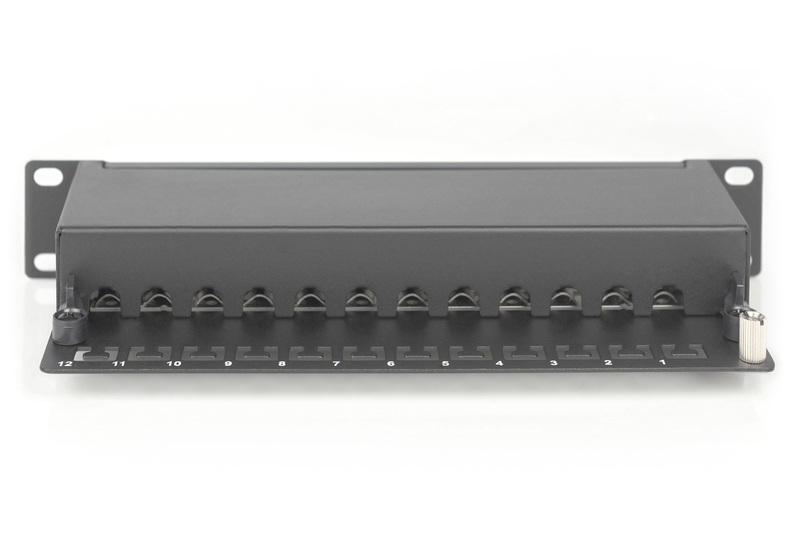

- Cable fixing with smart cable ties
- Central ground connection
- 360° shield coverage
- Mechanical properties:
- Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
- RJ45 female material: ABS UL 94V-0
- RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
- RJ45 shielding: Tinned bronze
- LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
- Ground wire: Not included
- Conductor plate: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- IDC wire size: 22 – 26 AWG solid and stranded conductor
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 MilliOhm
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
- Color: Black (RAL 9005)
- Color: black, RAL 9005
- Units: 1
- Category: CAT 6
- Ports: 12
