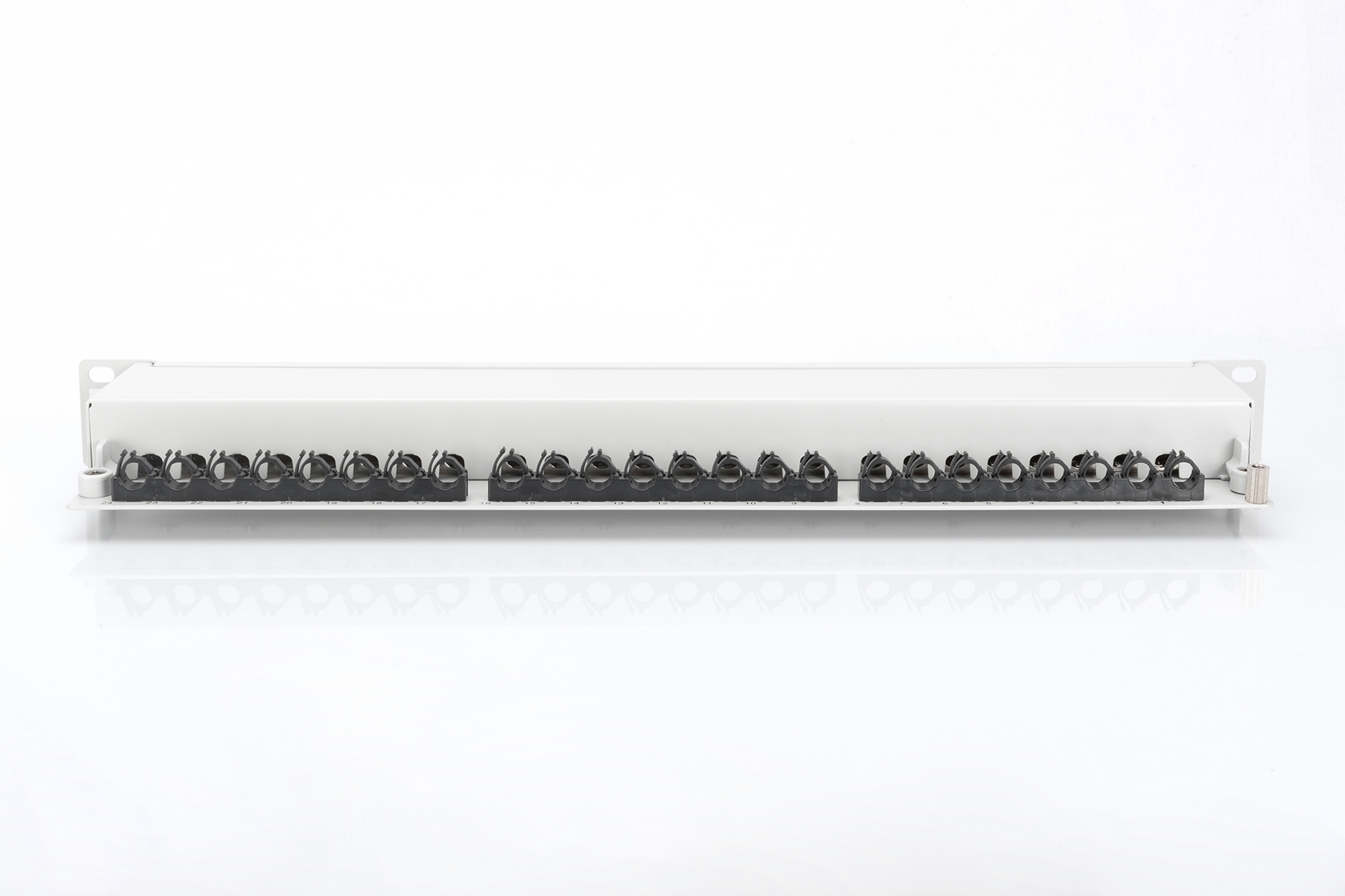

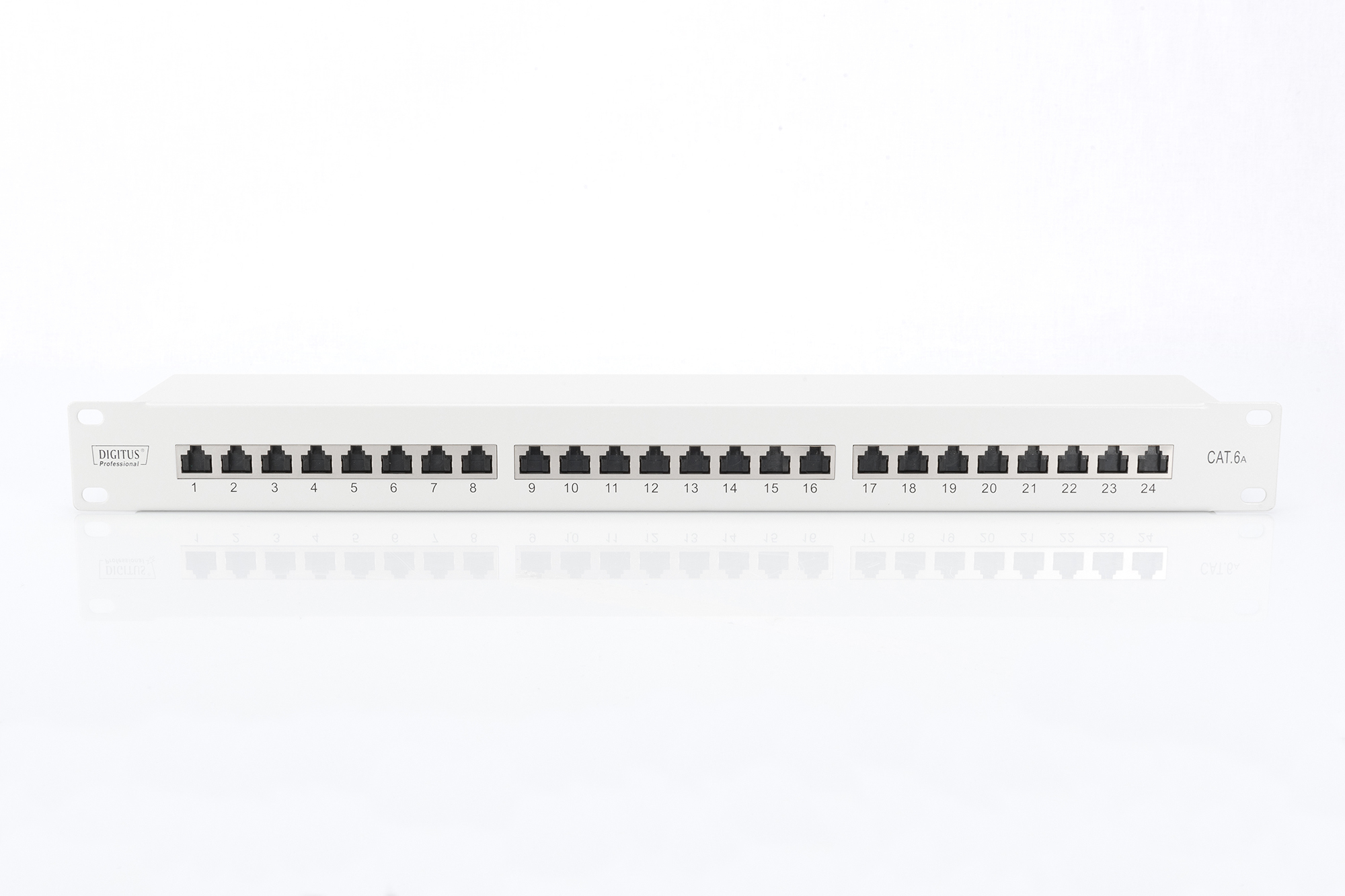

Digitus Patchpanel 24 Port Cat6A Sftp DN-91624S-EA
Κωδικός plus26: 5863-7
Κωδικός Εργοστασίου (MPN): DN-91624S-EA
The DIGITUS® "DN-91624S-EA" CAT 6A Patch Panel is available as 24-port version and is made of 1.5 mm cold-rolled steel which makes it a sturdy Patch Panel for 19" rack mounting. It complies with the 802.3at PoE+ and the 802.3af PoE standardand is equipped with dust protection shutters.
- CAT 6A Patch Panel, shielded, 1U, 24-port, 8P8C, RAL 7035, 483 mm (19"), grey RAL 7035
- Future-oriented standards and high-end quality for your network.
- Sturdy patch panel with metal housing
- Complete shielding of housing and shield contact
- Cable installation by IDC-strips
- Central grounding connector
- Dielectric strength up to 1500 VDC (contact/ground)
- Metal-coated (electrically conductive) cable fixation for grounding the cable shield
Technical details
- Transmission properties: Category 6A, Class EA
- Area of application: Up to 500 MHz, 10GBase-T
- Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
- General properties:
- Suitable for 483 mm (19") cabinet mounting
- RJ45 female, 8P8C
- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
- Cable fixing with smart cable ties
- Central ground connection
- 360° shield coverage
- Intergrated dust cover
- Plastic label field
- CAT 6A Class EA for up to 500 MHz
- Mechanical properties:
- Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
- RJ45 female material: ABS UL 94V-0
- RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
- RJ45 shielding: Tinned bronze
- LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
- Ground wire: Not included
- Conductor plate: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- IDC wire size: 22 – 26 AWG solid and stranded conductor
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 MilliOhm
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
- Color: light grey, RAL 7035
- Ports: 24
- Units: 1
- Category: CAT 6A
Καλέστε μας
Για βοήθεια σχετικά με την επιλογή του κατάλληλου RACK και των παρελκόμενων του επικοινωνήστε μαζί μας για διευκρινίσεις.
Παράδοση
ΠΡΟΣΟΧΗ: Η παράδοση των RACK γίνεται στην είσοδο του κτιρίου.
Μεταφορικά
Για βαριά ή ογκώδη αντικείμενα επικοινωνήστε μαζί μας για μειωμένα εξόδα αποστολής με συνεργαζόμενη μεταφορική.

Στείλτε μια ερώτηση για το προϊόν
Οι τιμές ενδέχεται να αλλάξουν χωρίς προηγούμενη ειδοποίηση.
Η δέσμευση τιμών ισχύει μόνο μέσω ηλεκτρονικής παραγγελίας και της επιβεβαίωσής της.
Οι φωτογραφίες και τα βίντεο των προϊόντων είναι ενδεικτικά και μπορεί να διαφέρουν από το τελικό προϊόν.
Δεν γίνονται δεκτές επιστροφές προϊόντων που έχουν παραγγελθεί κατόπιν αιτήματος.
Η παράδοση των RACK πραγματοποιείται στην είσοδο του κτιρίου.
Digitus KEYSTONE PATCHPANEL 1U 24Port (Με Στήριγμα Kαλωδίων και Γείωση) Μαύρο DN-91411
Κωδικός plus26: 5862-9
MPN: DN-91411
Εγγραφείτε για τιμή
EFB Patchpanel Τηλεφωνικό 50 Port Cat3 Isdn Μαύρο 37595SW.2
Κωδικός plus26: 5862-23
MPN: 37595SW.2
Εγγραφείτε για τιμή

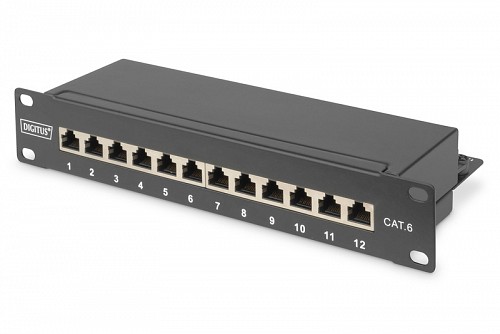

Digitus CAT 6, Class E Patch Panel, shielded, black - DN-91612S
