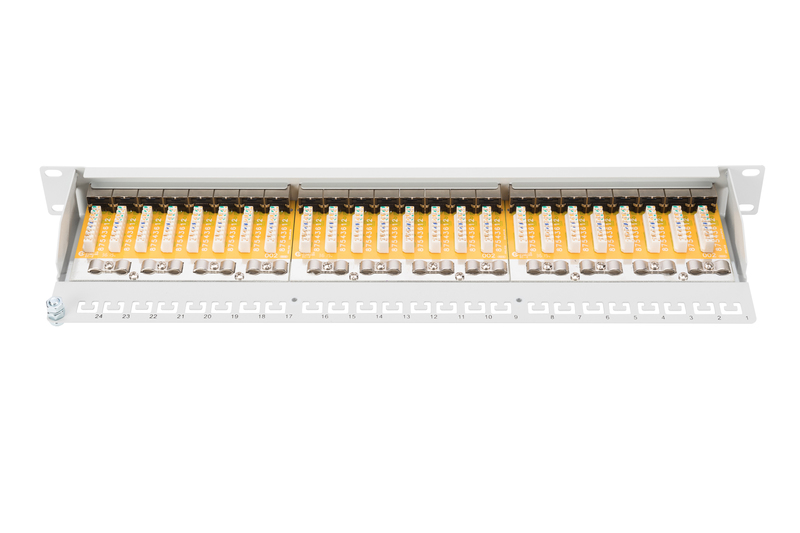

The shielded CAT 6 Patch Panel from DIGITUS® is available as 16- or 24-port version. It is manufactured acc. to Link Performance Class E, for up to 250 MHz, EN 50173 and ISO/IEC 11801 and complies with the 802.3at PoE+and the 802.3af PoE standard. The housing is made of 1.5 mm galvanized cold-rolled steel and is therefore perfectly suitable for 19" rack mounting.

• Area of application: Up to 250 MHz, 1GBase-T
• Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• General properties:
• Suitable for 483 mm (19") cabinet mounting

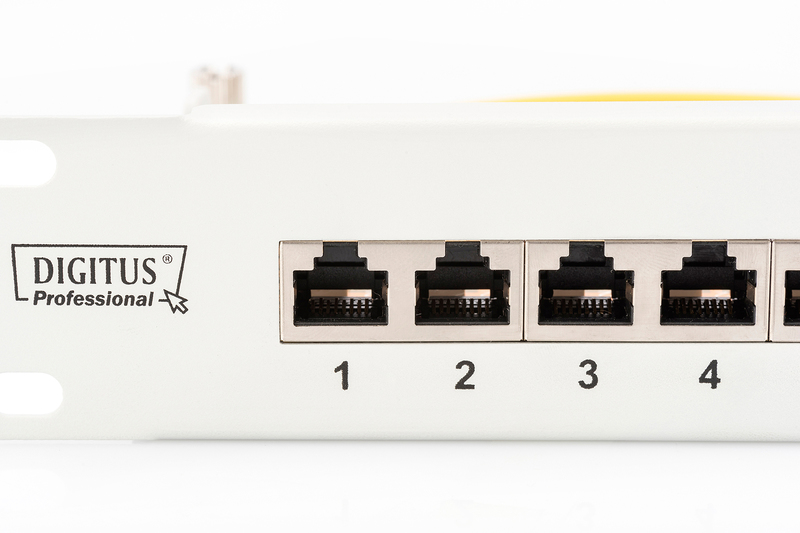

• RJ45 female, 8P8C

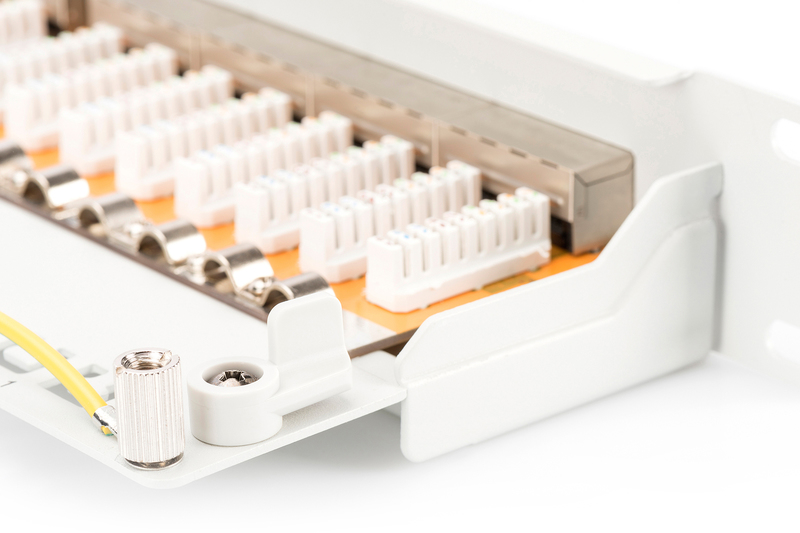

• Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
• Cable fixing with smart cable ties
• Central ground connection
• 360° shield coverage
• Mechanical properties:
• Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
• RJ45 female material: ABS UL 94V-0
• RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
• RJ45 shielding: Tinned bronze
• LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
• Ground wire: Not included
• Conductor plate: FR4, UL 94V-0
• Physical properties:
• Insertion force: 30N max. (IEC 60603-7-5)
• Retention strength: 7.7 kg between jack and plug
• Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
• Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
• IDC wire size: 22 – 26 AWG solid and stranded conductor
• Insulation resistance: > 500 MOhm
• Contact resistance: < 20 MilliOhm
• Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

Attributes

• Color: light grey, RAL 7035
• Ports: 24
• Units: 1
• Category: CAT 6
