Digitus Patchpanel 24 Port CAT5e UTP DN-91524U

Κωδικός plus26: 5862-24

Κωδικός Εργοστασίου (MPN): DN-91524U

Εγγραφείτε για τιμή14% έκπτωση

Εγγραφείτε για τιμή

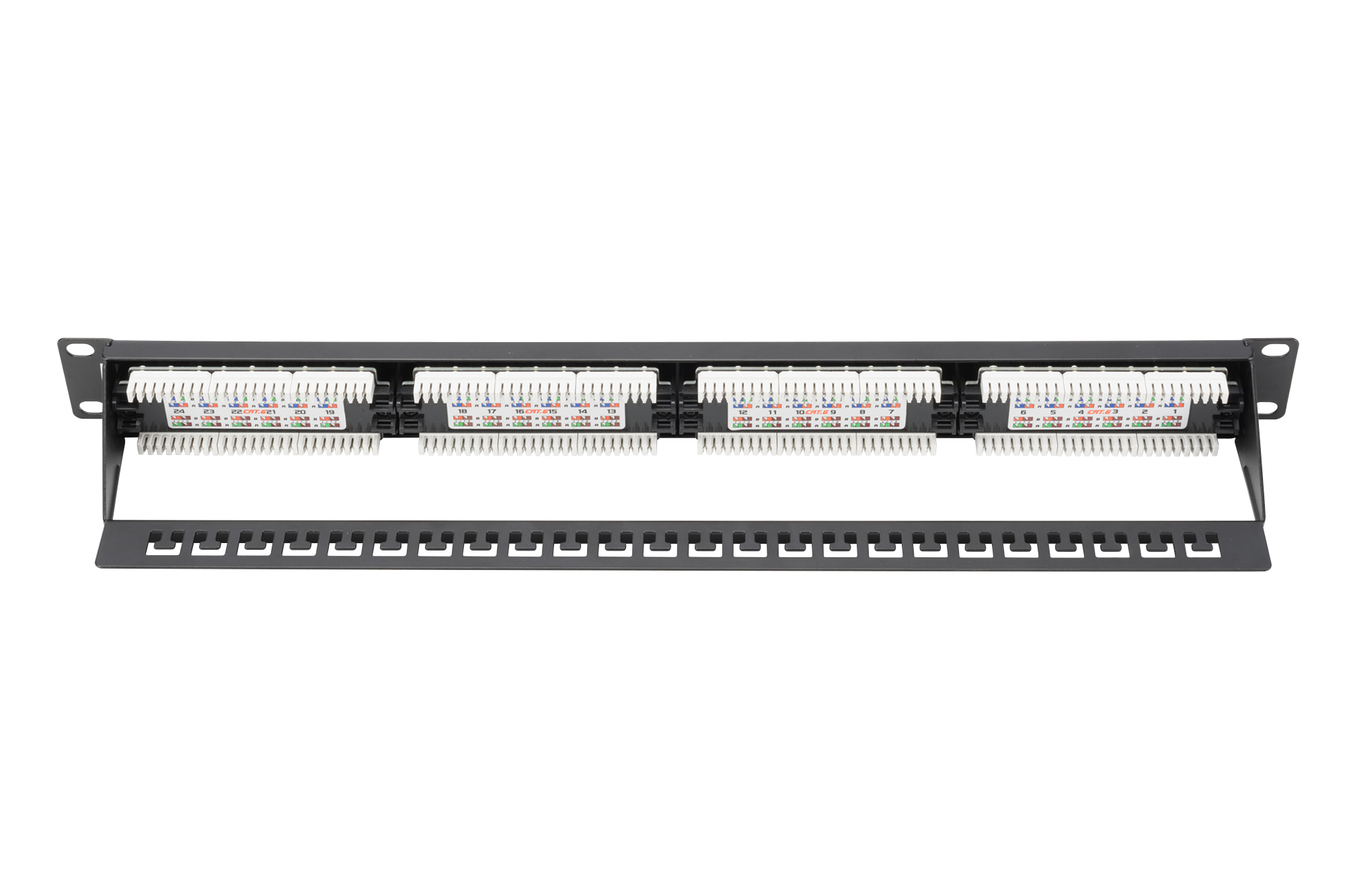

DIGITUS CAT 5e patch panel, unshielded 24-port RJ45, 8P8C, LSA, 1U, rack mount, color black RAL 9005

Future-oriented standards and high-end quality for your network.

The unshielded CAT 5e Patch Panel from DIGITUS® is available as 16- or 24-port (1 Hight unit) or 48-port version (2 Hight units).The housing is made of 1.5 mm galvanized, cold-rolled steel and is therefore perfectly suitable for 19" rack mounting.

Transmission properties: Category 5e
Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19") cabinet mounting
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Cable fixing with smart cable ties
Mechanical properties:
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Ground wire: Not included
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Mounting method: 482.6 mm (19 inch) mounting
Colour: Black
Width: 482
Height: 44
Depth: 109
RAL-number: 9005
Connection type: LSA
Screened: no
Suitable for number of connectors: 24
Category: 5E
Type of connector: RJ45 8(8)
Number of height units: 1
Number of buses/couplings: 24
