Superior performance and design Standard HDMI 2.0 cable
Supports UHD resolutions up to 4096x2160@60Hz 4:2:0 8bit
Robust PVC housing, gold plated connectors and contacts
Triple shielded cable, corrosion resistant bare copper 24AWG conductors
HDMI 2.0 compliant, 3D, 4K, 10.2Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; 10 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.

These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m.

Anthra Line HDMI cables are available in lengths from 0.3m to 20m.

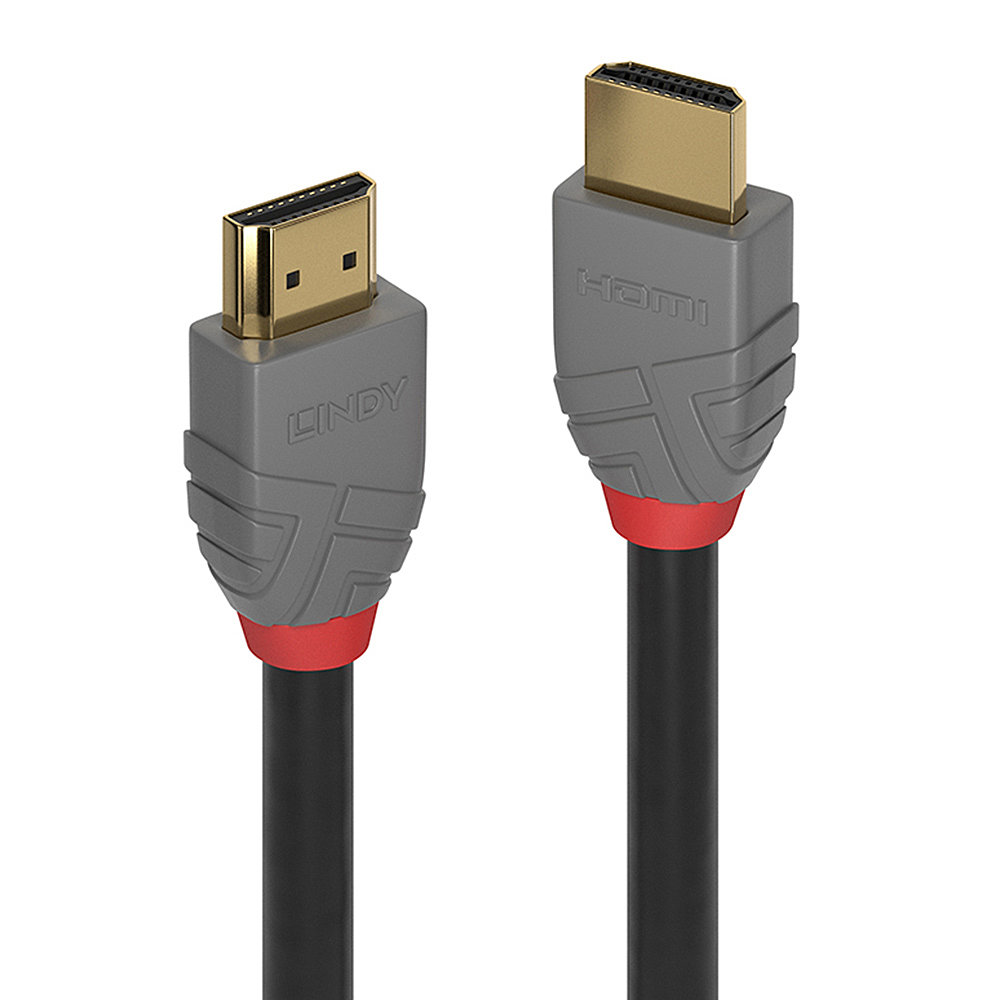

Connectors

Connector A: HDMI Type A Male
Connector B: HDMI Type A Male
Housing Material: PVC
Connector Plating: Gold
Pin Construction: Phosphor Bronze
Pin Plating: Gold
Dimensions (approx.) WxDxH: 21.4x41.44x12.7mm (0.84x1.63x0.5in)

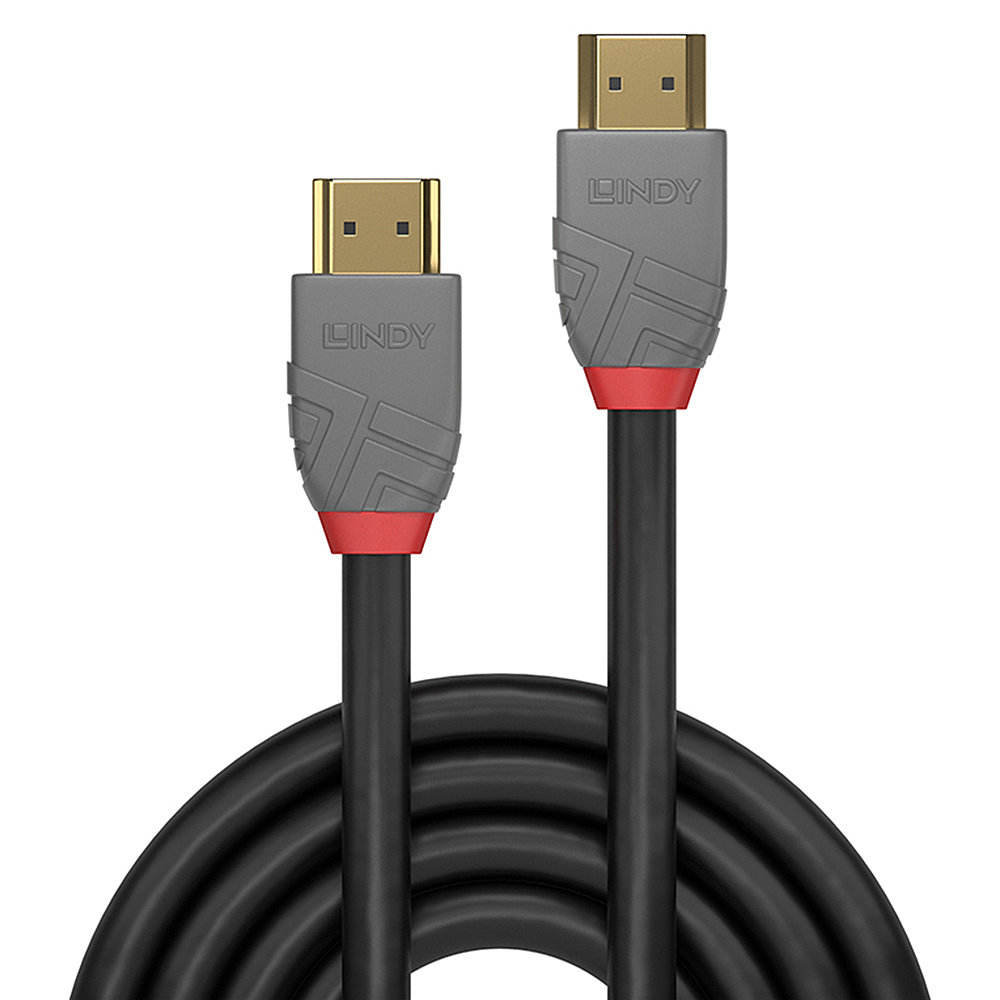

Cable Construction

Length: 20m (65.62ft)
Standard: HDMI Standard
Colour: Black
Type: Round
Jacket Diameter: 9.8mm (0.39in)
Jacket Material: PVC
Conductor Material: Bare Copper
Conductor Gauge: 24AWG
Shielding: Aluminium Magnesium Alloy 55%

Specifications

Supported Bandwidth: 10.2Gbps
Maximum Resolution: 4096x2160@60Hz 4:2:0 8bit
Nominal Attenuation:

300kHz-825MHz --- 15dB
825MHz-2.475GHz --- 15 - 29dB
2.475GHz-4.125GHz --- 29 - 44dB
4.125GHz-5.1GHz --- 44 - 48dB

Minimum Band Radius: 98mm (3.86in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

Purchasing Information

No.: 36969
EAN: 4002888369695

This product is also available in other lengths

36966 - 7.5m (24.61ft)
36967 - 10m (32.81ft)
36968 - 15m (49.21ft)
36969 - 20m (65.62ft)
