• Entry level High Speed HDMI 2.1 cable for home and small office applications
• Supports UHD resolutions up to 7680x4320@60Hz 4:4:4 10bit
• Robust PVC housing, nickel connectors, gold flashed contacts
• Triple shielded cable, corrosion resistant copper coated steel 30AWG conductors
• Supports 3D, 8K, 48Gbps, HEC, ARC, EARC CEC, Dolby® True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X;
• 10 year warranty

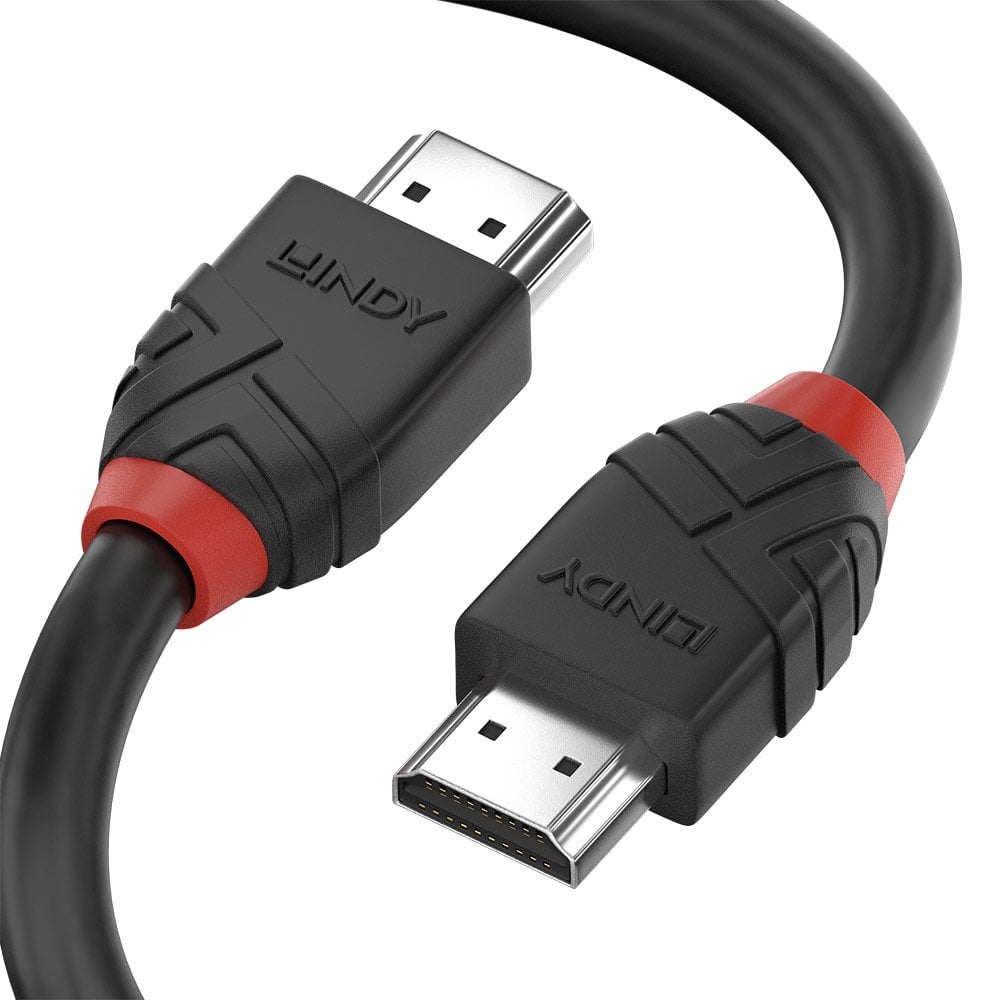

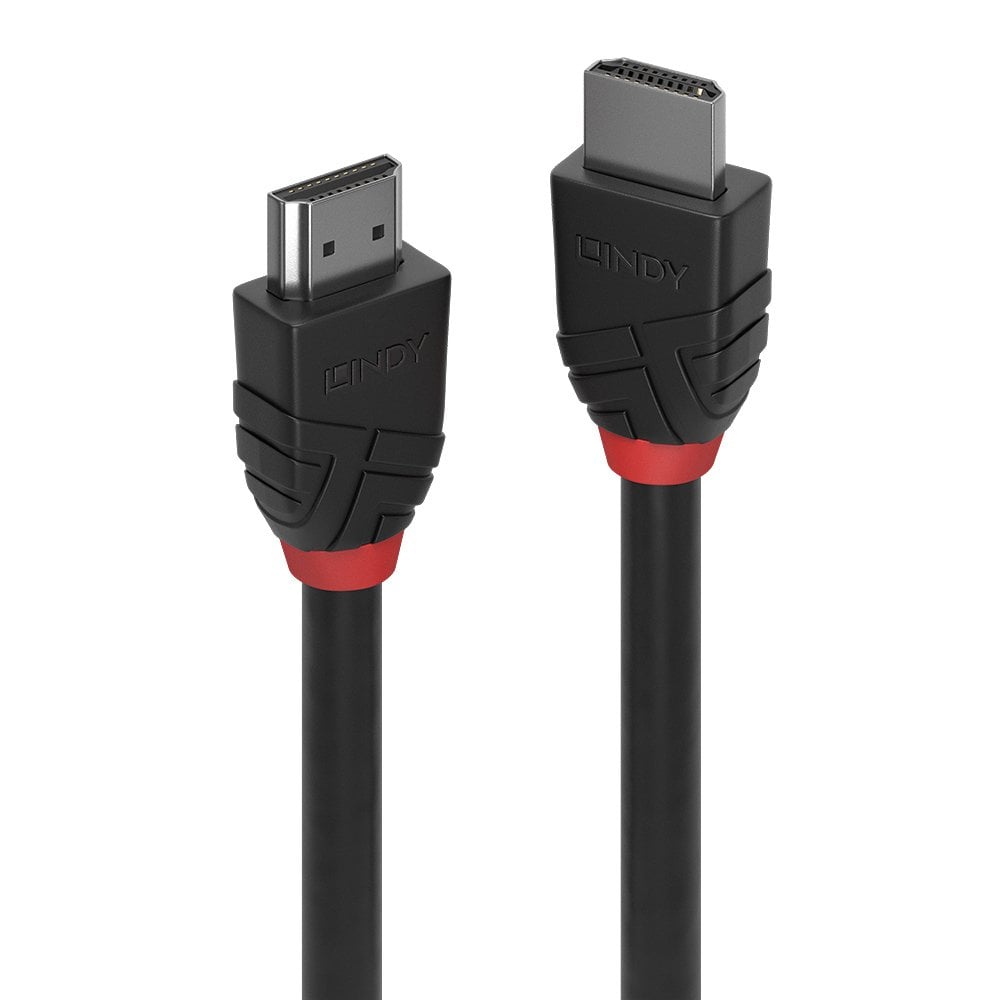

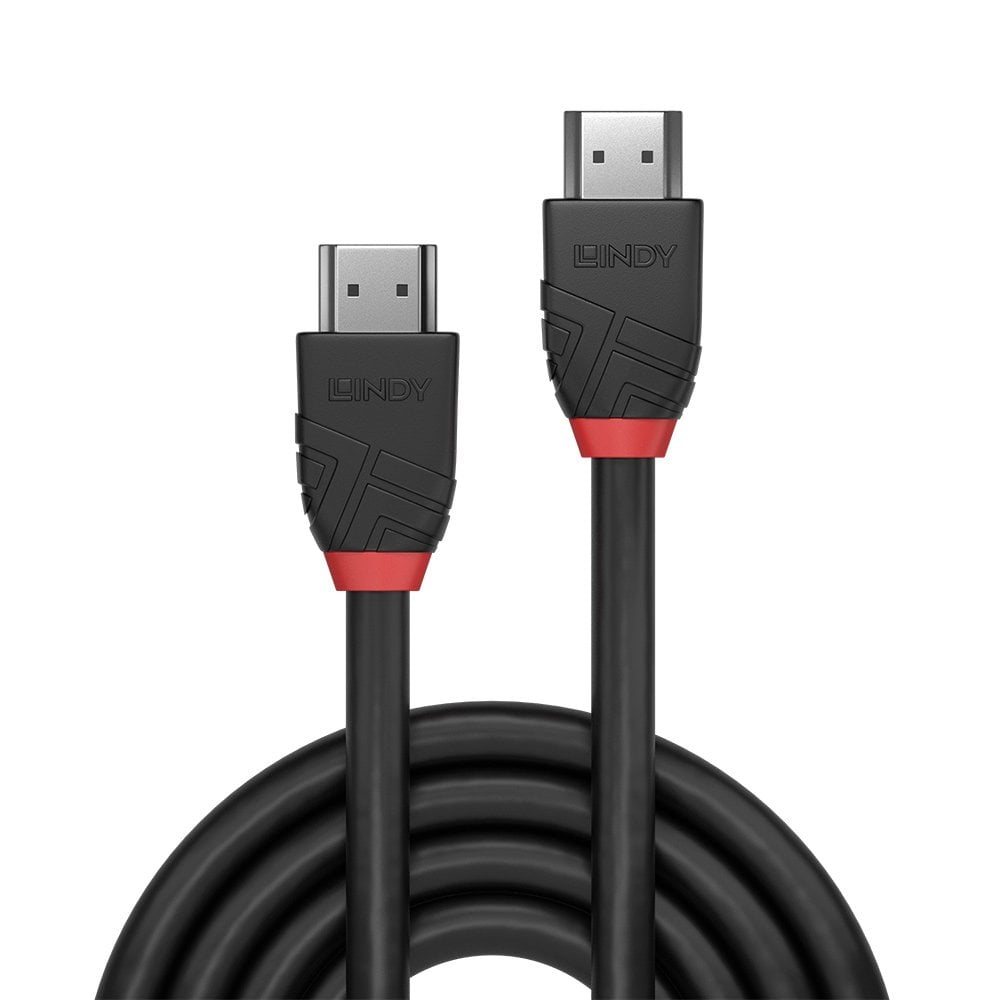

From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line 8k60hz or 4K120hz  cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.

UHD resolutions up to 7680x4320@60Hz and 3840x2160@120hz are supported. 8K Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® Atmos and DTS:X

The 8K Black line HDMI cable supports 48Gbps bandwidth capacity in cable lengths up to 5m.

Connectors

Connector A: HDMI Type A Male
Connector B: HDMI Type A Male
Housing material: PVC
Connector plating: Nickel Plating
Pin construction: Copper Alloy
Pin Plating: Gold Plated
Dimensions (WxDxH): 20 x 34.2 x 10.9mm (0.79 x 1.35 x 0.43in)

Cable Construction

Length: 1m (3.28ft)
Standard: Ultra High Speed HDMI
Colour: Black
Type: Round
Jacket diameter: 6mm (0.24in)
Jacket material: PVC
Conductor material: Copper Coated Steel
Conductor gauge: 30AWG
Shielding: Aluminum Foil

Technical Information

Supported bandwidth: 48Gbps
Maximum resolution: 7680x4320@60Hz 4:4:4,10bit
Nominal attenuation:

35GHz＞-5.5dB(HBR1)
2.7GHz＞-8.5dB(HBR2)
4.05GHz＞-11.0dB(HBR3)

Minimum bend radius: 70mm
Operating Temperature: -10°C - 80°C (14°F - 176°F)
Storage Temperature: -20°C - 85°C (-4°F - 185°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Product Compliance: RoHS &  REACH UL

Purchasing Information

No.: 36771
EAN: 4002888367714

This product is also available in other lengths

36770 - 0.5m (1.64ft)
36771 - 1m (3.28ft)
36772 - 2m (6.56ft)
36773 - 3m (9.84ft)
36774 - 5m (16.44ft)
