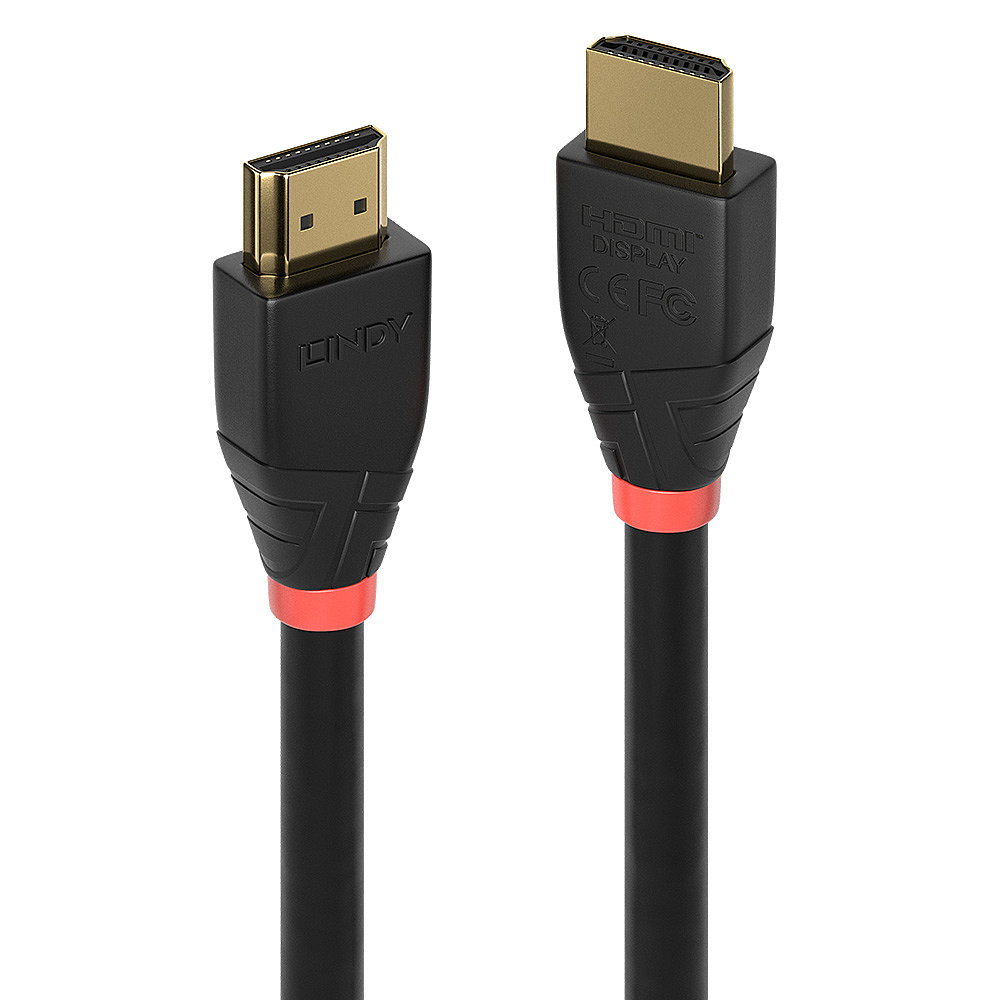

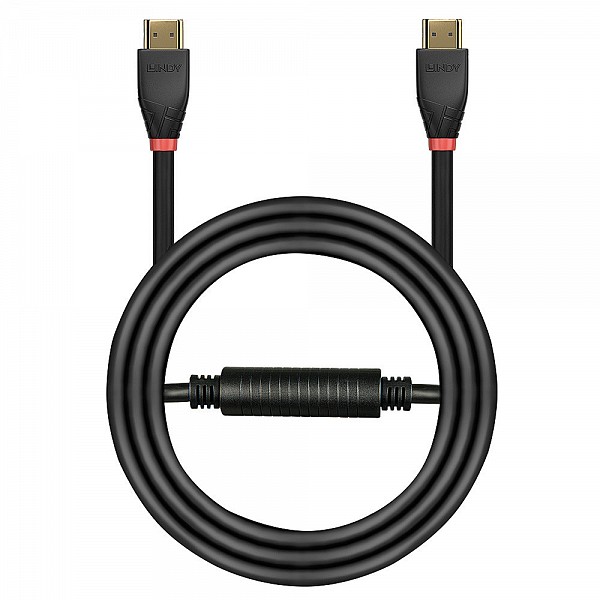

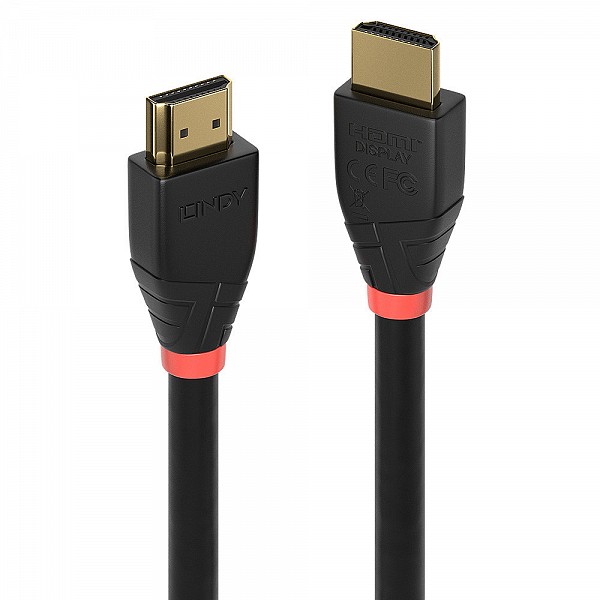

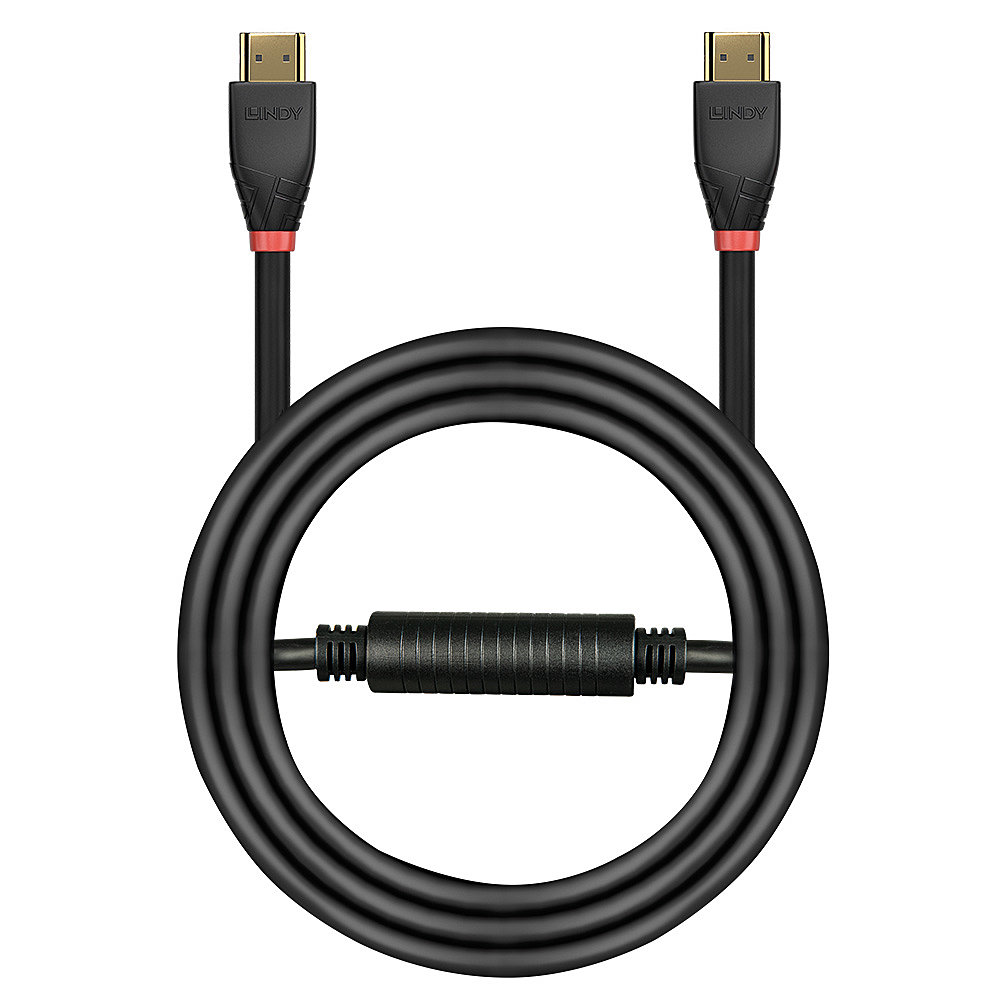

Lindy καλώδιο HDMI v.1.4 30m 4K@30Hz 10.2G Active - 41075
Κωδικός plus26: 2929-79
Κωδικός Εργοστασίου (MPN): 41075
- Creates a long distance HDMI® connection between a 4K source device and display
- Delivers reliable 4K@30Hz resolutions over longer cable distances
- Active HDMI® technology built into the connector for flexible installation
- Full support for HEC, ARC and CEC compliant devices
- 2 year warranty
Lindy_s Active HDMI® 10.2G cables combine sleek, modern design with superior performance to provide high quality, reliable HDMI® transmission over long distances. Lindy's range of active cables come with an in-built chipset that amplifys the users signal to create a much longer HDMI® transmission that isnt possible with standard passive HDMI® cables, while also avoiding the need for additional expensive extenders or repeaters.
With the active chipset built discreetly into the stylishly designed headshell, these cables can easily be installed through conduit or tighter spaces. These premium cables also support the full 10.2G HDMI® bandwidth to display 4096x2160@30Hz resolutions.
Complying to the HDMI® 1.4 cable specification, these cables are ideal for use with a variety of source devices including set-top boxes, HDMI® media players or PCs when connected to modern displays or projectors. Perfect for use in eye-catching retail displays, informational digital signage or immersive video playback in sports bars, music venues or high end home cinemas.
With support for a range of multi-channel audio formats, including Dolby True HD and DTS-HD Master Audio, these cables also ensure an impressive three-dimensional surround sound performance when connected to an amplifier's speaker system. CEC functionality also allows many of the source device's settings to be controlled via the display or projectors controls to provide a simple and effective control solution, while avoiding the necessity for several remote controls.
Lindy's active cables should be connected in accordance with the instructions for the optimum experience. The connector marked _display_ must be connected to the monitor or screen. Failure to connect the cable in the correct manner will result in no signal. Some projectors have recessed HDMI® sockets, please ensure they can accommodate the connector used on this cable.Active HDMI® cables cannot be connected together or _daisy chained_.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Connectors
Connector A: HDMI® Type A Male
Connector B: HDMI® Type A Male
Housing Material: ABS
Connector Plating: 24K Gold Flash
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 3µm
Dimensions WxDxH (approx.): 21.68x43x13.22mm (0.85x1.69x0.52in)
Cable Construction
Length: 30m (98.42ft)
Standard: 1.4
Colour: Black
Type: Round
Jacket Diameter: 8.0mm (0.31in)
Jacket Material: PVC
Conductor Material: Bare Copper
Conductor Gauge: 26AWG
Shielding: Aluminium Foil Mylar, 100% / Aluminium Alloy Braiding, 70%
Specifications
Supported Bandwidth: 10.2Gbps
Maximum Resolution: 4096x2160@30Hz 4:4:4 8bit
Nominal Attenuation:
300KHz~825MHz <5dB
2.475GHz~4.125GHz 12dB-20dB
Minimum Bend Radius: 100mm (3.94in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -10°C - 60°C (14°F - 140°F)
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 2
Product Compliance: CE, UKCA, FCC, RoHS, REACH & UL
Purchasing Information
No: 41075
EAN: 4002888410755
This product is also available in other lengths
41071 - 10m (32.81ft)
41072 - 15m (49.21ft)
41073 - 20m (65.62ft)
41074 - 25m (82.02ft)
41075 - 30m (98.42ft)
Στείλτε μια ερώτηση για το προϊόν
Οι τιμές ενδέχεται να αλλάξουν χωρίς προηγούμενη ειδοποίηση.
Η δέσμευση τιμών ισχύει μόνο μέσω ηλεκτρονικής παραγγελίας και της επιβεβαίωσής της.
Οι φωτογραφίες και τα βίντεο των προϊόντων είναι ενδεικτικά και μπορεί να διαφέρουν από το τελικό προϊόν.
Δεν γίνονται δεκτές επιστροφές προϊόντων που έχουν παραγγελθεί κατόπιν αιτήματος.
Η παράδοση των RACK πραγματοποιείται στην είσοδο του κτιρίου.

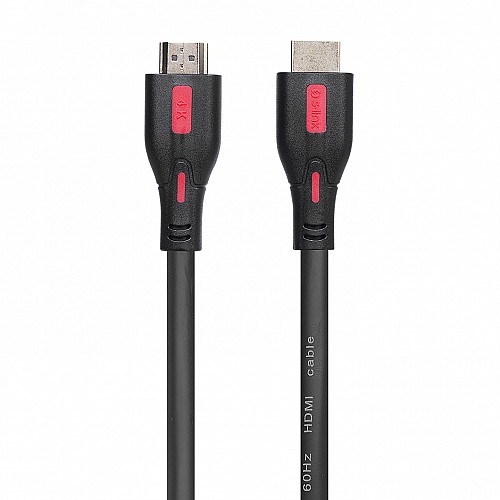

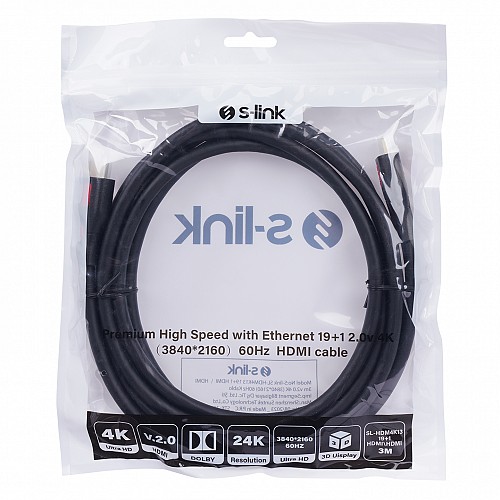

S-Link καλώδιο HDMI 3m v2.0 4K (3840x2160@60Hz)
