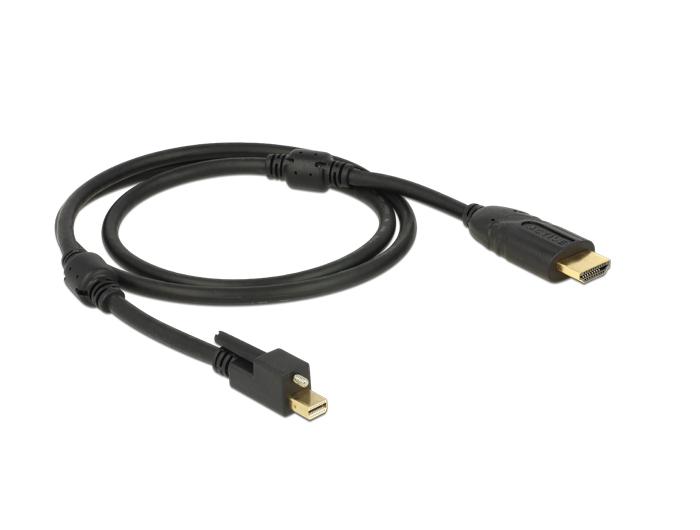

This cable enables you to connect a HDMI monitor through a free mini DisplayPort interface. The cable supports a resolution up to Ultra HD (4K) and is backward compatible to Full-HD 1080p. The screw of the mini DisplayPort connector secures the connection and prevents accidental unplugging of the cable.

Specification

Connector:
mini DisplayPort 20 pin male with screw >
HDMI-A 19 pin male
Input = mini DisplayPort; Output = HDMI
Screw type: #4-40, thread type UNC, thread class 3A, American Standard Screw
Chipset: Parade PS176
DisplayPort 1.2 and High Speed HDMI specification
Cable gauge: 32 AWG
Cable diameter: ca. 5.5 mm
Gold-plated connector
Active cable, for graphics cards with DP and DP++ output
Transfer of audio- and video signals
Supports a resolution up to 4K (4096 x 2160 pixel @ 24 Hz or 3840 x 2160 pixel @ 30
Hz) - depending on the system and the connected hardware
Supports 3D displays (1080p @ 120 Hz)
Supports HDCP 1.3
Supports Eyefinity
Audio input formats: 8-channel LPCM, compressed audio (AC-3, DTS) and HBR audio
format up to 24 Bit audio sample size and 192 kHz sample rate
2 x ferrite core
Cable length: ca. 2 m (incl. connector)
Colour: black
OS independent, no driver installation necessary

System requirements

A free mini DisplayPort female port

Package content

Cable mini DisplayPort to HDMI

Package

Zip poly bag
