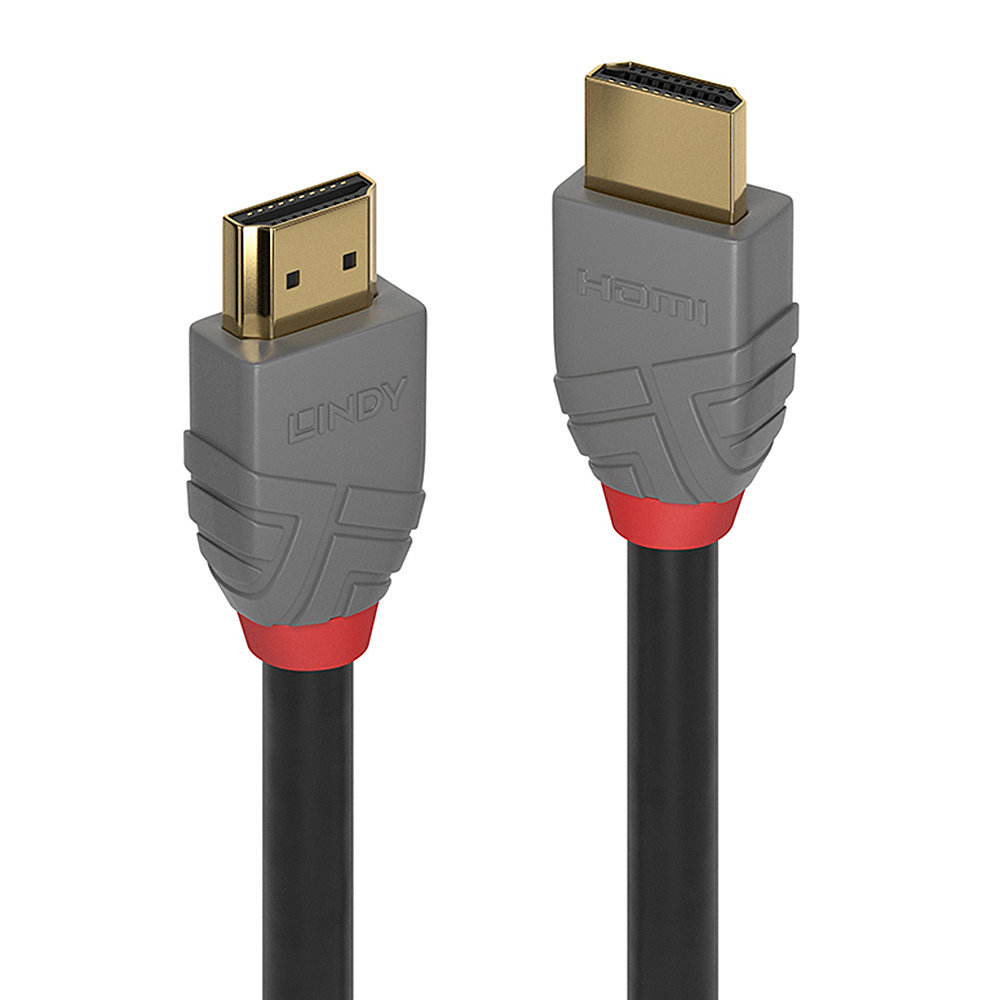

Professional choice High Speed HDMI 2.0 cable for commercial and high performance AV and IT installations
Supports UHD resolutions up to 4096x2160@60Hz and HDTV resolutions up to 1080p
Robust PVC housing, 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; HDMI ATC certified
10 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.

The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.

Anthra Line HDMI cables are available in lengths from 0.3m to 5m.

Connectors

Connector A: HDMI Type A Male
Connector B: HDMI Type A Male
Housing Material: PVC
Connector Plating: 24K Gold 3µm
Pin Construction: Phosphor Copper
Pin Plating: 24K Gold 3µm
Dimensions (approx.) WxDxH: 20x34.2x10.9mm (0.79x1.35x0.43in)

Cable Construction

Length: 5m (16.4ft)
Standard: High Speed HDMI with Ethernet
Colour: Black
Type: Round
Jacket Diameter: 7.3mm (0.29in)
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge: 28AWG
Shielding: Copper Braid, 65%

Specifications

Supported Bandwidth: 18Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
Nominal Attenuation:

300kHz-825MHz <5dB
825MHz-2.475GHz <5dB
2.475GHz-4.125GHz <12dB
4.125GHz-5.1GHz <20dB

Minumum Band Radius: 48mm (1.89in)
Operating Temperature: -30°C - 80°C (-22°F - 176°F)
Storage Temperature: -10°C - 85°C (14°F - 185°F)
ATC Approved: Yes

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL, ATC

Purchasing Information

No.: 36965
EAN: 4002888369657

This product is also available in other lengths

36960 - 0.3m (0.98ft)
36961 - 0.5m (1.64ft)
36962 - 1m (3.28ft)
36963 - 2m (6.56ft)
36964 - 3m (9.84ft)
36965 - 5m (16.44ft)
