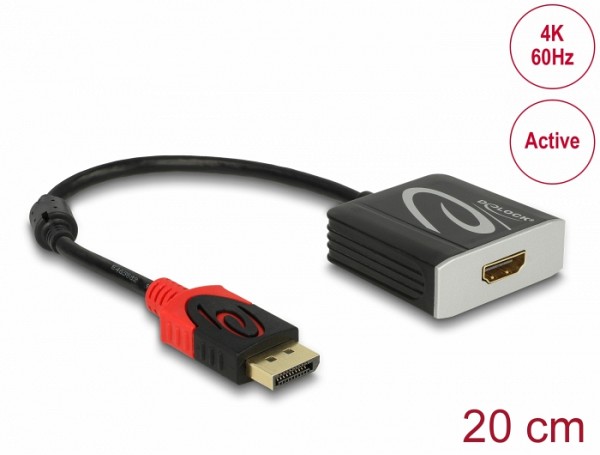

Delock ADAPTER DISPLAY PORT 1.2 M/ HDMI F 4K/60Hz Active 62734

Κωδικός plus26: 476-22

Κωδικός Εργοστασίου (MPN): 62734

Εγγραφείτε για τιμή

This adapter by Delock enables the connection of an HDMI monitor to the system via a free DisplayPort interface. The adapter supports a resolution up to 4K Ultra HD at 60 Hz and is backward compatible to Full-HD 1080p. The adapter offers an active conversion, thus it is also suitable for graphics cards that are not capable of outputting DP++ signals.

Connectors:

1 x DisplayPort 20 pin male >
1 x HDMI-A 19 pin female
Chipset: Parade PS176
DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification
Active converter, for graphics cards with DP and DP++ output
Resolution up to 4096 x 2160 @ 60 Hz (depending on the system and the connected
hardware)
Transmission of audio and video signals
Supports 3D displays
Supports HDCP 1.4 and 2.2
Supports Eyefinity
Supports HBR2 (5.4 Gbps) data rate
Audio formats: 8-channel LPCM, compressed audio and HBR audio format up to 24 Bit
audio sample size and 192 kHz sample rate
Connectors: gold-plated
1 x ferrite core
Cable length without connectors: ca. 20 cm
Colour: black
OS independent, no driver installation necessary

System requirements

A free DisplayPort female

Package content

Adapter DisplayPort to HDMI

Package

Retail Box

Here you can find information about DisplayPort

Here you can find information about HDMI

Here you can find information about Ultra-HD / 4K

Specification
• DisplayPort 1.2
• High Speed HDMI with Ethernet
• HDCP 1.4
• HDCP 2.2
Supported operating system
• OS independent, no driver installation necessary
Interface
Output
• 1 x HDMI-A 19 pin female
Input
• 1 x DisplayPort 20 pin male
Technical characteristics
Chipset
• Parade PS176
Converter type
• active
Maximum screen resolution
• 4096 x 2160 @ 60 Hz
Signal transmission
• video
• audio
Physical characteristics
Ferrite core
• 1 x
Cable length
• 20 cm
Connector finishing
• gold-plated
Colour
• black
