PRODUCT DETAILS

• Converts a DisplayPort signal to HDMI, DVI or VGA
• Supports HDMI resolutions up to 4K@30Hz, VGA up to Full HD and DVI up to and above Full HD
• Easily connect with a single legacy or modern display at any one time
• Compact, portable design
• 2 year warranty

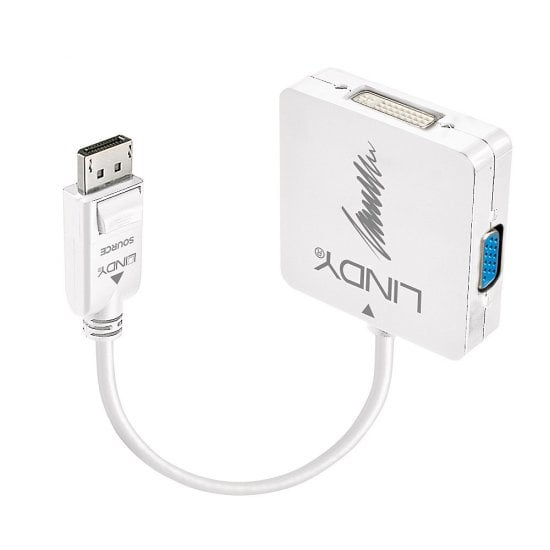

The Lindy DisplayPort to HDMI, DVI and VGA Converter allows users to connect either a HDMI, DVI or VGA screen to a Displayport source. Supporting 4K resolutions up to 3840x2160@30Hz on HDMI displays, content can be viewed with superior clarity and stunning accuracy. DVI monitors are supported with a maximum resolution of 1920x1200@60Hz, VGA monitors and projectors up to 1920x1080@60Hz.

With its lightweight, low profile design, this converter easily fits into a notebook bag and simply expands available connectivity options, so users can connect to the most commonly used digital and analogue video equipment, without having to carry multiple adapters - ideal for BYOD applications.

Specifications

• AV Interface: DisplayPort to HDMI, VGA, DVI
• Interface Standard: DisplayPort 1.2, HDMI 1.4, VGA, DVI-D
• Supported Bandwidth: 21.6Gbps
• Maximum Input Resolution: 3840x2160@30Hz
• Maximum  Output Resolution:
  • VGA: 1920x1200@60Hz
  • HDMI: 3840x2160@30Hz
  • DVI: 1920x1200@60Hz
• Chipset: Paradetech PS8339
• HDCP Support: HDCP 1.4
• Supported Audio: Pass-through for HDMI
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: DisplayPort Male
• Output:
  • HDMI Type A Female
  • VGA Female
  • DVI-D Female

Physical Properties

• Dimensions (approx.) WxDxH: 60x60x16.4mm (2.36x2.36x0.65in) / Housing 20x44.5x11mm (0.79x1.75x0.43in)
• Cable Length: 200mm (7.87in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 6mm (0.24in)
• Minimum Bend Radius: 60mm (2.36in)
• Net Weight: 0.053kg (0.12lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 10 - 85% RH (non-condensing)
• Colour: White

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.076kg (0.17lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS & REACH

Package Contents:

• DisplayPort 1.2 to HDMI 1.4, DVI & VGA Active Converter

Purchasing Information

• No. 41028
• EAN: 4002888410281
