•     Superior video quality - up to 2048 x 1536; DDC2B
•     One USB-PS/2 console controls up to 8 computers; Daisy-chain up to 31 additional units - control up to 256 computers from a single console
•     Broadcast Mode - operation simultaneously performed on all selected computers... etc
•     Video DynaSync™ - stores the console monitor EDID to optimize display resolution

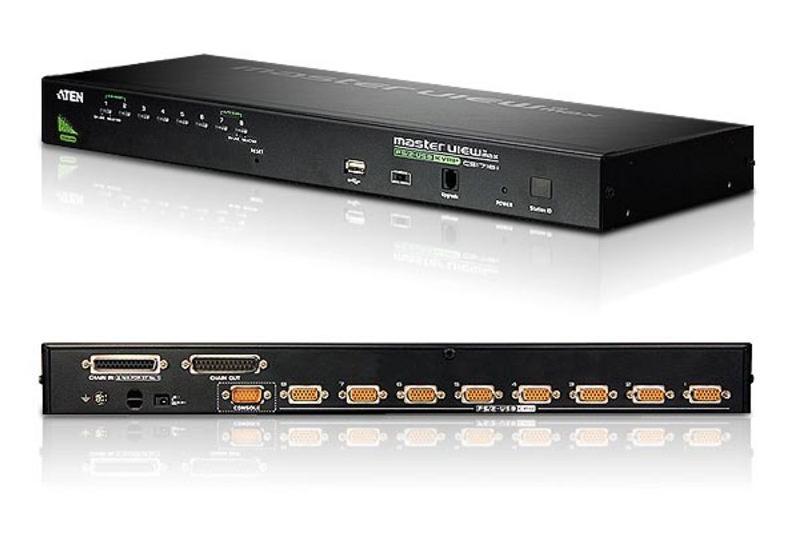

The CS1708A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1708A can control up to 8 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 256 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.

Package Contents

    1x KVM Switch with Standard Rack Mounting Kit
    1x 2L-5202P PS/2 KVM Cable
    1x 2L-5202U USB KVM Cable
    1x LIN5-27X6-U21G Console Cable
    1x Firmware Upgrade Cable
    1x Foot Pad Set(4 PCS)
    1x 0AD6-1605-24EG Power Adapter
    1x User Instructions

•     One USB-PS/2 console controls up to 8 computers
•     Daisy-chain up to 31 additional units - control up to 256 computers from a single console
•     Front accessible USB port allows each computer to access USB peripherals *
•     Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
•     Multiplatform support - Windows, Linux, Mac and Sun
•     Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
•     Supports USB keyboards for PC, Mac and Sun
•     Auto PS/2 and USB interface detection
•     USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
•     Superior video quality - up to 2048 x 1536; DDC2B
•     No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
•     Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
•     Port names automatically reconfigured when station sequence is changed
•     Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each
•     Auto Scan feature for monitoring user-selected computers
•     Broadcast Mode - operation simultaneously performed on all selected computers... etc
•     Hot pluggable - add or remove computers without having to power down the switch
•     Buzzer on/off via hotkey and OSD
•     Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable
•     Rack mountable in 19" system rack (1U)

    * The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
