ATEN KVM 8PORT IP OSD 19' (RJ 45 PORT) KH1508Ai

Κωδικός plus26: 173-356410

Κωδικός Εργοστασίου (MPN): KH1508Ai/6031

Εγγραφείτε για τιμή

The KH1508Ai Cat 5 High-Density KVM over IP Switch offers 8 computer port configurations in a 1U-high housing for convenient rack mounting. They allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser.

The KH1508Ai features RJ-45 connectors and Cat 5e/6 cable to link to the computers and supports multiplatform. This ensures that high quality signals can travel over long distance - up to 50m* without the need for KVM extenders. Utilizing KVM Adapter Cables for the final linkup, the KH1508Ai permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

In addition to TCP/IP connectivity, the KH1508Ai provides console ports for a locally attached USB or PS/2 console and a Laptop USB console (LUC) – allowing access and control from the data center as well as over the Net.

These switches have been designed with unique and powerful features for that enable administrators to manage their entire server room and data center devices easily and conveniently from just about anywhere in the world.

A special Message Board feature - which like an internet chat program - lets any number of remotely logged in users exchange information and communicate with each other or to cooperatively manage the installation. A Panel Array Mode™ allows monitoring of up to 8 servers at once. Other features that contribute to the switches' powerful capabilities include: Mouse DynaSync™, and Adapter ID.

With ATEN KVM over IP Switches, IT administrators can manage their server rooms and data centers from practically anywhere - minimizing travel costs and MTTR (Mean Time to Repair) – and ensuring the highest availability of data center services possible.

Hardware
High port density – RJ-45 connectors for up to 8 ports in a 1U housing
A dedicated USB port directly connects to a laptop for easy Console operation
One bus for remote KVM over IP access
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides PS/2 and USB keyboard and mouse support
Multiplatform support - Windows, Mac, Sun and Linux
Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60 Hz* up to 30 meters, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
Daisy-chain up to 15 additional units – control up to 128 computers from a single console

* With KVM Adapter Cable KA71xx or KA75xx series

Management
Up to 64 user accounts
Up to 32 concurrent logins
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Local Log Event
Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch
Port Share Mode allows multiple users to gain access to a server simultaneously
Integration with ATEN CC2000 Management software
Power Over the NET™ integration for remote power control
Firmware upgradeable
IPv6 capable

Easy-to-Use Interface
Local Console, Browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
Browser-based UI in Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
Panel Array Mode™
Keyboard broadcast – keyboard input can be duplicated on all the attached servers

Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
IP/MAC Filter for enhanced security protection
Configurable user and group permissions for server access and control

Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen or scalable video display
Message Board for communication among remote users
Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
On-screen keyboard with multilanguage support
Exit Macros support
BIOS-level access

Computer Connections
Direct 8
Maximum 128 (via Daisy-chain)
Port Selection OSD; Hotkey; Pushbutton

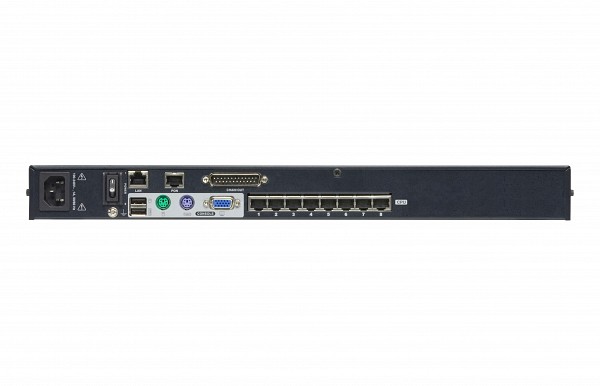

Connectors
Console Ports 2 x USB Type-A Female (White)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)
KVM Ports 8 x RJ-45 Female
Daisy Chain Ports 1 x DB-25 Male
Power 1 x IEC 60320/C14
LAN Ports 1 x RJ-45 Female
Firmware Upgrade 1 x RJ-11 Female
PON 1 X RJ-45 Female
Laptop USB Console (LUC) Port 1 x USB Mini-B Female

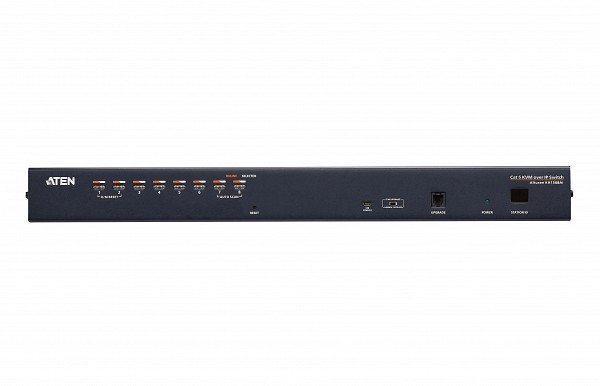

Switches
Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker
Port Selection 8 x Pushbutton
LEDs
Online 8 (Green)
Selected 8 (Orange)
Power 1 (Blue)
Station ID 1 x 2-digit 7-segment (Orange)
Link 1 (Orange)
10/100/1000 Mbps non-FHD:10/100 Mbps (Orange / Green)
FHD:100/1000 Mbps (Orange / Green)
Emulation
Keyboard / Mouse PS/2; USB
Video
Local 1600 x 1200 @ 60Hz (non-FHD version)
1920 x 1200 @ 60Hz (FHD version)
Remote 1600 x 1200 @ 60Hz (non-FHD version)
1920 x 1200 @ 60Hz (FHD version)
Scan Interval 1–255 secs
Maximum Input Power Rating 100–240 VAC; 50/60 Hz; 1A
Power Consumption AC110V:8.7W:49BTU
AC220V:8.7W:49BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0–80% RH; Non-condensing
Physical Properties
Housing Metal
Dimensions (L x W x H) 43.72 x 16.36 x 4.40 cm
(17.21 x 6.44 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
