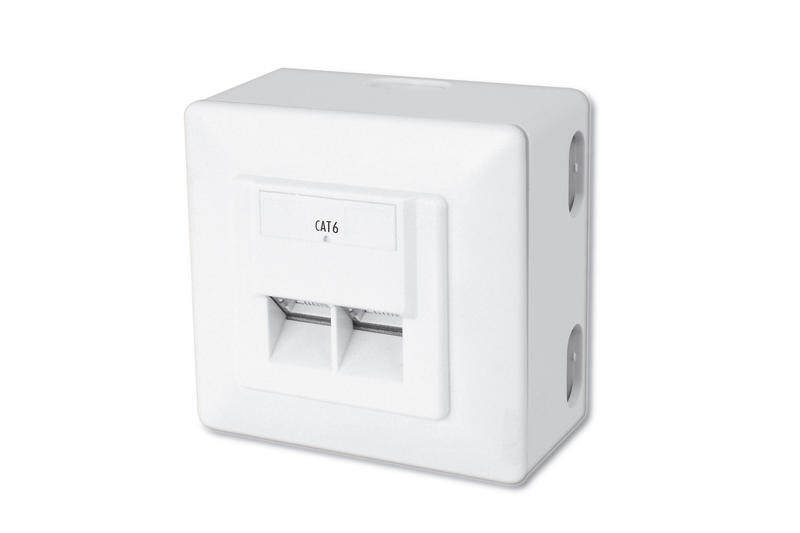

CAT 6 wall outlet, shielded, 2x RJ45 8P8C, LSA, pure white, surface mount

Future-oriented standards and high-end quality for your network.

• Surface mount design and horizontal cable entry provide a neat and easy accessable installation
• Ensured safety due to completely shielded RJ45 sockets and LSA strips
• The sockets are angled by 40° which makes the plug in of patch cables very easy

Technical Details

• Transmission property: Category 6
• Area of application: Up to 250 MHz, 1GBase-T
• Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• General properties:
• Suitable for installation in trunking, surface and flush mount
• RJ45 female, 8P8C
• Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
• Integrated strain relief for installation cables
• Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing
• Strain relief 40°-angled female for patch cord
• Central plate: 50 x 50 mm
• Frame: 80 x 80 mm
• Central plate with integrated dust covers
• Design compatible to common switch ranges
• Technical properties:
• Housing material: Die-cast metal
• RJ45 female material: ABS UL 94V-0
• RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
• RJ45 shielding: Tinned bronze
• LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
• Conductor plate: FR4, UL 94V-0
• Physical properties:
• Insertion force: 30N max. (IEC 60603-7-5)
• Retention strength: 7.7 kg between jack and plug
• Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
• Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
• IDC wire size: 22 – 26 AWG solid and stranded conductor
• Insulation resistance: > 500 MOhm
• Contact resistance: < 20 MilliOhm
• Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
• Not compatible with R&M freenet patch cords
• USB-C Products: no

Package content

• Outlet
• Mounting instruction
