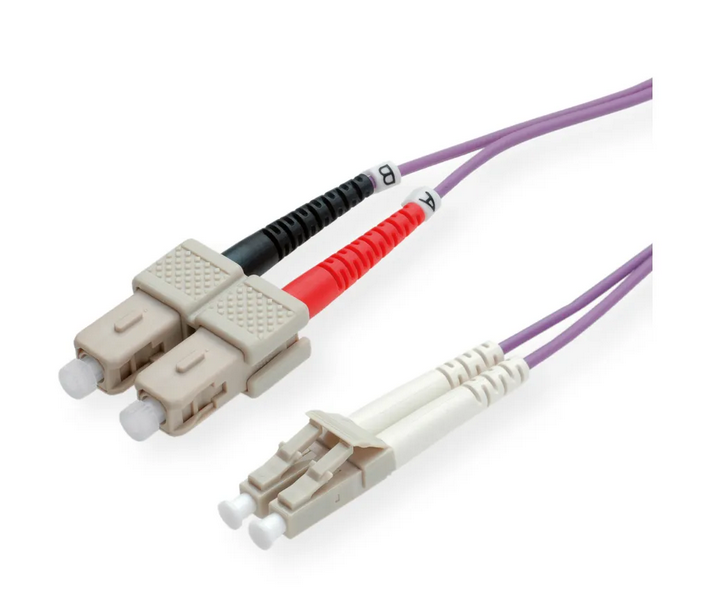

ROLINE Fibre Optic Jumper Cable, 50/125µm, LC/SC, OM4, violet, 2 m
Κωδικός plus26: 173-463357
Κωδικός Εργοστασίου (MPN): 21.15.8762-10
- ROLINE Fiber-Patchcable in OM4 quality for a high performance glas cabling
- OM4 fiber is a 50 µm laser-optimized fiber with extended bandwidth. It will be used to enhance the system performance for existing 1 and 10 Gbit/s applications as well as future 40 and 100 Gbit/s systems.
- OM4 fiber will support Ethernet, Fibre Channel, and OIF applications, allowing extended reach upwards of 550 meters at 10 Gbit/s for ultra long building backbones and medium length campus backbones. With an laser bandwidth of 4700 MHz-km (more than double the IEEE requirement for 10 Gbit/s 300 meter support), the OM4 fiber is also especially well suited for shorter reach in data centers and high performance computing applications.
- In use at low data rates such as 100 Mbit/s or 1 Gbit/s, OM4 is on par with the OM2 or OM3 fibers. The OM4 fiber shows their true strengths at data rates of 10 Gbit/s and 40 Gbit/s with ranges of 550 meters or 300 meters.
- The quality of the connectors and fibres and an optimal assembly procedure lead to extremely good characteristics in respect of insertion loss and reflection
- These Fibre Optic Jumper cables are duplex cables with fiber type 50/125 µm
- Color: Violet
- Manufacturer ROLINE
- Product group Fibre optic cable
- Product type Fibre Optic Jumper Cables OM4
- Colour violet
- Length 2 m
- Quantity of fibre 2
- Conductor composition Compact conductor
- Cable type Duplex Cable
- External cable no
- Fibre section Multi mode 50/125µm OM4
- Connection ports LC / SC
- Side 1 Connector Type LC
- Side 2 Connector Type SC
- Colour (Cable) violet
- Aramid strain relief yes
- External cable diameter 2,8x6 mm
- Mantle of external cable PVC
- Cable LSOH no
- Max. insertion loss 0.3 dB
- Operating temperature min. -20 °C
- Operating temperature max. 70 °C
- Storage temperature min. -40 °C
- Storage temperature max. 80 °C
- Weight 22.7 g
- Height of packaging (single piece) 10 mm
- Width of packaging (single piece) 200 mm
- Depth of packaging (single piece) 200 mm
- Package weight (single piece) 0.04 kg
