WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n
Frequency 2.4 GHz
Signal Rate 300 Mbps
Reception Sensitivity 11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm
Transmit Power < 20 dBm (2.4 GHz)
Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
WAN Failover Yes
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES
Security IPv4 SPI Firewall, IP and MAC Address Binding
Operating Modes 3G/4G Router, Wireless Router
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, NO-IP
Protocols IPv4, IPv6
Guest Network 2.4 GHz Guest Network
Administration Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHERS
Certification CE, RoHS
Package Contents 300 Mbps Wireless N 4G LTE TL-MR100
Τροφοδοτικό
Καλώδιο RJ45 Ethernet
Οδηγός γρήγορης εγκατάστασης
Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Micro SIM Card
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

HARDWARE FEATURES

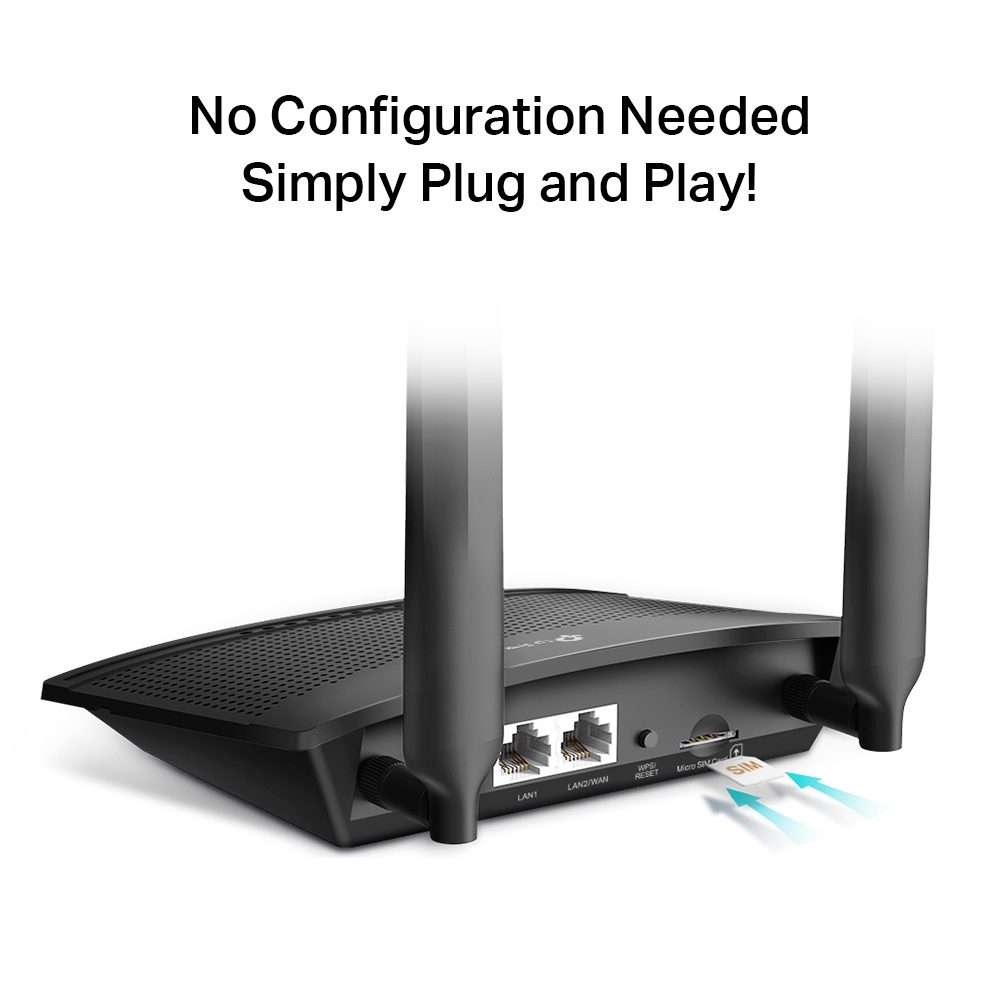

Interface 1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,
1 Micro SIM Card Slot
Button WPS/Reset Button
External Power Supply(EU) 9V/0.85A
Dimensions ( W x D x H ) 6.06×4.49×1.42 in ( 154×114×36 mm)
Antenna 2 Αποσπώμενες εξωτερικές κεραίες 4G LTE
