HARDWARE
Ethernet Ports 2 × Gigabit ports per Deco unit
(PoE and WAN/LAN auto-sensing)

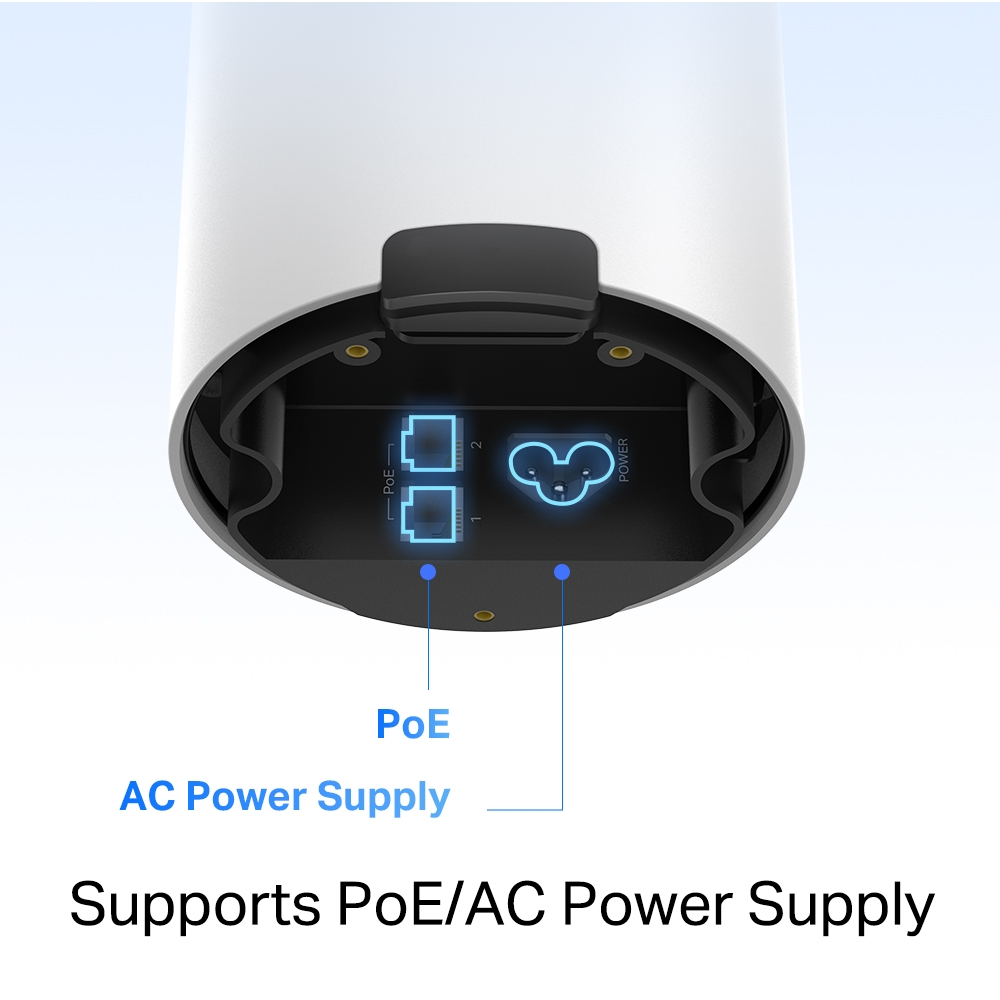

Power Power Input
IEEE 802.3at PoE or 100-240V~50/60Hz 0.5A AC

SECURITY
Network Security SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Wi-Fi Security WPA/WPA2/WPA3

SOFTWARE
Protocols IPv4
IPv6
Service Kit HomeShield
Learn More>
WAN Types Dynamic IP
Static IP
PPPoE
L2TP
PPTP
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App

TEST DATA
WiFi Transmission Power FCC: <30 dBm(2.4 GHz), <30 dBm(5 GHz)
CE: <20 dBm (2.4 GHz), <30 dBm (5 GHz)

PHYSICAL
Dimensions (W×D×H) 4.3 × 4.8 × 8.5 in (110 × 121.3 × 215.5 mm)

OTHERS
Certification CE, FCC, RoHS

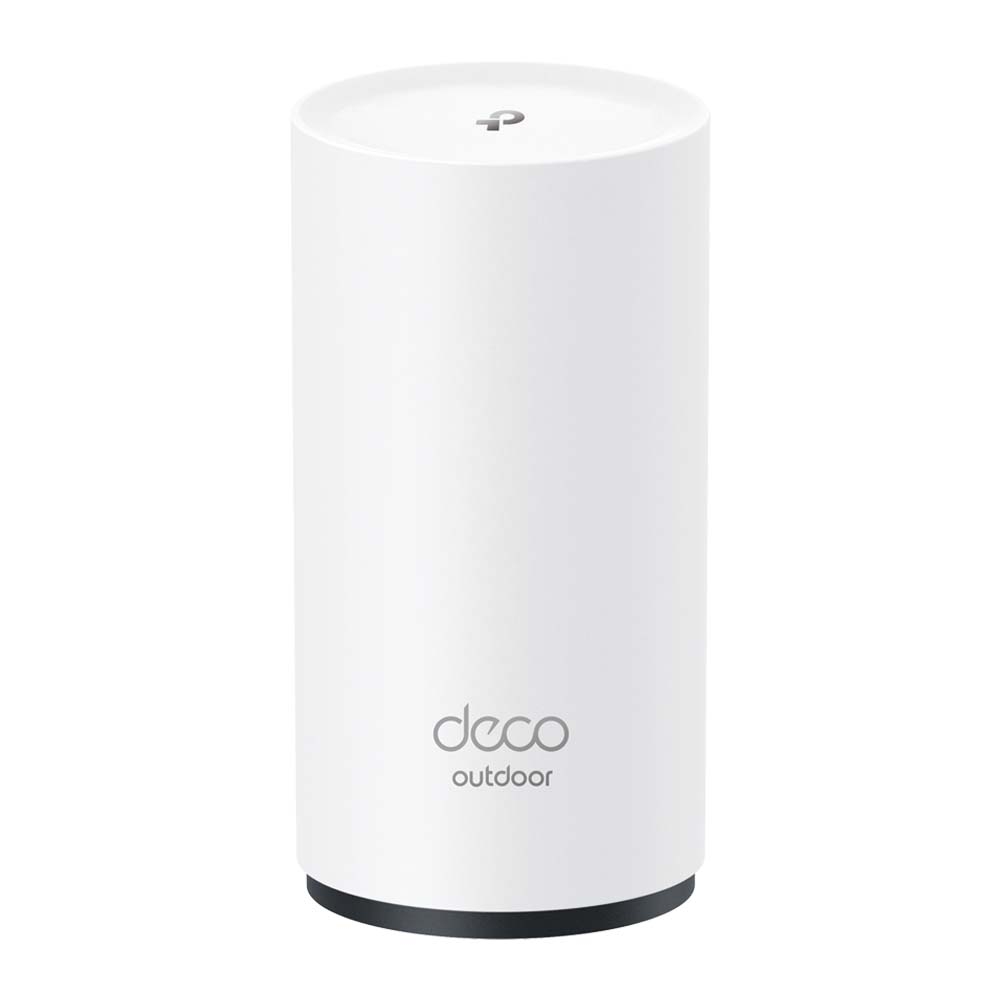

Package Contents 1 × Deco X50-Outdoor unit
1 × AC Power Cord
1 × RJ45 Ethernet cable

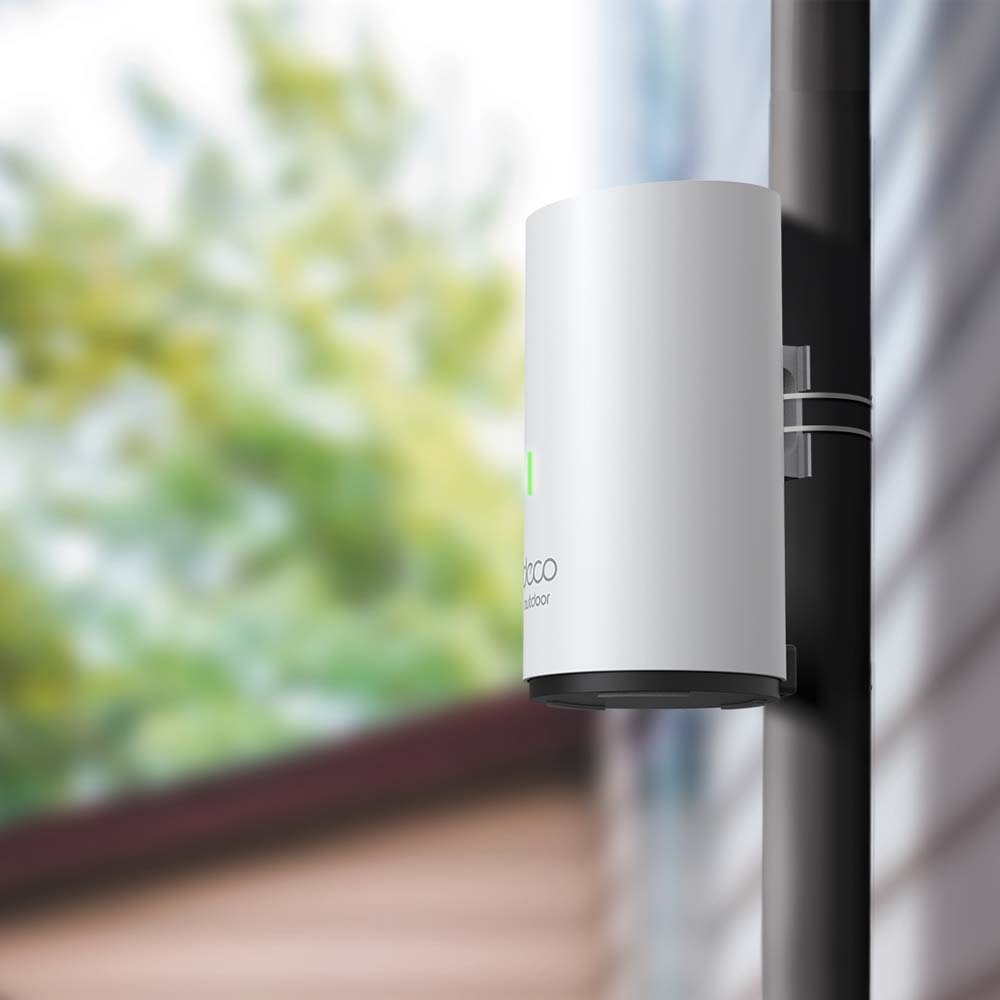

Wall/Pole Mounting Kit
Installation Guide
Environment Operating Temperature: -30°C~60°C (-22°F~140°F)
Storage Temperature: -40°C~70°C (-40 °F~158 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH

Για πρόσθετες πληροφορίες έκδοσης, μεταβείτε στη σελίδα υποστήριξης.

WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX3000
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574Mbps (802.11ax)

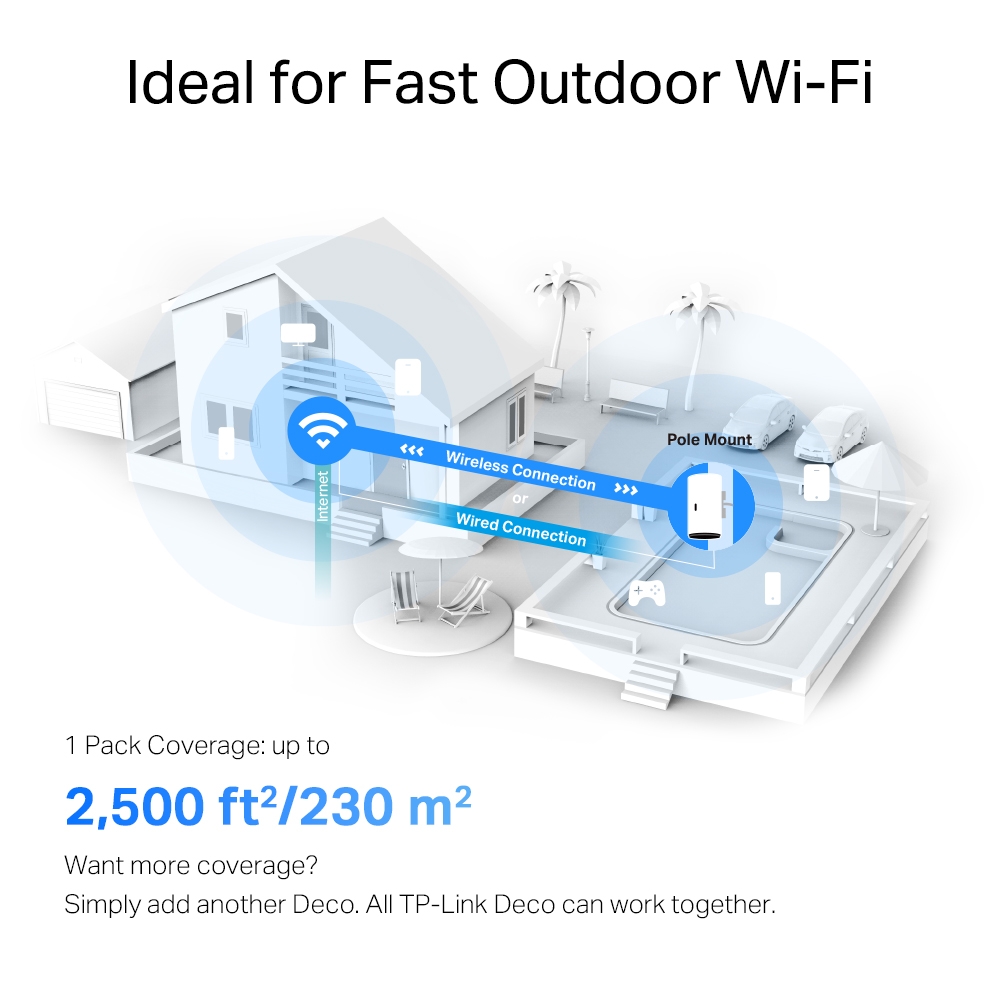

WiFi Range 1-3 Bedroom Houses (1-pack)

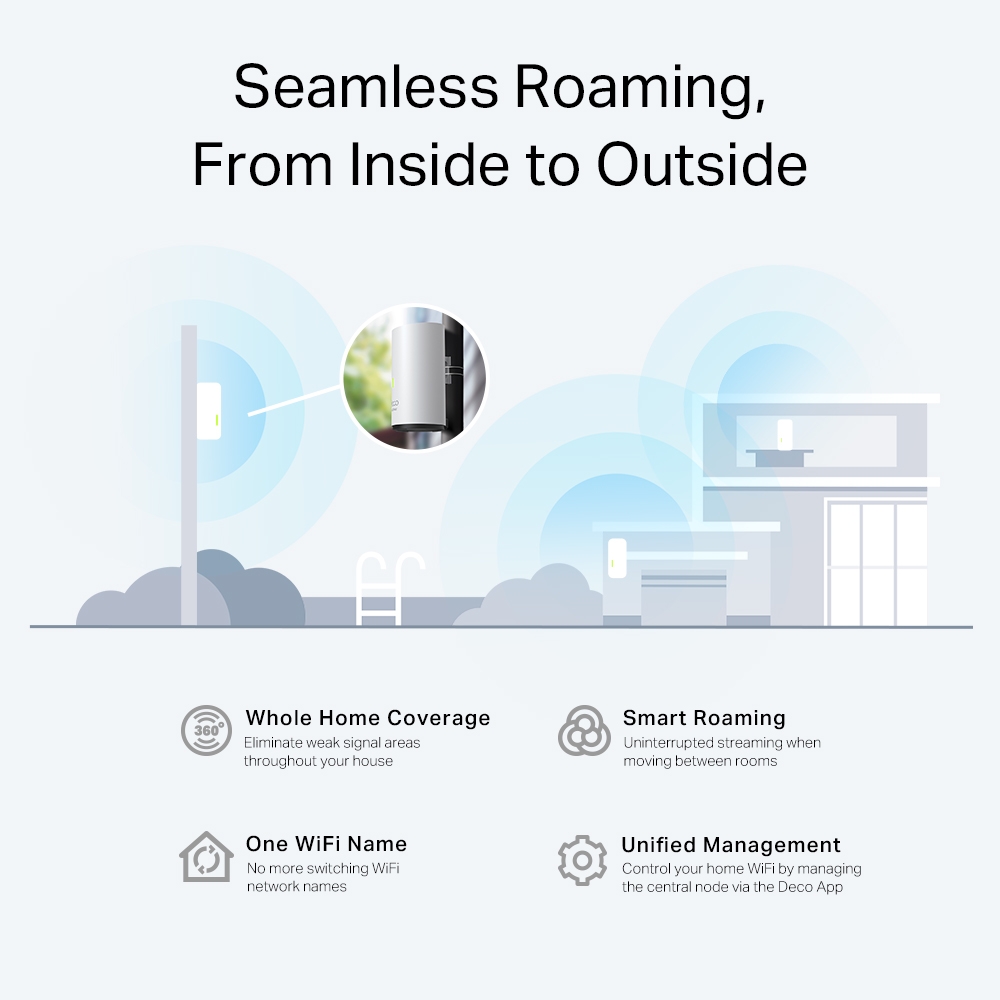

TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity High
Dual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients

4 Streams
More than enough bandwidth for connected devices
Working Modes Router, Access Point
