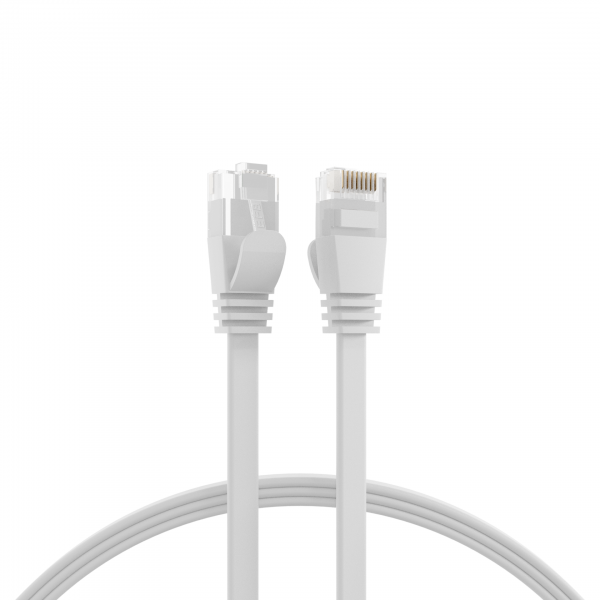

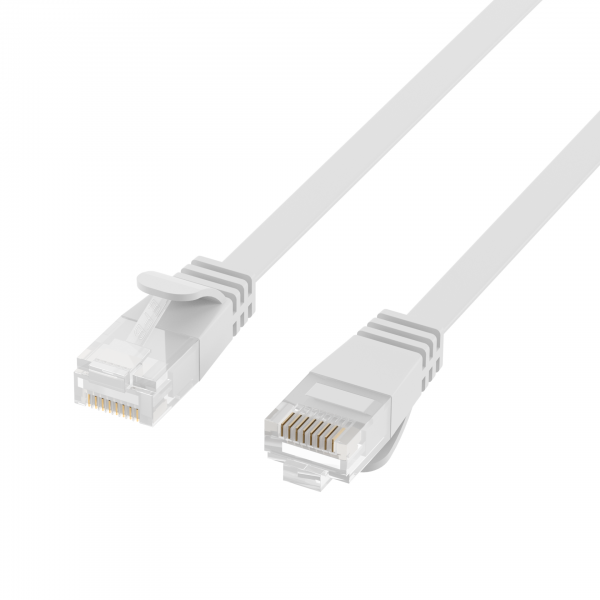

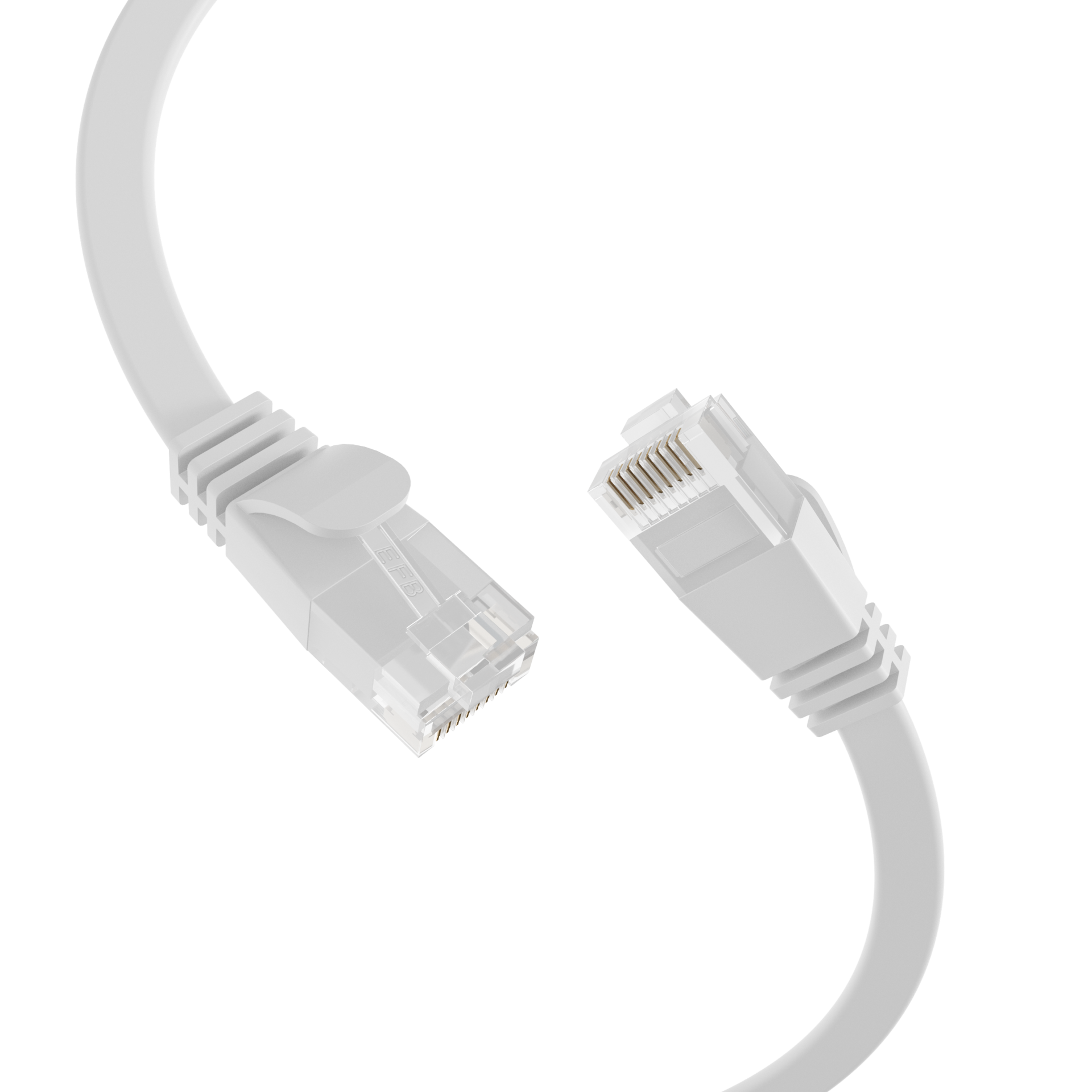

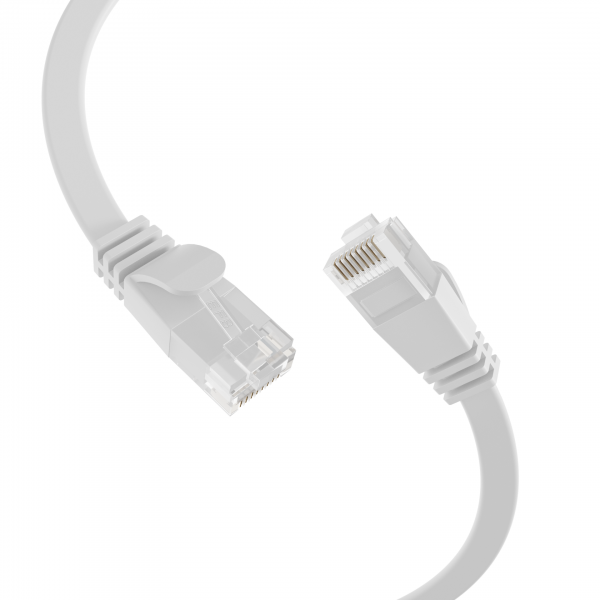

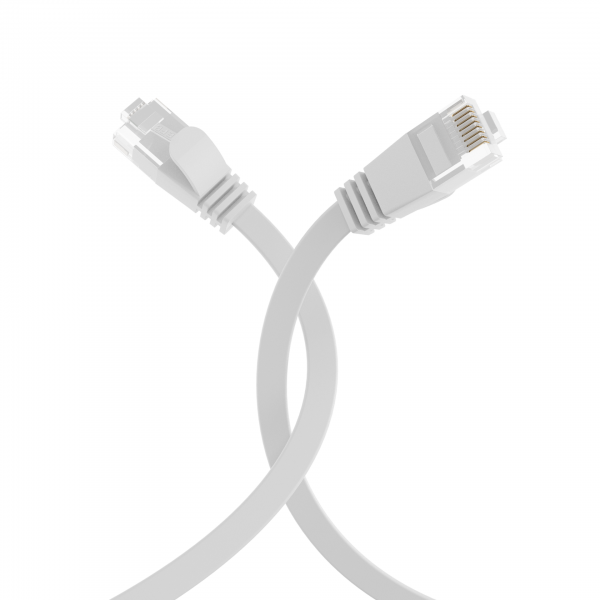

EFB UTP 2m Cat6a Λευκό extra-flat
Κωδικός plus26: 173-459620
Κωδικός Εργοστασίου (MPN): K8107WS.2
This Cat.6A (TIA) data cable from the EFB-Elektronik brand transmits data up to 10Gbit. Because it is a Cat.6A (TIA) patch cable, it supports a frequency range up to 500MHz, which provides high data transmission performance.
This Cat.6A (TIA) data cable from the EFB-Elektronik brand transmits data up to 10Gbit. Because it is a Cat.6A (TIA) patch cable, it supports a frequency range up to 500MHz, which provides high data transmission performance.
• Space-saving cabling – the flat cable enables kink-free installation in confined spaces.
• Cover fire protection requirements in compliance with standards – flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
• Supply and connect end devices via one cable – reduces cabling effort because data and power are transmitted via PoE+ according to IEEE802.3at on a single line. PoE+ according to IEEE802.3at can only be used up to certain cable lengths.
Product Description
The unshielded design in this U/UTP LAN cable enables cost-effective networking in low-interference environments while providing high flexibility for easy installation. It can be used in a temperature range of -20 – 60 °C. The wide range of possible applications is supported by the bending radius of >10 mm. The network cable has an IP20 rating. The polyvinyl chloride (PVC) jacket is a flexible standard jacket for network applications, without special fire protection properties.
Technical details
• Cat.6A (TIA)
• Connector: RJ45 8(8) to RJ45 8(8) with extra-short RJ45 connectors
• Shielding: U/UTP cable with 4x2 x AWG30/7
• Cable shape: flat
• Pin assignment: 1:1 according to TIA/EIA 568B
• Corresponds to PoE class: PoE according to IEEE802.3af and PoE+ according to IEEE802.3at
• Gold-plated contacts
• Sheath: Polyvinyl chloride (PVC) sheath material
• External dimensions of the cable: 6.0*1.6 mm
• With an injected anti-kink grommet
• Fire protection: flame-retardant according to IEC60332-1
• Degree of protection: IP20
• With locking lever protection
• Mating cycles: ≥750
• Brand: EFB-Elektronik
- AWG-size: 30/7
- Allocation: acc. TIA/EIA 568B
- Anti-kink sleeve: moulded-on
- Area of application: Industrial Ethernet
- Structured cabling
- Bending radius: >10 mm
- Cable construction: 4x2
- Cable shape: flat
- Cable type: U/UTP
- Cabling standard: ANSI/TIA-568
- EN50173
- ISO/IEC 11801
- Category: 6A (TIA)
- Colour anti-kink sleeve: white
- Colour outer sheath: white
- Conductive shield: No
- Conductor Material: Copper
- Conductor resistance DC: 376 Ω/km
- Connector: IEC 60603-7-41
- Connector type: RJ45 short version
- Contacts: Gold plated
- Current capacity: max. 1 A
- Fire retardant version: acc. IEC60332-1
- Halogen free: False
- Harmonised Standard: EN 50575
- Impedance: 100 ±15 Ω
- Insulation Resistance: 100 MΩ
- Jacket material: Polyvinylchlorid (PVC)
- Length imprint: False
- Locking lever: True
- Loop resistance: 752 Ω/km
- Mating cycles: ≥750
- Model: unshielded
- NVP value: 76 %
- Oil resistant: no
- Operating-/ tempering voltage: max. 50 V DC
- Operating Temperature: -20 – 55 °C
- Outer diameter of the cable: 6.0*1.6 mm
- Ozone resistance: No
- Pin assignment: 1:1
- Printing: SLIM PATCHCABLE U/UTP CAT.6A ***10GE*** www.efb-elektronik.de
- Resistance unbalance: < 4 %
- Resistant to chemicals: False
- Silicone-free: True
- Suitable for degree of protection (IP): IP20
- Tape width: 500MHz
- Test voltage: 1000 (V DC, 1min) core/core und core/screen
- Transmission: 10Gbit
- Type of connector connection 1: RJ45 8(8)
- Type of connector connection 2: RJ45 8(8)
- UL approbated: False
- UV resistant: False
