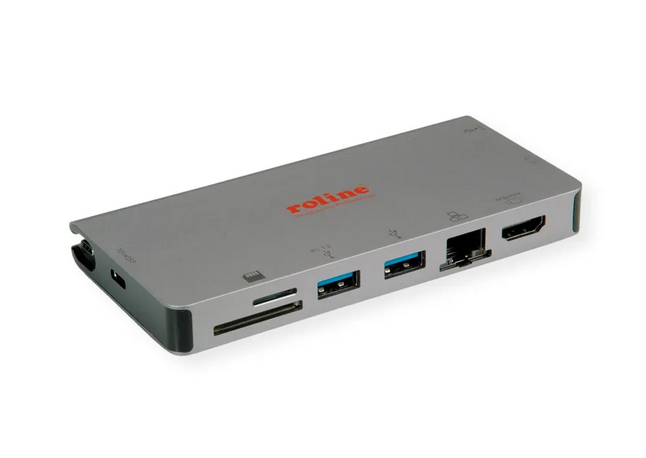

ROLINE USB Type C docking station, 4K HDMI, 1x VGA, 2x USB 3.2 Gen 1 ports, 1x SD/MicroSD card reader, 1x USB Type C PD (Power Delivery), 1x Gigabit Ethernet

Κωδικός plus26: 173-459083

Κωδικός Εργοστασίου (MPN): 12.02.1022-4

Εγγραφείτε για τιμή

Docking Station for Macbooks, Ultrabooks or Notebooks/Laptops - offers HDMI in 4K, 1x VGA, two USB 3.0 / 3.2 Gen 1 ports, SD/MicroSD card reader, USB type C PD (Power Delivery) and one port for Gigabit Ethernet. You get a fast and easy connection to the peripherals you use every day, including VGA and HDMI ports with a maximum resolution of up to 3840x2160 @30Hz!

Plug & Play
aluminium casing

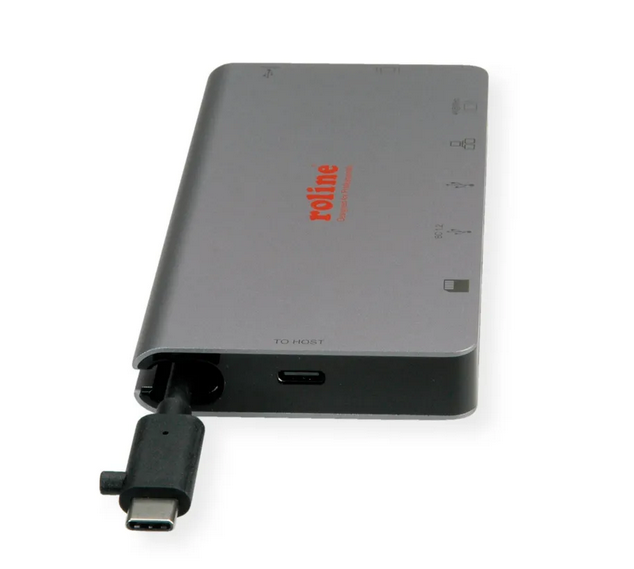

Small, compact design with a small special feature: the included USB Type C connection cable can be easily stowed in the docking station - it is therefore neither lost nor damaged during transport.
One of the two USB 3.0 / USB 3.2 Gen 1 Type A ports supports Battery Charge v1.2 (5V 1.5A) to easily power even larger hard drives

Connection to the device:

1x USB 3.1 / USB 3.2 Gen 2 Type C BU

Connection for peripheral devices:

1x HDMI and 1x VGA port video output: Mirror or expand your screen to a TV, monitor or projector with up to 3840x2160 @30Hz resolution.
2x USB 3.0 / USB 3.2 Gen 1 type A ports (data transfer rate up to 5Gbit/s), e.g. for connecting a wired keyboard or mouse, USB HDD/SSD, etc.
1x SD/TF card reader
1x USB Type C BU, PD (Power Delivery)
1x RJ45 for Gigabit Ethernet

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type Notebook-Docking-Station
Colour Aluminium
Scope of delivery Docking Station
Side 1 connection (PC) USB Type C
Side 2 connection (Peripherals) 1x HDMI, 1x VGA, 2x USB 3.0 / USB 3.2 Gen 1 Type A, 1x SD/TF card reader, 1x USB Type C PD, 1x RJ45
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type

HDMI Type A

HD D-Sub 15-pin (HD-15), VGA

USB 3 Type A

SD-Card-Slot

TF-Card-Slot

USB Type C PD (Power Delivery)

RJ-45

Side 2 Connector Gender Female
Area of application External
Weight 138.1 g
Height of packaging (single piece) 170 mm
Width of packaging (single piece) 40 mm
Depth of packaging (single piece) 170 mm
Package weight (single piece) 0.15 kg
