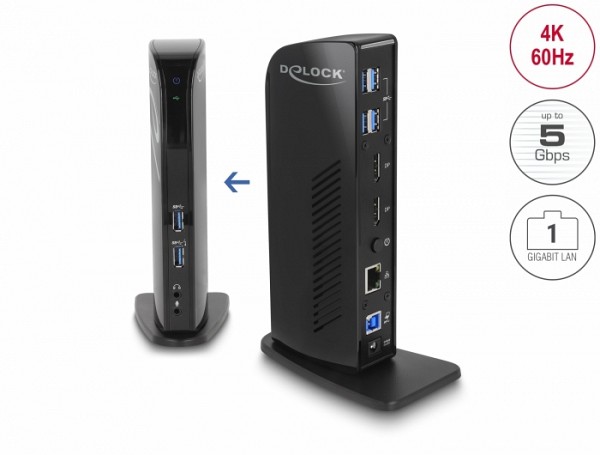

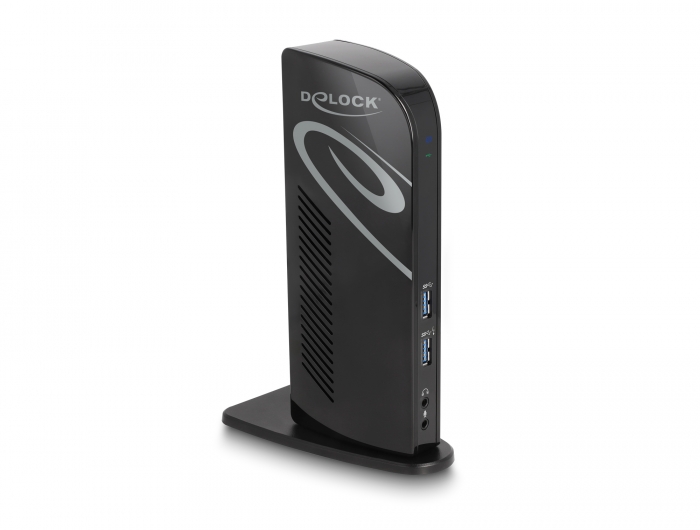

This docking station by Delock can be connected to a computer with a USB-C™ or USB Type-A port and provides a variety of interfaces. Two monitors can be operated simultaneously at the DisplayPort output ports. Six built-in USB 3.2 Gen 1 ports allow the use of peripherals, and connections for microphone and speaker and Gigabit network complete the features.

4K 60 Hz UHD resolution
Ultra-HD (4K) resolution is possible when using only one monitor and also when using both DisplayPort outputs at the same time. There is no DisplayPort Alternate Mode support required.

Extended screen by Displaylink
Due to the Displaylink graphics chipset it is possible to use mirrored and extended screen functions on Windows and Mac OS operating systems.

Specification

Connectors:
front side:
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female - Battery Charging
specification BC1.2
1 x microphone 3.5 mm stereo jack
1 x speaker 3.5 mm stereo jack
back side:
4 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
2 x DisplayPort female
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-B female
1 x DC 20 V power connector
Maximum resolution (depending on the system and the connected hardware):
Single display: up to 3840 x 2160 @ 60 Hz
Dual display: up to 3840 x 2160 @ 60 Hz
Transmission of audio and video signals
Functions: Mirrored or Extended
1 x On / Off switch
Colour: black
Dimensions without stand (LxWxH): ca. 190 x 78 x 38 mm

Power supply specification

Wall power supply
Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.3 A
Output: 20 V / 2.25 A
Ground outside, plus inside
Dimensions:
inside: ø ca. 1.7 mm
outside: ø ca. 4.75 mm
length: ca. 9.5 mm

System requirements

Mac OS 12.0.1 or above
Windows 8.1/8.1-64/10/10-64/11
PC or laptop with a free USB Type-A port or
PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port

Package content

USB docking station
Cable USB Type-A male to Type-B male, length ca. 1 m
Cable USB-C™ male to USB Type-B male, length ca. 1 m
Power supply
User manual

Package

Retail Box
