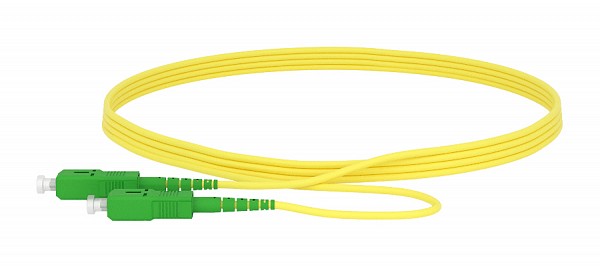

F/O SC/apc-SC/apc 5m LSZH Simplex

Κωδικός plus26: 173-455457

Κωδικός Εργοστασίου (MPN): SASA072ST5

Εγγραφείτε για τιμή

Single Mode

Simplex Configuration

High Precision ceramic ferrule with excellent concentricity

100% Inspection for optical properties and fiber end face finish

LSZH Sheath

Fiber Optic Patchcord 9/125 OS2 Simplex available in various sizes and connectorizations,
both UPC than APC, available with the main fibers singlemode used: G652D, G657A, G657B.
Customizable for the FTTH market. These patchcords utilize simplex single-mode fiber,
characterized by a core diameter of approximately 9 microns and a cladding diameter of 125
microns. This configuration is particularly well-suited for long-range communications,
making it a popular choice for many advanced networking environments.
Simplex single-mode fiber optic patchcords are ideal for applications that require high-
speed data transmission over long distances. They can support data rates of 1 Gb/s, 10 Gb/s,
40 Gb/s, and even 100 Gb/s over distances that can extend up to 10 kilometers or more,
depending on the specific requirements and network equipment used. This high performance
makes them suitable for various high-bandwidth applications such as telecommunications,
Ethernet, and fiber channel.

APPLICATION

LAN, WAN and Metro Networks
FTTH projects & FTTX Deployments
CATV Systems
GPON , EPON
Fiber Optic Test Equipments
Database Transmit Broadband Net

Cable
Connector SC, LC, FC, MTRJ and ST
Fiber Type Single mode 9/125
Strength Member Aramid Yarn
Jacket Colour Yellow, Blue, White, Red
Jacket Thickness (mm) 0.45 +/- 0.05
Cable Diameter (mm) 1.6/1.8/2.0/3.0 mm
Optical Specification
Insertion Loss Typical: <0.2dB, Max. 0.3dB (MTRJ: Max. 0.5dB)
Return Loss ≥50Db upc - ≥60Db apc
Mechanical Specification
Connector Ferrule Ceramic, (MTRJ: PS- Polyphenylene Sulphide)
Apex Offset <50um
Fiber Height ±100nm
End-face Radius of Curvature 7mm < R < 25 mm (Excluding MTRJ)
Repeatability <0.2dB 1,000 times mating cycles
Working Temperature From -40°C to + 85°C
Storage Temperature From -40°C to + 85°C
General
1. Fiber cable according to IEC 60793-2;
2. End surface test is according to WI-QJ-021;
3. Test standard: IL<=0.3dB @ 850nm
4. ROHS Compliant.
