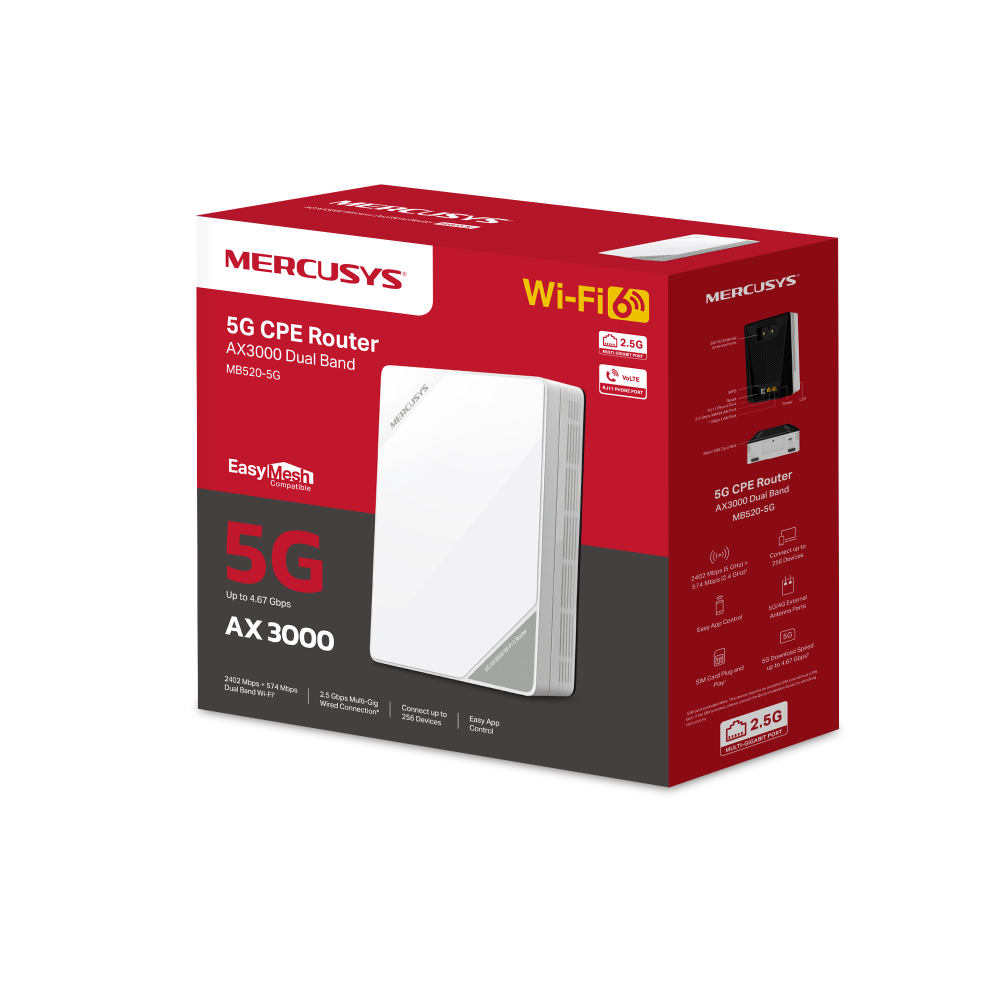

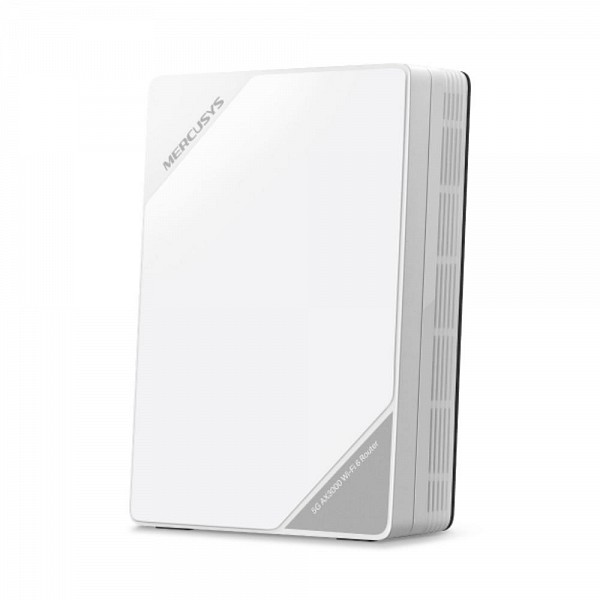

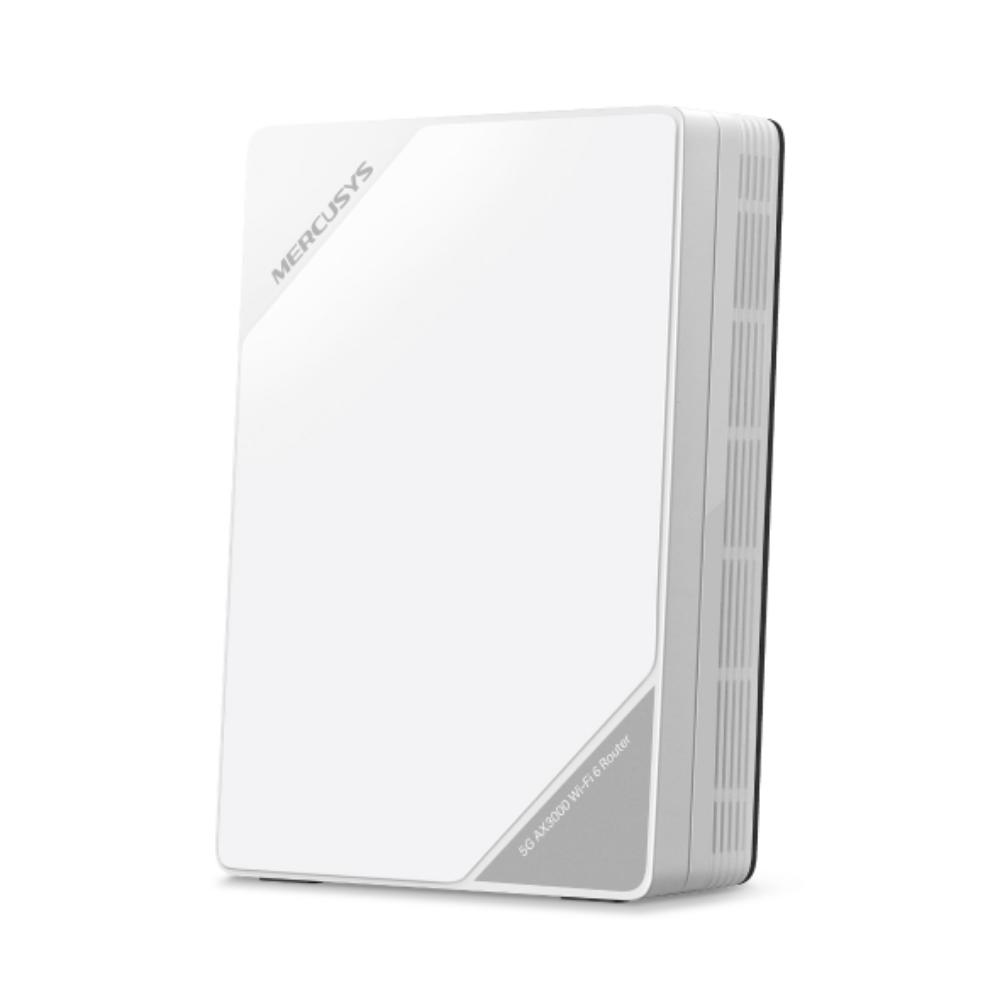

Mercusys 5G AX3000 Wireless Dual Band Router with 2.5GE port MB520-5G

Κωδικός plus26: 010-438921

Κωδικός Εργοστασίου (MPN): MB520-5G

Εγγραφείτε για τιμή

Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Convert your 5G network into WiFi and share it with multiple WiFi devices.§

AX3000 Dual Band WiFi 6 – Speeds up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.‡

Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.△

Simultaneous Connection – Enjoy sharing internet access with up to 256 WiFi devices.

Maximized Coverage – Advanced internal antennas deliver fast, stable connections, while external ports support additional antennas for extended range.

2.5 Gbps WAN/LAN Port – Plug an Ethernet cable into the WAN/LAN port for flexible access if you can't get a 5G connection.*

EasyMesh-Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.

High-Quality Telephony – Features a phone port for landline use, enabling simultaneous calling and internet access via VoLTE.

Easy App Control – The MERCUSYS app helps you set up in minutes. Manage your WiFi at home or away through your iOS or Android devices.

Network Type

EU:
5G:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

Wi-Fi Class

AX3000

Wi-Fi (2.4 GHz)

574 Mbps

Wi-Fi ( 5 GHz)

2402 Mbps

Frequency

5 GHz, 2.4 GHz

Wireless Standards

IEEE 802.11ax/ac/a/b/g/n

Reception Sensitivity

5 GHz:

11ax HE20: -64 dBm

11ax HE40: -61 dBm

11ax HE80: -59 dBm

11ax HE160: -56 dBm

11ac VHT20: -70 dBm

11ac VHT40: -67 dBm

11ac VHT80: -64 dBm

2.4 GHz:

11ax HE20: -66 dBm

11ax HE40: -62 dBm

11ac VHT20: -71 dBm

11ac VHT40: -67 dB

Transmission Power

2.4 GHz < 20dBm (EIRP)
5 GHz band1, 2 < 23dBm (EIRP)
5 GHz band3 < 30dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK / WPA3-SAE

Wireless Functions

Smart connect
WPS
Wireless Schedule
Wireless Clients Statistics
Easymesh
Multi-SSID

Wireless

Operation Modes

5G/4G/3G Router
Wireless Router

Cellular Mode

5G Preferred
5G Only
4G Preferred
4G Only
3G Only

Cellular APN

Data Roaming
Network Search
Band Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management

WAN Mode

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

DHCP

Server
DHCP Client List
Address Reservation

NAT Forwarding

ALG
Virtual Server
Port Triggering
UPnP
DMZ

Protocols

IPv4, IPv6

Data Settings

Data Statistics
Data Limit

Guest Network

2.4 GHz Guest Network
5 GHz Guest Network

Parental Controls

Time Control
Website Filtering

DDNS

DynDns
NO-IP

VPN Sever

Open VPN
PPTP VPN
IPSec VPN

SMS

Inbox
New Message
Outbox
Drafts

QoS

√

Security

IPv4 SPI Firewal
Service Filtering
Access Control
IP & MAC Binding
IPv6 Firewall

System Settings

Time Settings
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot Schedule
Administration
System Log
Traffic Statistics

Device Management

MERCUSYS APP
Web GUI

System Language

Czech
Danish
English
Spanish
French
Italian
Polish
Romanian
Russian
Turkish
Hungarian
Indonesian
Chinese - Taiwan

TR-069

√

Software

Dimensions

190 × 130 × 69.7 mm

(7.5 × 5.1 × 2.7 in)

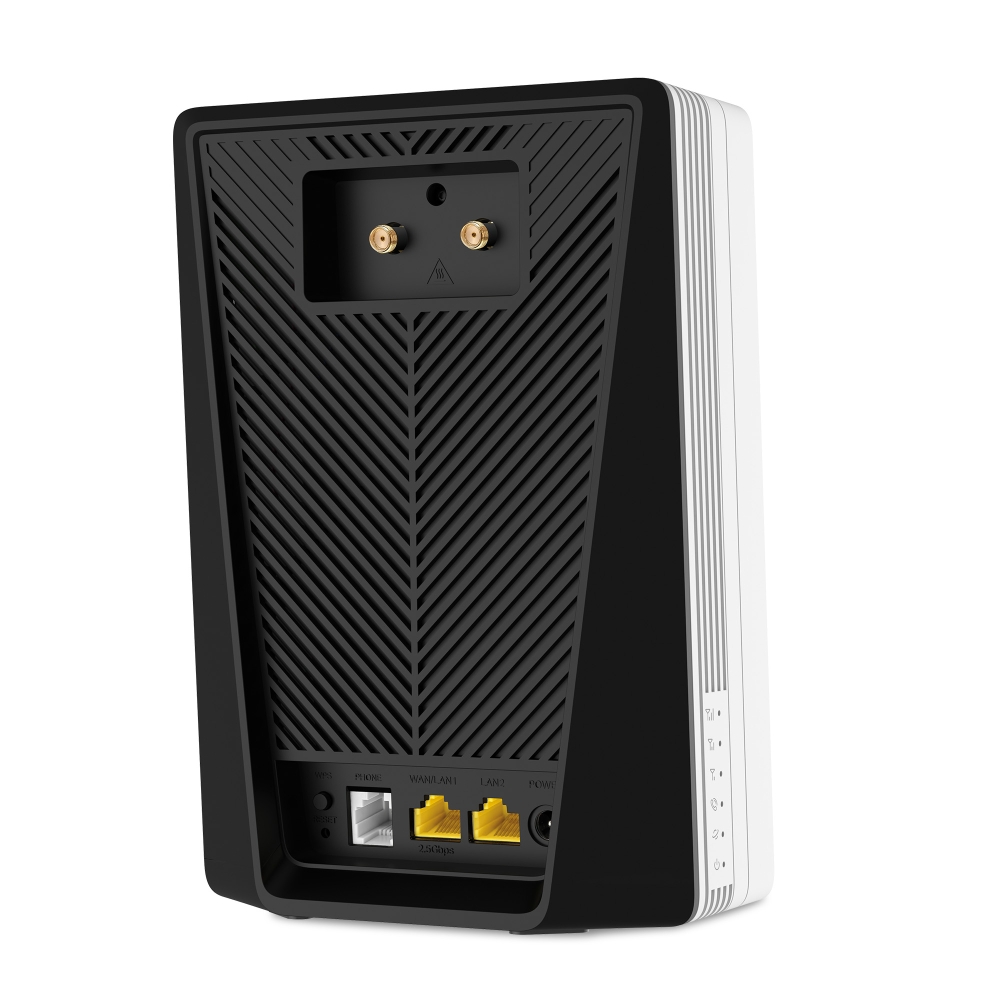

Interfaces

1× 2.5 Gbps LAN/WAN Port
1× Gigabit LAN Port
1× RJ11 Phone Port
2× 5G/4G External Antenna Ports

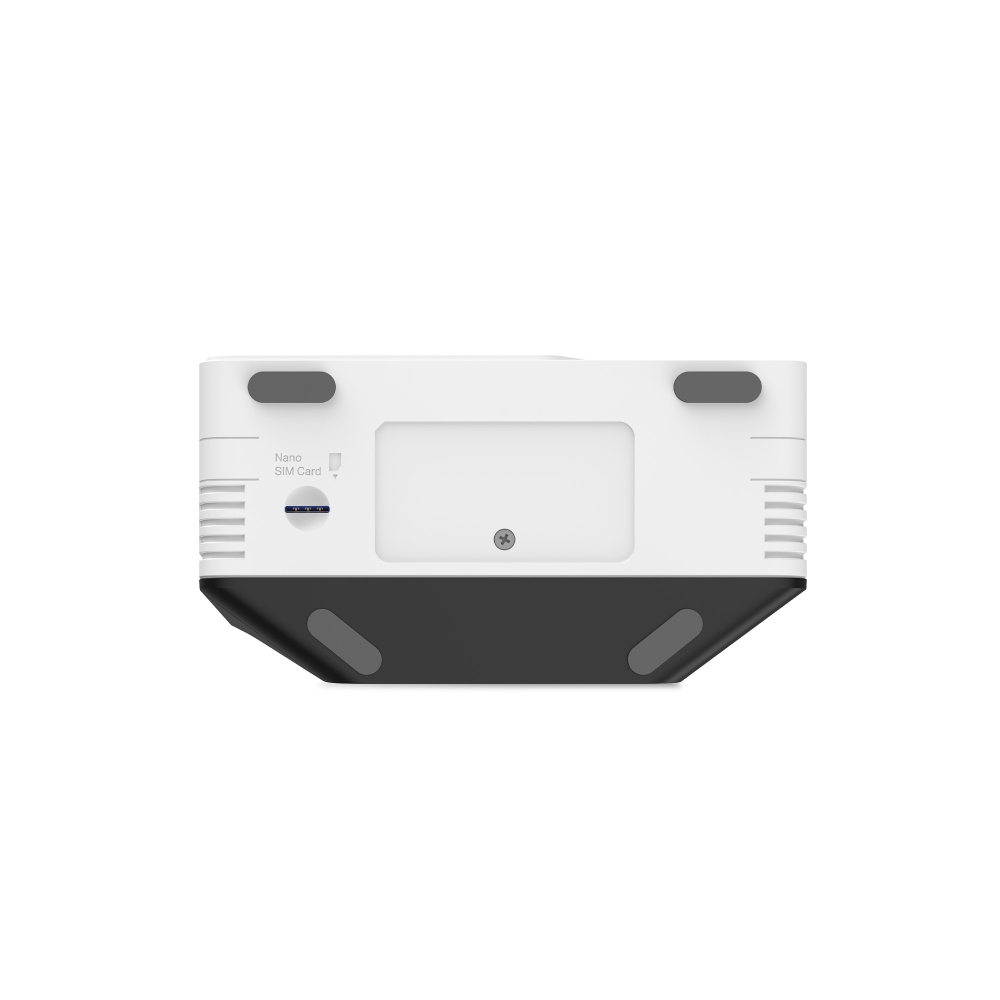

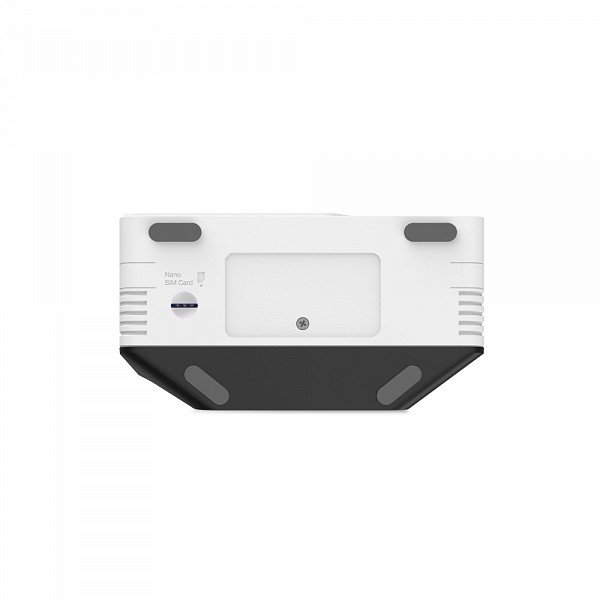

1× Nano SIM Card Slot

Antenna

Internal

Button

WPS, Reset Button

External Power Supply

12V/2A

LED

1× Power
1× Internet
1× Phone
3× Signal

NR Standard

4.67/1.25Gbps DL/UL

LTE Standard

Cat 19
1.6Gbps/200Mbps DL/UL

Hardware

Package Contents

5G AX3000 Wireless Dual Band Router (MB520-5G)

Power Adapter

RJ45 Ethernet Cable

RJ11 Phone Cable

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
