Wireless Standards

IEEE 802.11 a/n/ac 5 GHz
IEEE 802.11 b/g/n 2.4 GHz

WiFi Speeds

867 Mbps on 5 GHz
300 Mbps on 2.4 GHz

Reception Sensitivity

5 GHz:
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

Wireless

Dimensions

8.9 × 4.8 × 0.85 in (226.3 × 120.8× 21.5 mm)

Antenna Type

2× Fixed High-Performance Omni-Directional Antennas

Hardware

Package Contents

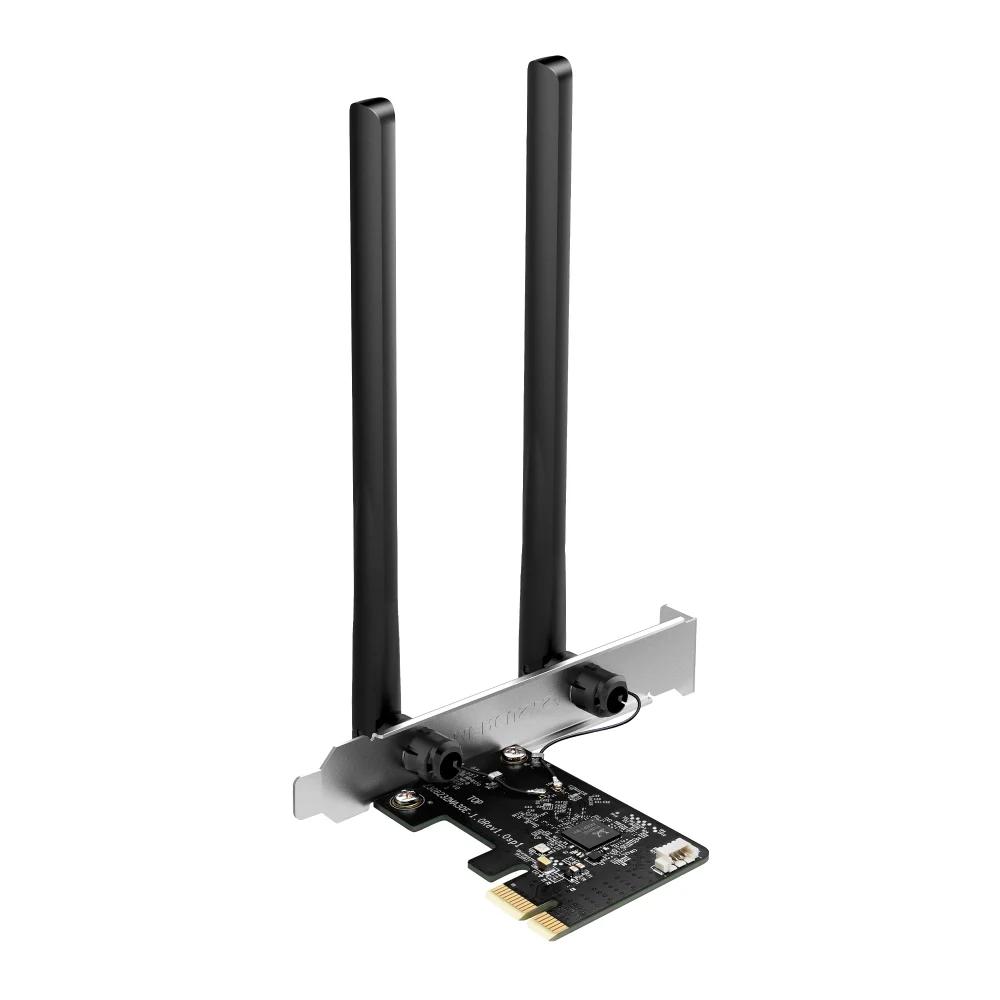

AC1200 Wi-Fi Bluetooth 5.0 PCIe Adapter (MA30E)
Bluetooth Header Cable
Quick Installation Guide
Resource CD

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

System Requirements

Supported operating systems include Windows 10, 11(64-bit)
