HARDWARE FEATURES

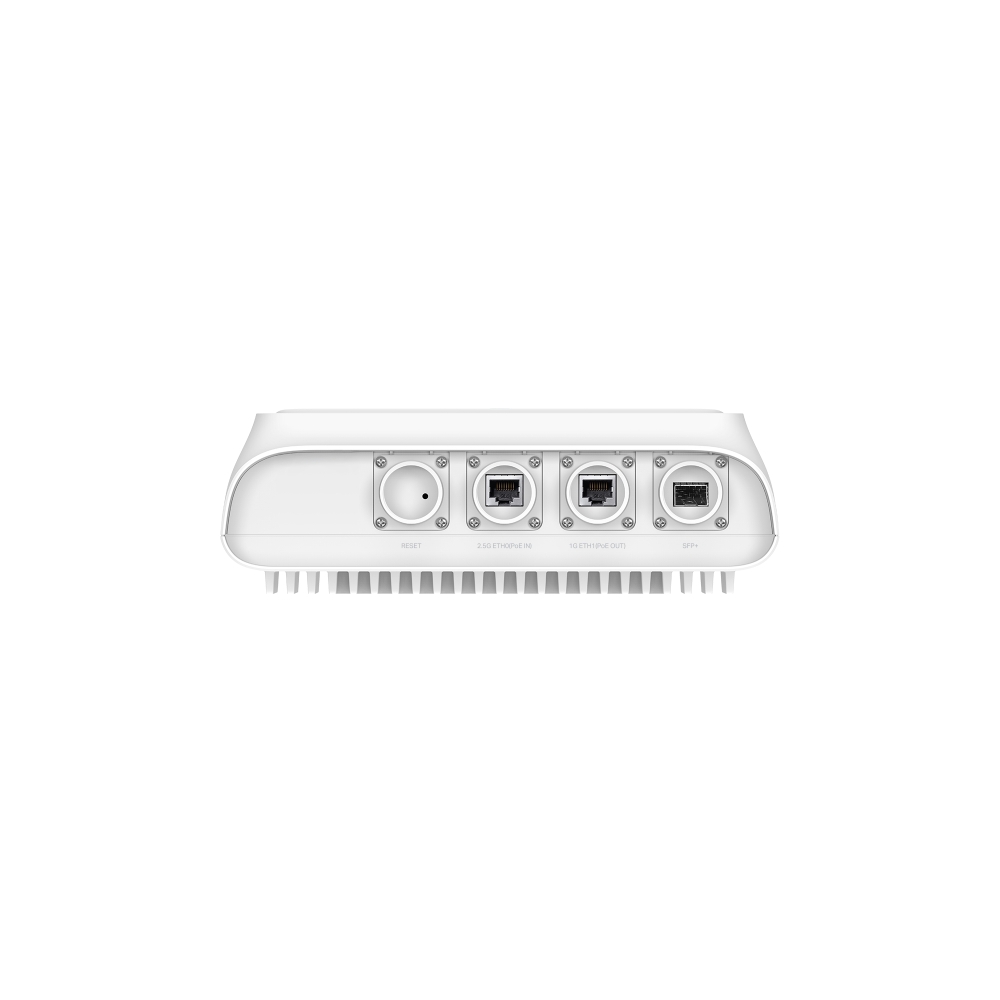

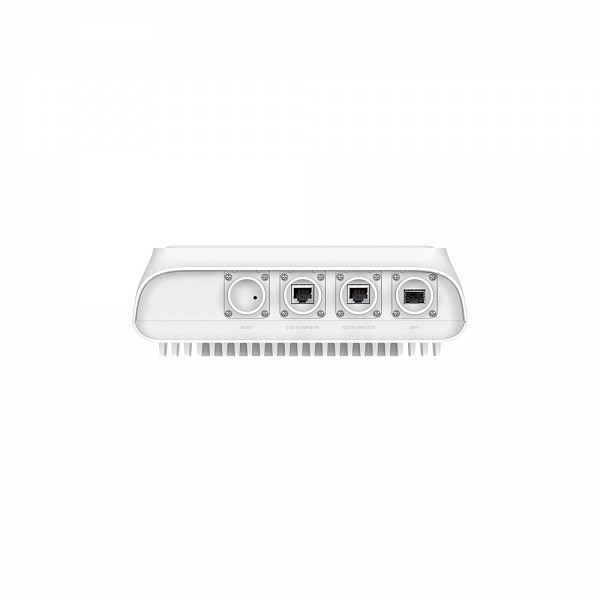

Interface 1× 2.5G Ethernet Port + 1× Gigabit Ethernet Port + 1× 10G SFP+
Button Reset
Power Supply 802.3at/bt PoE
Max. Power Consumption 802.3bt:
• EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out)
• US: 25.4W (bt type3: af PSE out; bt type4: at PSE out);
802.3at:
• EU: 20.2W (PSE disabled)
• US: 25.4W (PSE disabled)
Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input.
Dimensions ( W x D x H ) 9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm) (excluding antennas, waterproofing kit, and mounting kit)

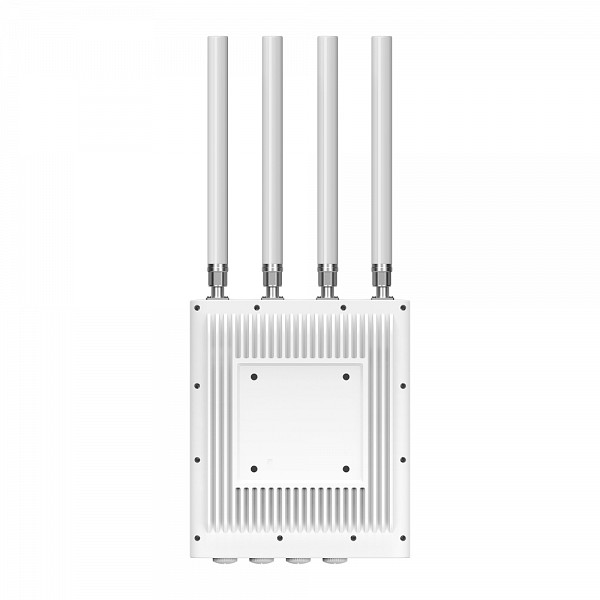

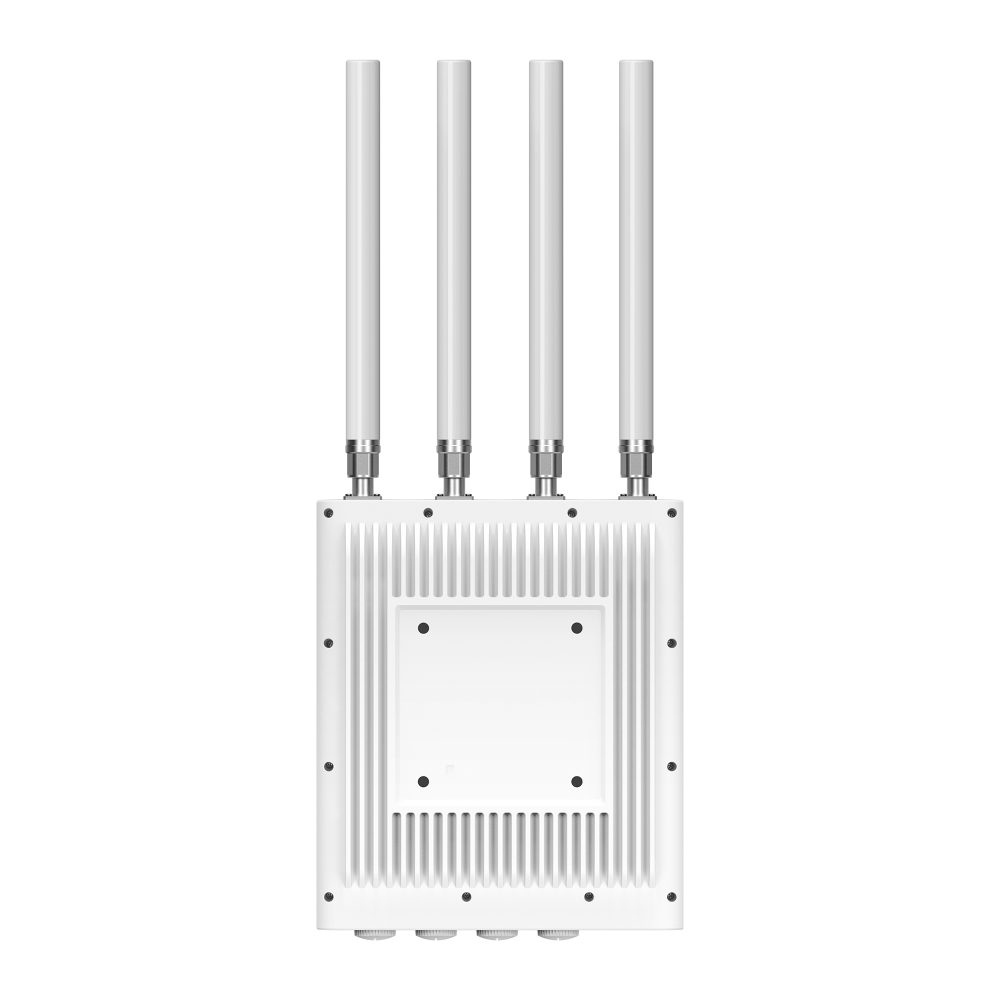

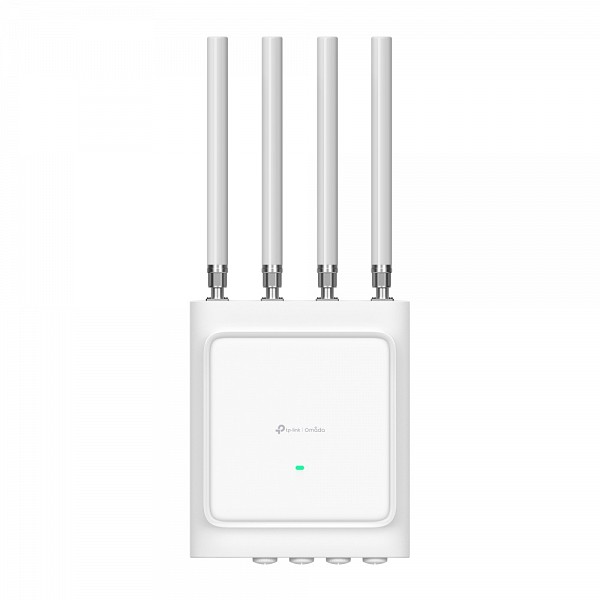

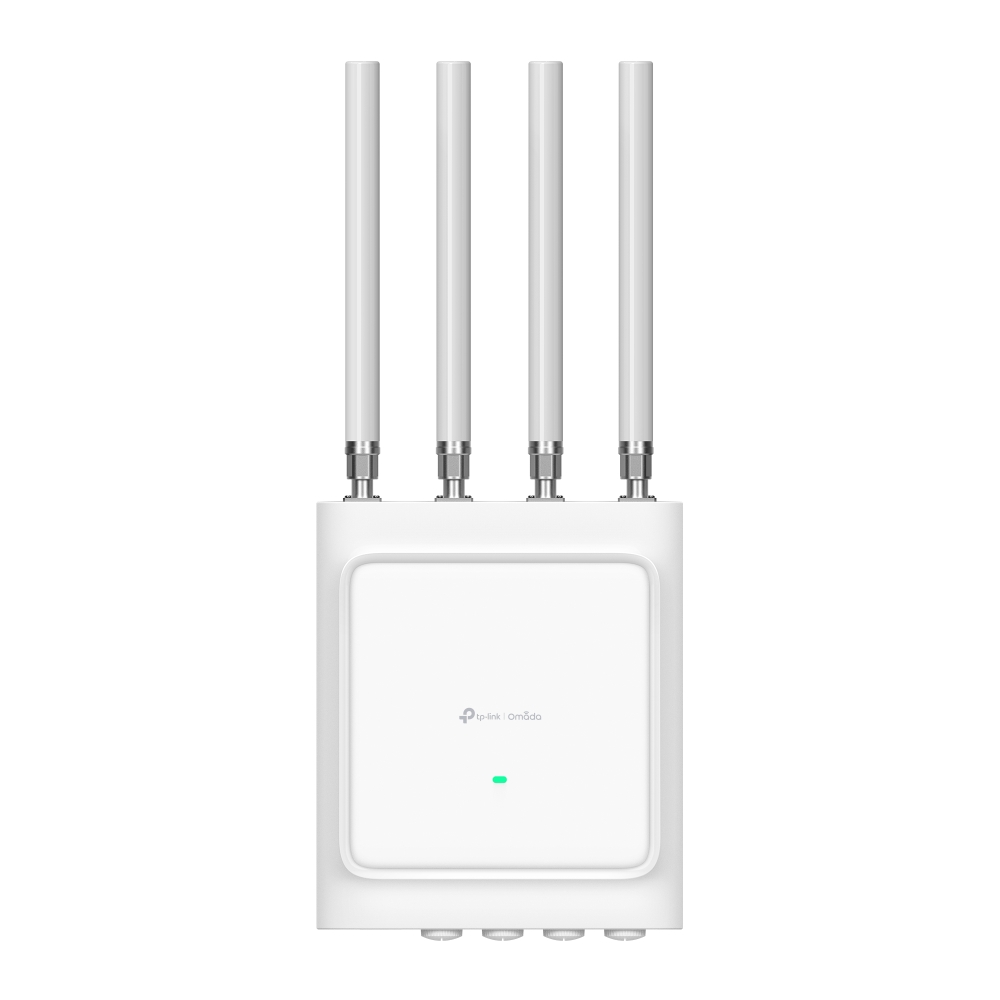

Antenna 4× External Dual-Band Omni Antennas
• 2.4 GHz: 6.0 dBi
• 5 GHz: 6.0 dBi
Bluetooth Yes
Weatherproof Enclosure IP68
Mounting Wall/pole mouting (kits included)，supporting horizontal ±45° adjustment
• Optional bracket accessory APM-110: Supports vertical ±90°, horizontal ±45° adjustment
• Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment

(Note: Optional bracket accessories need to be purchased separately)

WIRELESS FEATURES
Concurrent Clients 1,000+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax
Frequency 5 GHz, and 2.4 GHz
Signal Rate • 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 1148 Mbps
Wireless Functions • 1024-QAM
• Mesh§
• Seamless Roaming(802.11k/v/r)§
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Automatic Channel Assignment (Adjust transmit Power on dBm)
• Transmit Power Control
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDs:16 (8 for each band)
• MU-MIMO (4 × 4 MU-MIMO DL/UL)
• UL/DL OFDMA
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
Wireless Security • VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• Maximum number of MAC Filter: 4,000
• Wireless Isolation between Clients
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);
• FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3)

Management Features
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Require the use of an Omada controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
SSH Yes
Web-based Management Yes

OTHERS
Certification CE, FCC, RoHS
Package Content • EAP668-Outdoor HD
• 4× External Dual-Band Omni Antennas
• Installation Guide
• Mounting Kit
• Waterproof Kit
Environment • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
