5G/4G/3G
Network Mode • 5G NR:N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N75/N76/N77/
N78 (2100/1800/850/2600/900/800/850/700/2600/2300/2500/150
0/1450/3700/3500 MHz)§

• 4G FDD-LTE: B1/B3/B5/B7/B8/B20/B26/B28/B32 (2100/1800/850/26
00/900/800/850/700/1500 MHz)§
4G TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700
MHz)

• 3G WCDMA: B1/B5/B8 (2100/850/900 MHz)
Speed 5G NR Speed
• SA: Downlink: 7.01 Gbps, Uplink: 1.25 Gbps
• NSA: Downlink: 4.5 Gbps, Uplink: 730 Mbps

LTE Speed
• Downlink: 1.6 Gbps, Uplink: 211 Mbps
SIM Type Dual Nano SIM

SECURITY
DPI Deep Packet Inspection
Access Control Source/Destination IP Based Access Control
Filtering • Web Group Filtering (only in Standalone Mode)
• URL Filtering
• Web Security (only in Standalone Mode)
ARP Inspection • Sending GARP Packets
• ARP Scanning (only in Standalone Mode)
• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

HARDWARE FEATURES

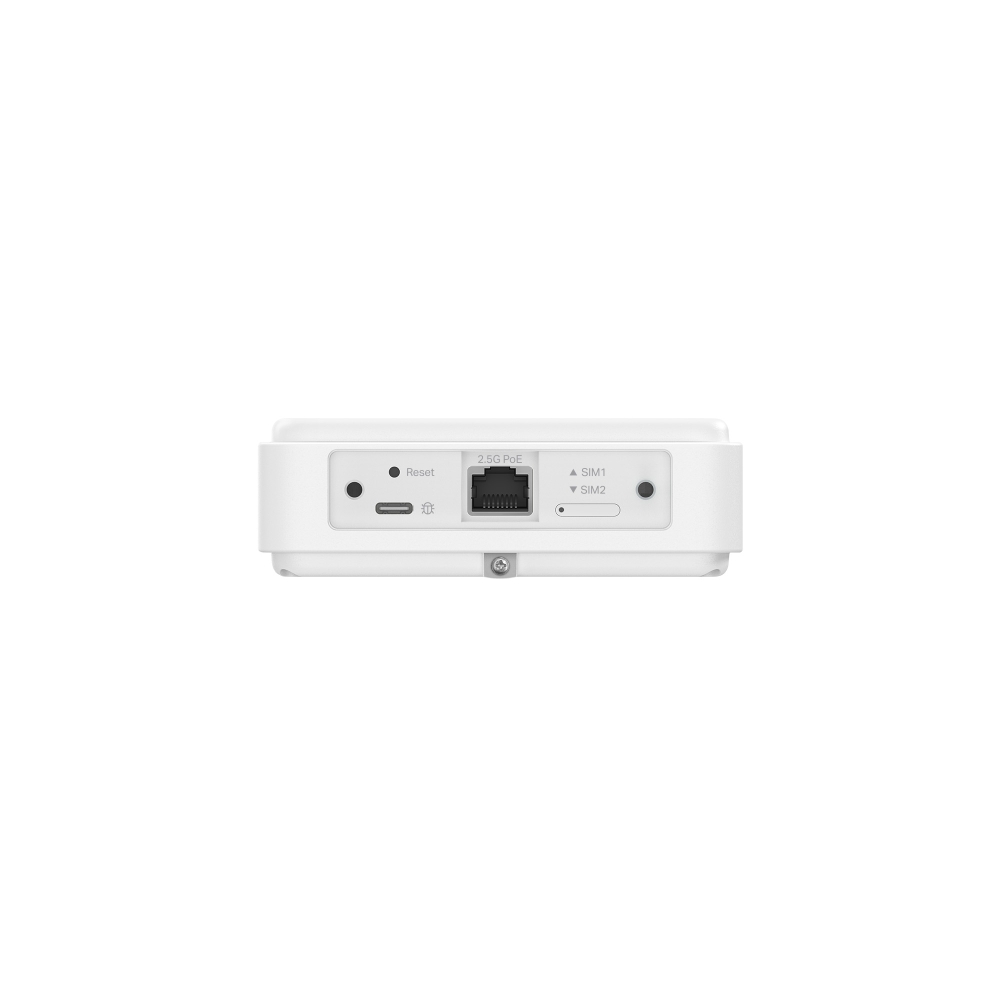

Interface 1×2.5G RJ45 Port
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply • 802.3at PoE: 42-57V 0.6A
• Passive PoE: 48V 0.375A
Flash 4GB eMMC Flash
DRAM 2GB LPDDR4x
LED System, Network Type, Signal Strength
Dimensions ( W x D x H ) 7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm)
Antenna • 9× internal Cellular antennas
• 1× internal Wi-Fi antenna
SIM Slot 1×Dual Nano SIM slot

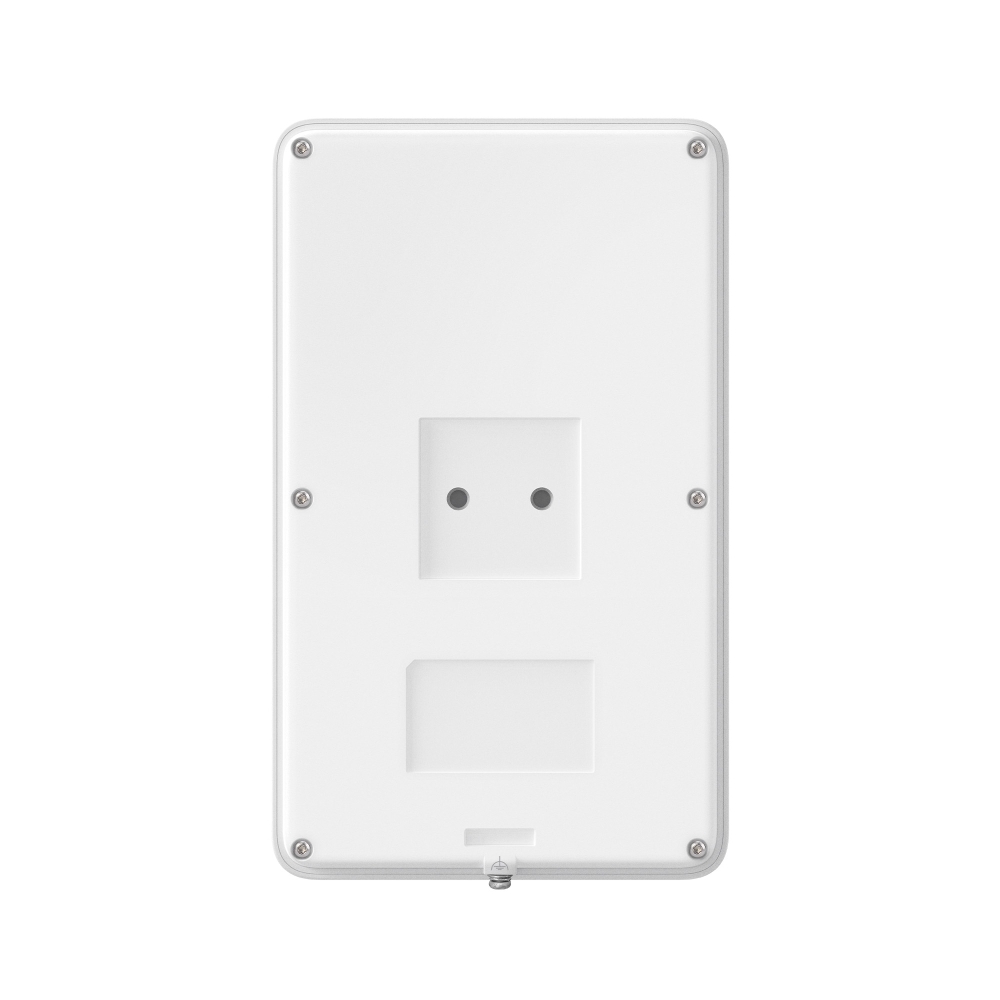

Mounting Wall/Pole/Window Mounting
Max. Power Consumption 15.3W (802.3at PoE or Passive PoE)

PERFORMANCE
Concurrent Session 500, 000
New Sessions /Second 6,100

WIRELESS FEATURES
Wireless Speeds 2.4 GHz: 150 Mbps†
Wireless • 802.11n: 6.5 Mbps to 150 Mbps (MCS0-MCS7, HT20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
Advanced Features • Wireless Encryption: WPA/WPA2 Personal
• SSID: 1
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Automatic Channel Selection Algorithm
• Transmit Power Control: Adjust transmit Power on dBm

BASIC FUNCTIONS
WAN Connection Type 5G/4G/3G
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
Stateful ACL Yes
Quality of Service Yes
Bridge VLAN Yes
SMS Receive / Send SMS
VLAN 802.1Q VLAN

Advanced Features
Bandwidth Control IP-based Bandwidth Control
NAT • Multi-Net NAT
• Virtual Server
• Port Triggering**
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Routing • Static Routing
• OSPF**
Session Limit IP-based Session Limit

TRANSMISSION
NAT • Multi-Net NAT
• Virtual Server
• Port Triggering (only in Standalone Mode)
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Routing • Static Routing
• OSPF (only in Standalone Mode)
Session Limit IP-based Session Limit
Bandwidth Control IP-based Bandwidth Control

AUTHENTICATION
Web Authentication • No Authentication
• Simple Password△
• Hotspot (Local User / Voucher△ / SMS△/ Radius)
• External Radius Sever
• External Portal Sever
• LDAP

Management Features
Omada App Yes.
Centralized Management • Omada Central (Cloud-Based)
• Omada Hardware Controller
• Omada Software Controller
• Omada App
Cloud Access Yes.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

OTHERS
Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
_____________________________________________________
TDP Server
Device discovery
• Port: 20003 Protocol: UDP
_____________________________________________________
DHCP Server
Handle DHCP packets
• Port: 67 Protocol: UDP
_____________________________________________________
DNS
Handle DNS packets
• Port: 53 Protocol: TCP/UDP
Certification CE, NCC, BSMI, RoHS
Package Content • ER701-5G-Outdoor Gateway
• Passive PoE Adapter
• Mounting Kits
• Waterproof kit
• Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 5% to 95% non-condensing
• Storage Humidity: 5% to 90% non-condensing
• Surge Protection: 6 kV surge protection
