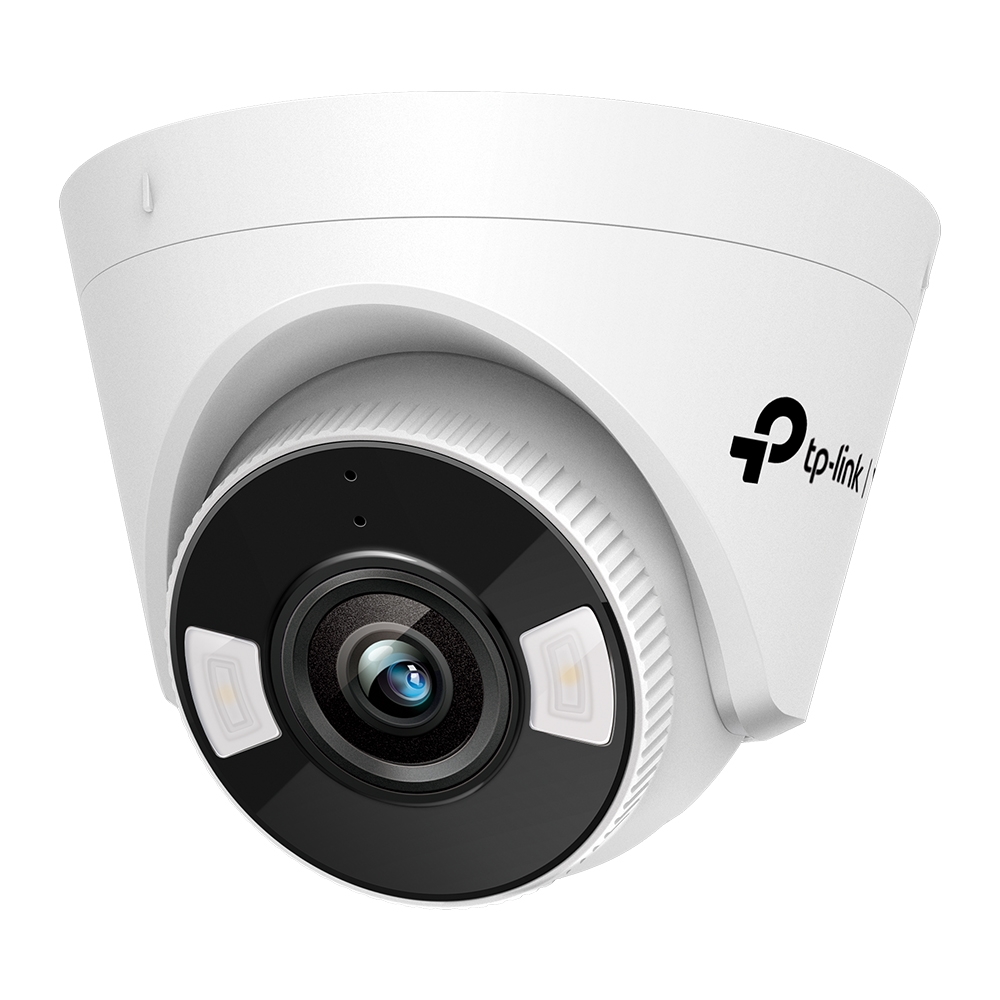

Tp-Link 5MP Full-Color Turret Network Camera-4mm Lens VIGI C450(4mm)

Κωδικός plus26: 173-434784

Κωδικός Εργοστασίου (MPN): VIGI C450(4mm)

Εγγραφείτε για τιμή

5MP Super-High Definition: The camera comes with 5MP–more than enough pixels to pick up some of the more discrete details.

24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.

People & Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency§.

Active Defense: Warn potential intruders instantly with sound and light when abnormal events.

Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.

Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.

H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, True WDR, 3D DNR, and Night Vision.

PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 512 GB).

CAMERA
Image Sensor 1/2.7” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Day/Night/Auto/Schedule-Switch

LENS
Type Fixed Focal Lens
Focal Length 2.8/4 mm
Aperture 2.8 mm: F1.6
4 mm: F1.6
FOV 2.8mm:
Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°

4mm:
Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
Lens Mount M12*P 0.5
DORI Distance 2.8 mm
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)

4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

Angle Adjustment (Manual)
Range Pan: 0° to 360°, Tilt: 0° to 85°

ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution 2880 X 1620
Main Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
704x576,640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120 dB
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes

AUDIO
Audio Communication Yes
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)

NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage NAS (NFS, SMB/ CIFS)

ALARM AND EVENT MANAGEMENT
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push

Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Multi-Target-Type Detection Supports Simultaneous Detection and Capture of Human Body and Vehicle
Face Capture N/A
Face Comparison N/A

INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A

GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Mounting Accessories
Material Plastic
Net Weight 0.24 Kg
Gross Weight 0.4 Kg
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3at, class 0)
Power Consumption Maximum: 9 W
Typical (Day Mode): 1.76 W
Typical (Night Mode with IR LED): 3.5 W
Typical (Night Mode with White LED): 3.8 W
Protection N/A
Product Dimensions (L x W x H) Φ123x84 mm
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
