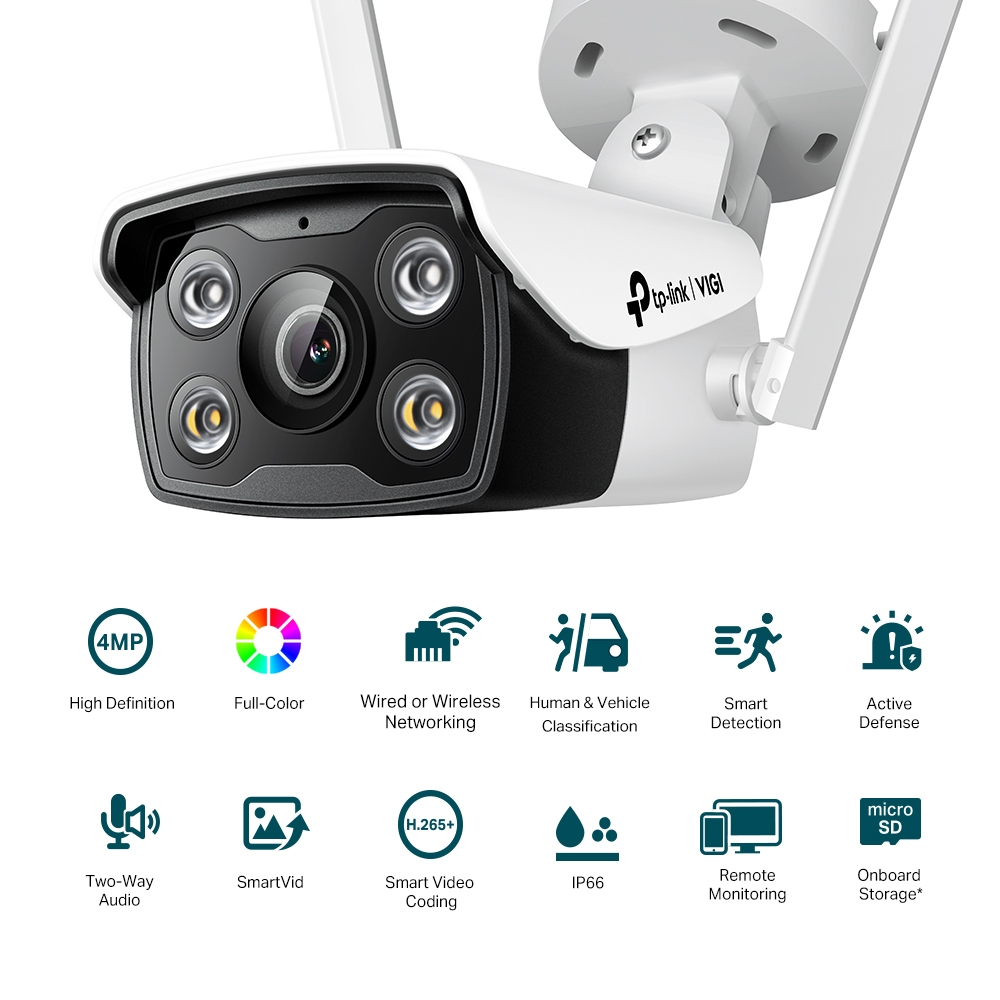

Tp-Link VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera VIGI C340-W(4mm)
Κωδικός plus26: 0024-208
Κωδικός Εργοστασίου (MPN): VIGI C340-W(4mm)
- 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
- Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).
CAMERA
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed focal lens (4 mm)
Day/Night Switch Day/Night/Auto/Schedule-Switch
Digital Noise Reduction 3D DNR
WDR DWDR
Weatherproof Rating IP66
Shutter Speed 1/3 to 1/10000 s
Aperture 4 mm: F1.6
Lens Mount M12
Viewing Angle (4mm) Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal
FOV: 94.2
Slow Shutter Yes
Minimum Illumination Color: 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism IR Cut Filter
LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens Mount M12
DORI Distance Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
ANGLE ANDUSTMENT (Manual)
Pan: -90° to 90°,
Tilt: -90° to 90°
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2560 X 1440
Main Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 3 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless Rate 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)
Wireless Security WPA/WPA2-PSK
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View Up to 6 Channels
Client VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage NAS (NFS, SMB/ CIFS)
Frequency 2.4 GHz
WIRELESS
Standards IEEE 802.11b/g/n
WiFi Channels 1-13
Frequency 2.4 GHz
Wireless Transmit Power High
Auto Wireless Channel N/A
Wireless Statistics N/A
Throughput Mornitor N/A
Radio Bandwidth Auto: N/A
20M: Yes
40M: Yes
Wireless Rate 11Mbps(802.11b)
54Mbps(802.11g)
150/300Mbps(802.11n)
Wireless Security PWPA/WPA2-PSK
Wireless Mode AP, AP Client
ALARM AND EVENT MANAGEMENT
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Output N/A
Alarm N/A
Reset Button Yes
Power DC Power Port
Button Reset Button
On-board Storage Built-In Memory Card Slot, Support MicroSD Card,
Up to 256 GB
Built-in Microphone Yes
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Weight 195g
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Power Adapter
Mounting Accessories
Dimensions( H X W X D ) 174*80*71 mm
Material Plastic
Net Weight 0.31 Kg
Gross Weight 0.6 Kg
Power Consumption Max 8.5W (IR_LED+Sound_Light Alarm)
Power Supply 12V DC; 1A
Antenna Quantity: 2
Type: 2.4GHz Welded Dipole Omni-Directional Antenna
Gain: 2.0dBi
Protection IP66
Product Dimensions (L x W x H) 80× 173 × 71 mm (excluding antennas)
Certifications CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
VIDEO/IMAGE
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Frame Rate & Resolutions Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Max. Resolution 2560 X 1440
Video Streaming Main Stream
Sub-Stream
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness,
Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate Main Stream: 256 Kbps to 3 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Day/Night Switch Day/Night/Auto/Schedule-Switch
Privacy Mask Up to 4 Masks
SMART FEATURE-SET
Smart Event Human & Vehicle Classification, Area Intrusion
Detection, Line-Crossing Detection, People
Detection, Area Entrance Detection, Area Exiting
Detection, Abandoned Object Detection, Object
Removal Detection, Vehicle Detection
Basic Event Motion Detection, Video Tampering Detection,
Exception ( illegal login)
Linkage Method N/A
Alarm Linkage Memory Card Video Recording, Message Push,
Audible Warning, White Light Flashing
Output Notification Message Push
