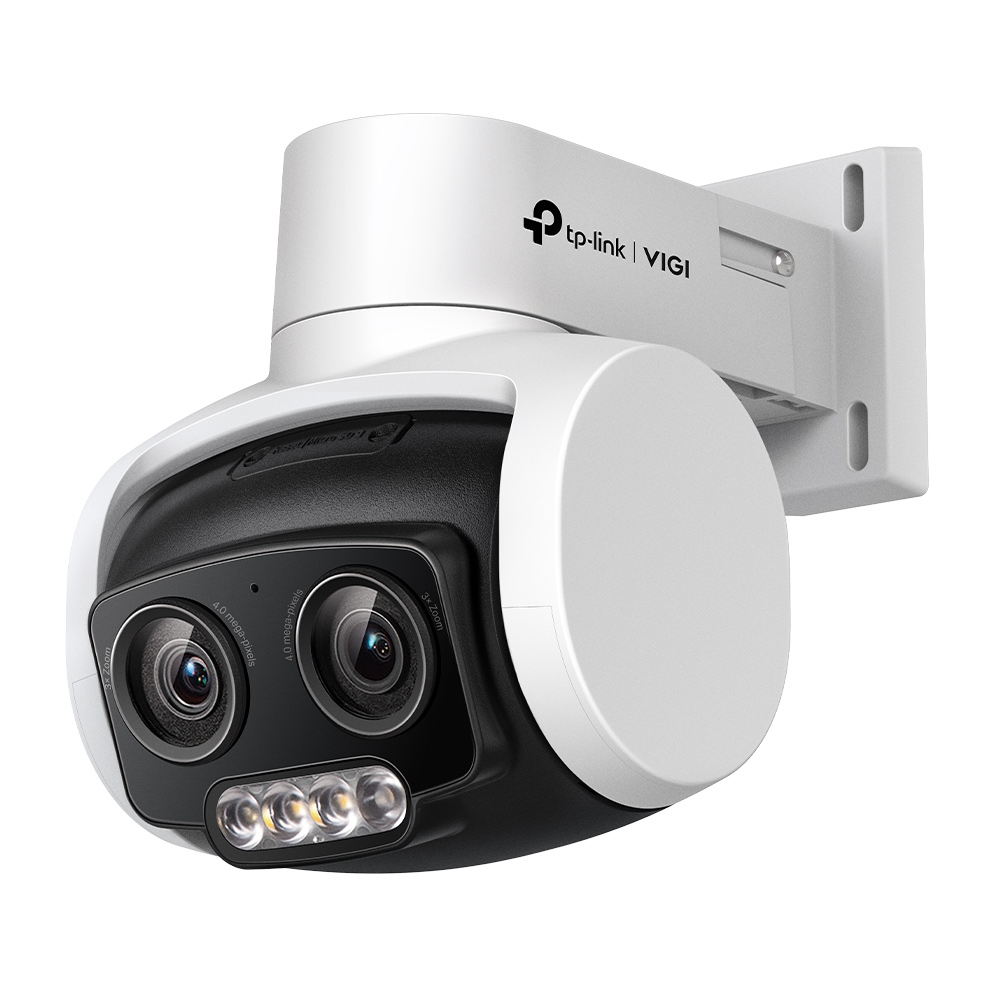

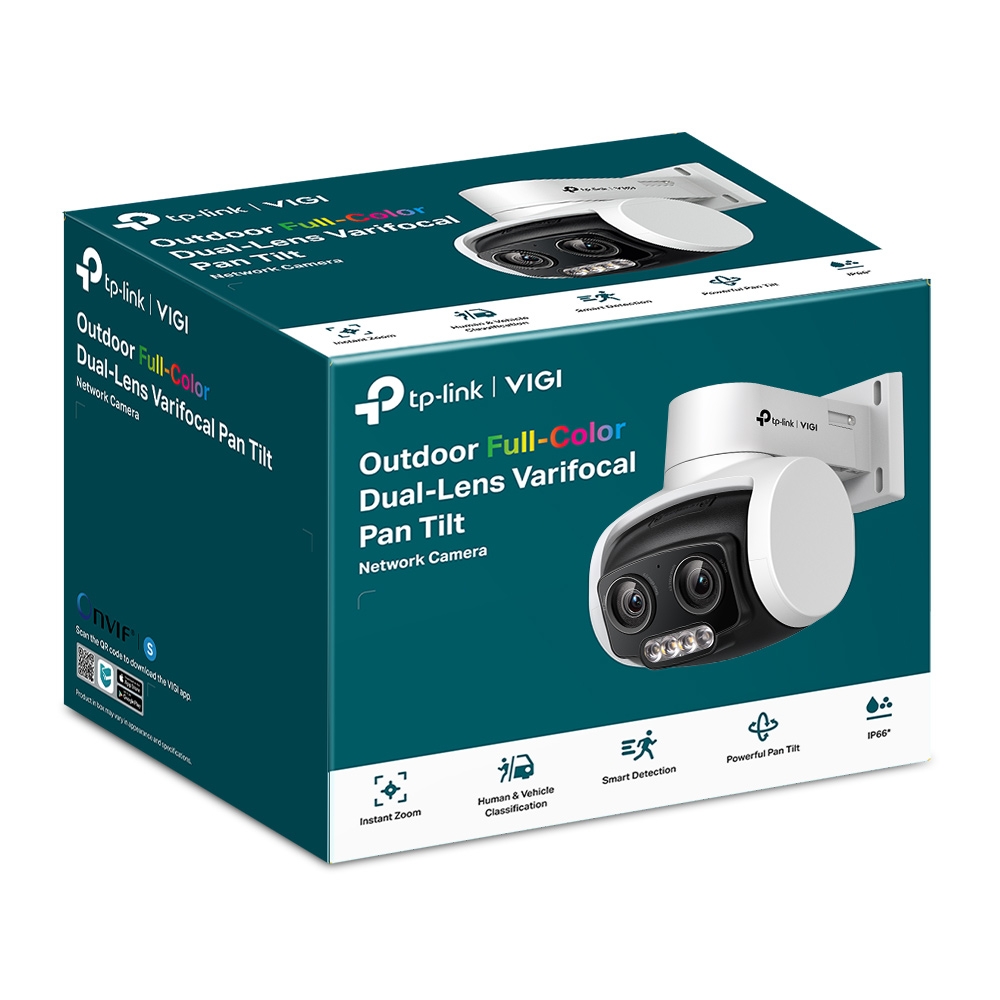

Tp-Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera

Κωδικός plus26: 173-428939

Κωδικός Εργοστασίου (MPN): VIGI C540V

Εγγραφείτε για τιμή

4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.

24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.

3× Zoom: Allows for closer viewing of objects in expansive areas.

Instant Zoom: Zooming is instant without suffering from delays and image dragging.

Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.

Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.

Active Defense: Warn potential intruders instantly with sound and light when abnormal events.

Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.

H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

IP66 Waterproof: Reliable IP66 for stable outdoor performance.

Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB)

LENS
Focal Length 4-12 mm (Mixed Zoom)
Aperture F1.6
FOV Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°
Lens Mount M12*P 0.5
DORI Distance • 4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

• 8 mm
Detect: 150 m (493 ft)
Observe: 63 m (205 ft)
Recognize: 30 m (98 ft)
Identify: 15 m (49 ft)

PTZ
Pan/tilt Range Pan: 0° to 332°, Tilt: 0° to 120°
Pan/tilt Speed Pan Speed:
Configurable from 8° to 44°/s; Preset Speed: 44°/s

Tilt Speed:
Configurable from 8° to 44°/s, Preset Speed 44°/s
Manual Control Speed Configurable from 8° to 35°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power-off Memory Yes;
Auto restore to previous PTZ and lens status after power failure
Park Action Yes;
Preset; Patrol Scan
3D Positioning Yes

Angle Adjustment (Manual)
Range Pan: 0° to 332°, Tilt: 0° to 120°

ILLUMINATOR
IR LED Quantity: 1
Range: 30m
Wavelength: 850nm
White LED Quantity: 3
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution 2560 X 1440
Main Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720
Sub-Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes

AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)

NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push

INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A

GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material Plastic
Net Weight 0.43 Kg
Gross Weight 0.66 Kg
Power Supply 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug
PoE: 802.3at, class 4, Max. 16 W
Protection IP66
Product Dimensions (L x W x H) 107× 136× 139 mm
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC

CAMERA
Image Sensor 1/3” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Zoom 3x Mixed Zoom
