LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°
Lens Mount M12
DORI Distance Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

Angle Adjustment (Manual)
Range Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°

ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution 2560 X 1440
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 640x480, 352x288, 320x240
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 3 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes

AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)

NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless Rate 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)
Wireless Security WPA/WPA2-PSK
ONVIF Yes
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Frequency 2.4 GHz

WIRELESS
WiFi Channels 1-13
Frequency 2.4 GHz
Wireless Transmit Power High
Auto Wireless Channel N/A
Wireless Statistics N/A
Throughput Monitoring N/A
Radio Bandwidth Auto: N/A
20M: Yes
40M: Yes
Wireless Rate 11Mbps(802.11b)
54Mbps(802.11g)
150/300Mbps(802.11n)
Wireless Security PWPA/WPA2-PSK
Wireless Mode AP, AP Client

ALARM AND EVENT MANAGEMENT
Smart Event Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push

INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input Built-in Microphone
Audio Output Built-in Speaker
Alarm N/A
Reset Button Yes
Power DC Power Port
Button Reset Button
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A

GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)

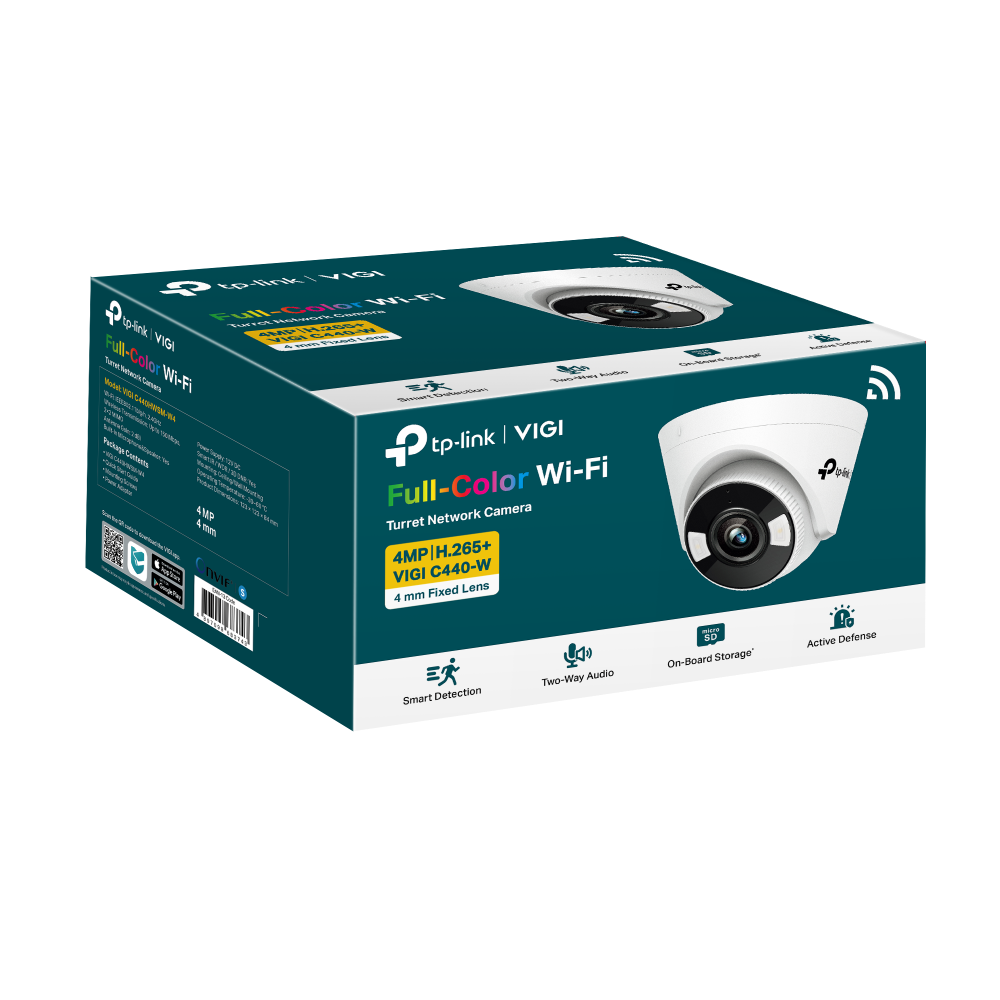

Package Contents VIGI Network Camera
Quick Start Guide
Screws and Anchors
Mounting Template
Power Adapter
Dimensions( H X W X D ) 123 × 123 × 84 mm
Material Plastic
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight 0.24 Kg
Gross Weight 0.53 Kg
Power Consumption 12V DC: Max 7W
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
Antenna Quantity: 2
Type: 2.4GHz Welded Dipole Omni-Directional Antenna
Gain: 2.0dBi
Protection N/A
Product Dimensions (L x W x H) 123× 83× 123 mm
Certifications CE, FCC, RCM, BSMI, VCCI, RoHS

VIDEO/IMAGE
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET
Smart Event Area Intrusion Detection, Line-Crossing Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( illegal login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region

CAMERA
Image Sensor 1/3” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Aperture 4 mm: F1.6
Lens Fixed focal lens (4 mm)
Lens Mount M12
Minimum Illumination 0 lux with IR/white Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Digital Noise Reduction 3D DNR
WDR DWDR
IR Working Distance 30m
Pan/Tilt Range Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Illumination Distance 30m (LED)
Viewing Angle (4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93°
