PERFORMANCE
Switching Capacity 25 Gbps
Packet Forwarding Rate 18.6 Mpps
MAC Address Table 4 K
Jumbo Frame 12 KB

SOFTWARE FEATURES
Advanced Features • 802.3X Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
Transfer Method Store and Forward

OTHERS
Certification CE, FCC ,RoHS

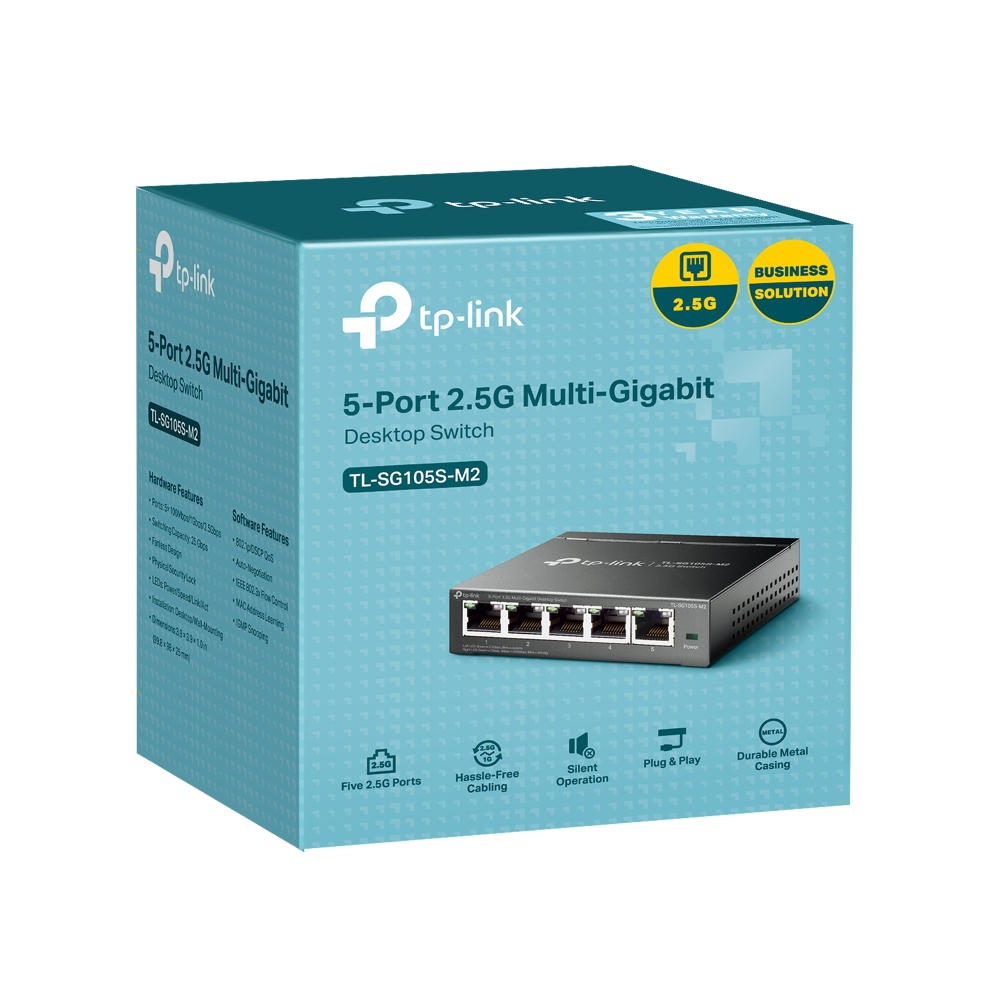

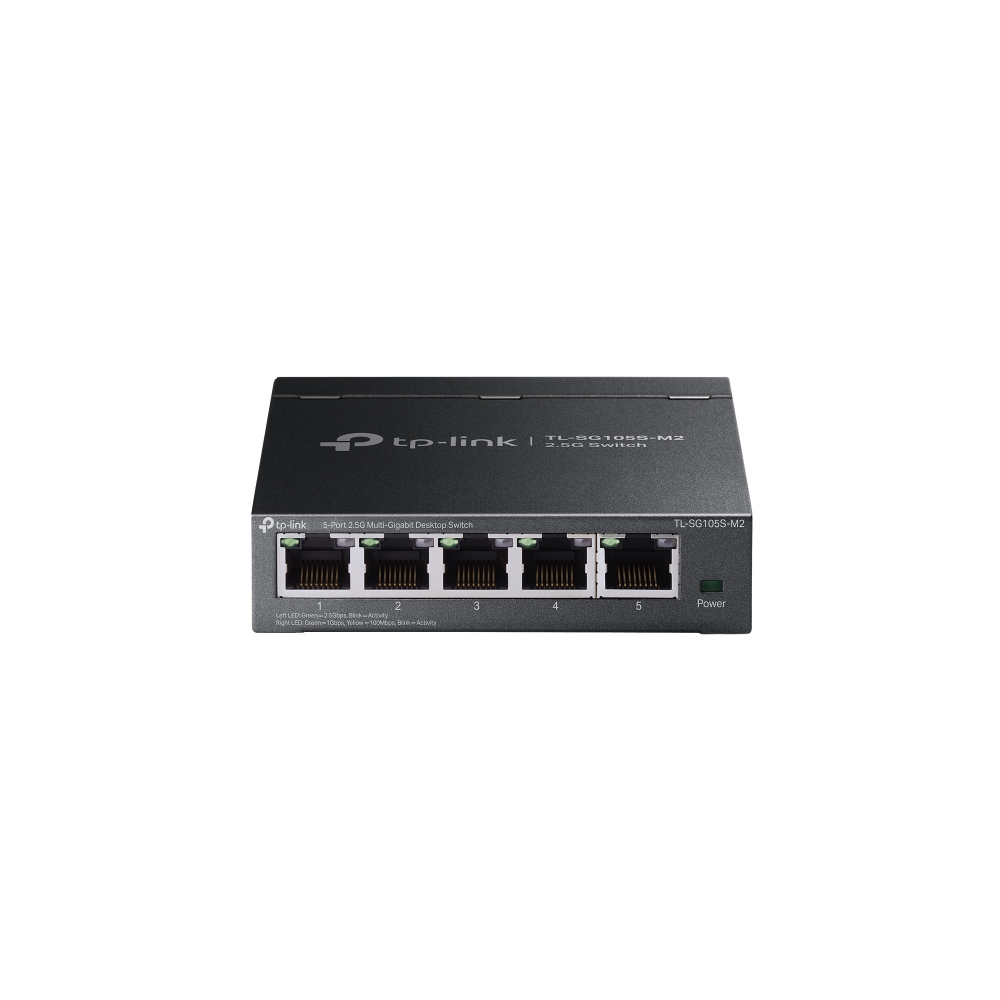

Package Contents • 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105S-M2
• Power Adapter
• Installation Guide
• Rubber Feet
Environment • Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

HARDWARE FEATURES
Standards and Protocols IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Interface 5× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 9 VDC / 0.6 A)
LED Indicator • Power
• Link/Act Indicators
Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max Power Consumption 5.81 W
Max Heat Dissipation 19.754 BTU/h
