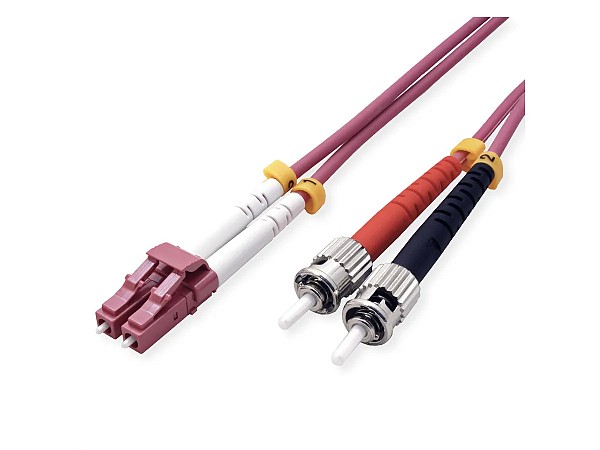

VALUE Fibre Optic Jumper Cable 50/125µm LC/ST OM4 violet 1m
Κωδικός plus26: 173-430636
Κωδικός Εργοστασίου (MPN): 21.99.8771-10
- OM4 fiber for existing 1 and 10 Gbit/s applications as well as future 40 and 100 Gbit/s systems. Allows extended reach upwards of 550 meters at 10 Gbit/s for ultra long building backbones and medium length campus backbones. With an laser bandwidth of 4700 MHz-km (more than double the IEEE requirement for 10 Gbit/s 300 meter support), the OM4 fiber is also especially well suited for shorter reach in data centers and high performance computing applications.
- VALUE OM4 Fibre Optic Jumper cable with fiber type 50/125 µm
- Color: violet
- Available lengths: 0.5m 1m 2m 3m, 5m and 10m
- Manufacturer VALUE
- Product group Fibre optic cable
- Product type Fibre Optic Jumper Cables OM4
- Colour violet
- Length 1 m
- Quantity of fibre 2
- Conductor composition Compact conductor
- Cable type Duplex Cable
- External cable no
- Fibre section Multi mode 50/125µm OM4
- Connection ports LC / ST
- Side 1 Connector Type LC
- Side 2 Connector Type ST
- Min. Bending radius, static 30 mm
- Min. Bending radius, dynamic 60 mm
- Colour (Cable) violet
- Aramid strain relief yes
- External cable diameter 2,8x6 mm
- Mantle of external cable PVC
- Cable LSOH no
- Max. insertion loss 0.3 dB
- Min. return loss 30 dB
- Weight 26.7 g
- Height of packaging (single piece) 10 mm
- Width of packaging (single piece) 130 mm
- Depth of packaging (single piece) 130 mm
- Package weight (single piece) 0.05 kg
