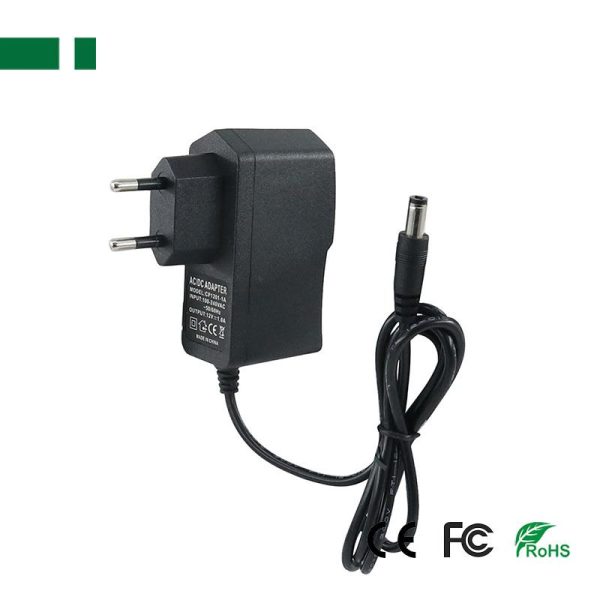

Model: CP1205-1A
OUTPUT -Output Current Range: 0-1A
-DC Output Voltage: 5V±10%
-Wave and Noise: 120mVp-p
-DC Output Power: 5W
-Efficiency: 85%
-DC Voltage Adjustable Scope: (at full load）≦0.5%
INPUT -Voltage Range: 85~264VAC      47-63Hz
-Input Current: 0.14A/115V, 0.07A/230V
-Leakage Current: <1mA/ 240VAC
-Inrush Current: Cold start 20A/120VAC, 40A/230VAC
PROTECTION -Over-Load: 105%~135%,  Protection type: Constant current limiting,
recovers automatically after fault condition is removed
-Over-Voltage: 105%—150% Rated Voltage, Protection type: Shut off
-High-Temperature:

RTH3>=65°C FAN ON<=55°C,  FAN OFF>=80°C

Cut Off Output(5~15V)

ENVIRONMENT -Working Temperature:   -10°C~+50°C
  -Working Humidity: 20~90%RH
-Store Temperature:   -20°C~+85°C
-Store Humidity: 10~95%RH
-Temperature Co-Efficient: ±0.03%°C(0~50°C)
-Vibration: 10~500Hz, 2G 10min./1cycle, Period for 60min, EACH AXES
SAFETY -Withstand Voltage: I/P-O/P: 1.5KVAC,    I/P-FG: 1.5KVAC,    O/P-FG: 0.5KVAC
-Isolation Resistance: I/P-O/P,    I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD -CE EMC Standard:

EN55015:2013+A1:2015, EN61547:2009

EN61000-3-2:2014, EN61000-3-33:2013

-CE LVD Standard: EN61347-2-13:2014+A1:2017,  EB61347-1:2015
-ROHS Standard:

IEC 62321: 2013, EPA3050B:1996,

EN1122:2001, EPA3052:1996, EPA3060A, etc.

OTHER -Dimensions: 70*39*31mm(L*W*H)
  -Weight: 0.058kg
