Τεχνικά Χαρακτηριστικά:

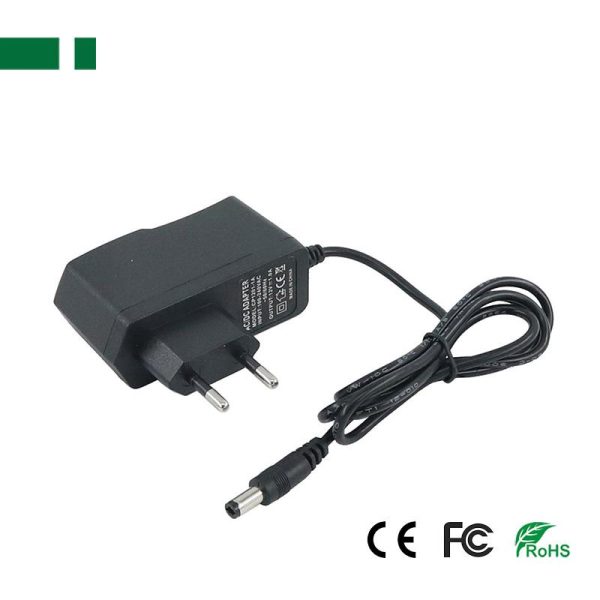

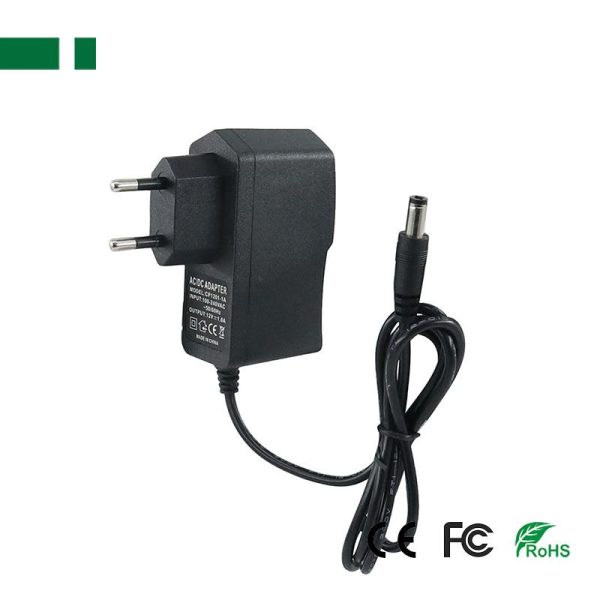

Model CP01201-2A
Output DC output Voltage 12V±10%
Output Current Range 0-1A
Wave and Noise 120mVp-p
DC output Power 12W
Efficiency 85%
DC Voltage Adjustable Scope (at full load）≦0.5%
Input Voltage Range 85~264VAC 47-63Hz
Input Current 0.14A/115V, 0.07A/230V
Leakage Current <1mA/ 240VAC
Inrush Current Cold start 20A/120VAC, 40A/230VAC
Protection Over-load 105%~135%, Protection type: Constant current limiting,
recovers automatically after fault condition is removed
Over-voltage 105%—150% Rated Voltage, Protection type: Shut off
High-temperature RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment Working temperature and humidity -10°C~+50°C, 20~90%RH
Store temperature and humidity -20°C~+85°C, 10~95%RH
Temperature coefficient ±0.03%°C(0~50°C)
Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Safety Withstand voltage I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
  Isolation resistance I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC
Standard CE EMC Standard EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
  CE LVD Standard EN61347-2-13:2014+A1:2017, EB61347-1:2015
  ROHS Standard IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.
Other Dimension 70*39*31mm (L*W*H)
  Weight 0.058kg

Protection Over-load 105%~135%,  Protection type: Constant current limiting,
recovers automatically after fault condition is removed Over-voltage 105%—150% Rated Voltage, Protection type: Shut off High-temperature RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) Environment Working temperature and humidity -10°C~+50°C,   20~90%RH Store temperature and humidity -20°C~+85°C,   10~95%RH Temperature coefficient ±0.03%°C(0~50°C) Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES Safety Withstand voltage I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC Isolation resistance I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC Standard CE EMC Standard EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 CE LVD Standard EN61347-2-13:2014+A1:2017, EB61347-1:2015 ROHS Standard IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. Other Dimension 70*39*31mm (L*W*H) Weight 0.058kg   1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. I/P-O/P: Input and output interval,  I/P-FG: Input and enclosure,  O/P-FG: Output and enclosure
