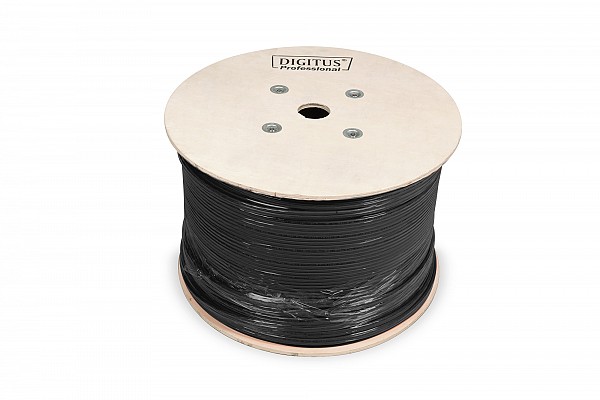

Digitus SFTP 500m Cat7 outdoor/direct burial 1200Mhz

Κωδικός plus26: 173-424448

Κωδικός Εργοστασίου (MPN): DK-1741-VH-5-OD

Εγγραφείτε για τιμή

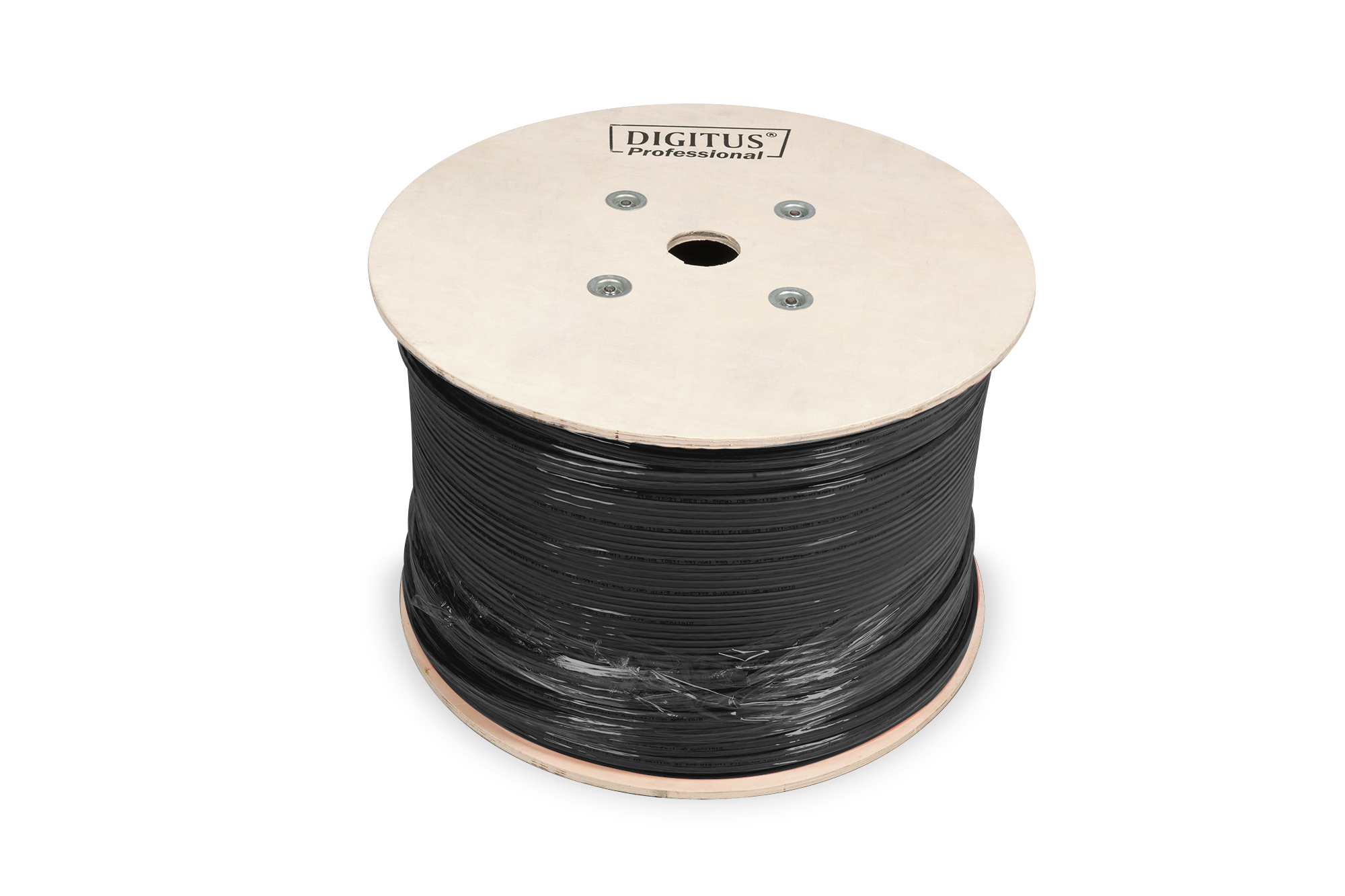

DIGITUS CAT 7 S-FTP PiMF installation cable, raw 500m, drum, AWG 23/1, 1200 MHz, PE, sx, bl

Future-oriented standards and high-end quality for your network.

10GBit Ethernet

1200 MHz transmission frequency

Permanent link certified

PoE Power over Ethernet support

PE outer jacket, CPR class Eca inner jacket

The Digitus® Professional Cat.7 S/FTP burial installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 1200 MHz. The cable has a PE outer jacket and a halogen free inner jacket and is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for installations in dry or wet areas, outdoor or ground. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

Technical details

Physical properties:
Conductor: Bare annealed copper, solid AWG 23/1
Insulation: SFS-PE (Foam-Skin Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shielding: Aluminum foil, providing 100 % coverage
Overall shielding: Copper wire braid
Outer sheath: PE (Polyethylene); UV resistant
Outer sheath diameter (nominal): 0.50 mm nominal
Outer sheath color: Black (RAL 9005)
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +60 °C
Operating temperature range: -50 °C up to +60 °C
Installation temperature range: 0 °C up to +60 °C
Overall diameter Simplex (nominal): 8.5 mm nominal (Eca)
Weight (kg/km): 66.5 kg/km
Electrical properties:
Impedance: 100±5 Ohm @ 4-100 MHz; 100±25 Ohm @ 100-1200 MHz
Capacitance: 45 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: CA-Type 1b
Signal propagation delay: 450 nS/100 m max.
Delay difference: 10 nS/100 m max.
Separating class: “d” acc. to EN 50174-2
NVP: 79%
Assortment: Twisted Pair Installation Cables
Category: CAT 7
Shielding: S-FTP, pairs in metal foil and braid shielding
CPR: Eca
Length: 500 m
Color: black
Jacket: PE
Structure: 4 x 2 AWG 23/1, solid twisted pair
