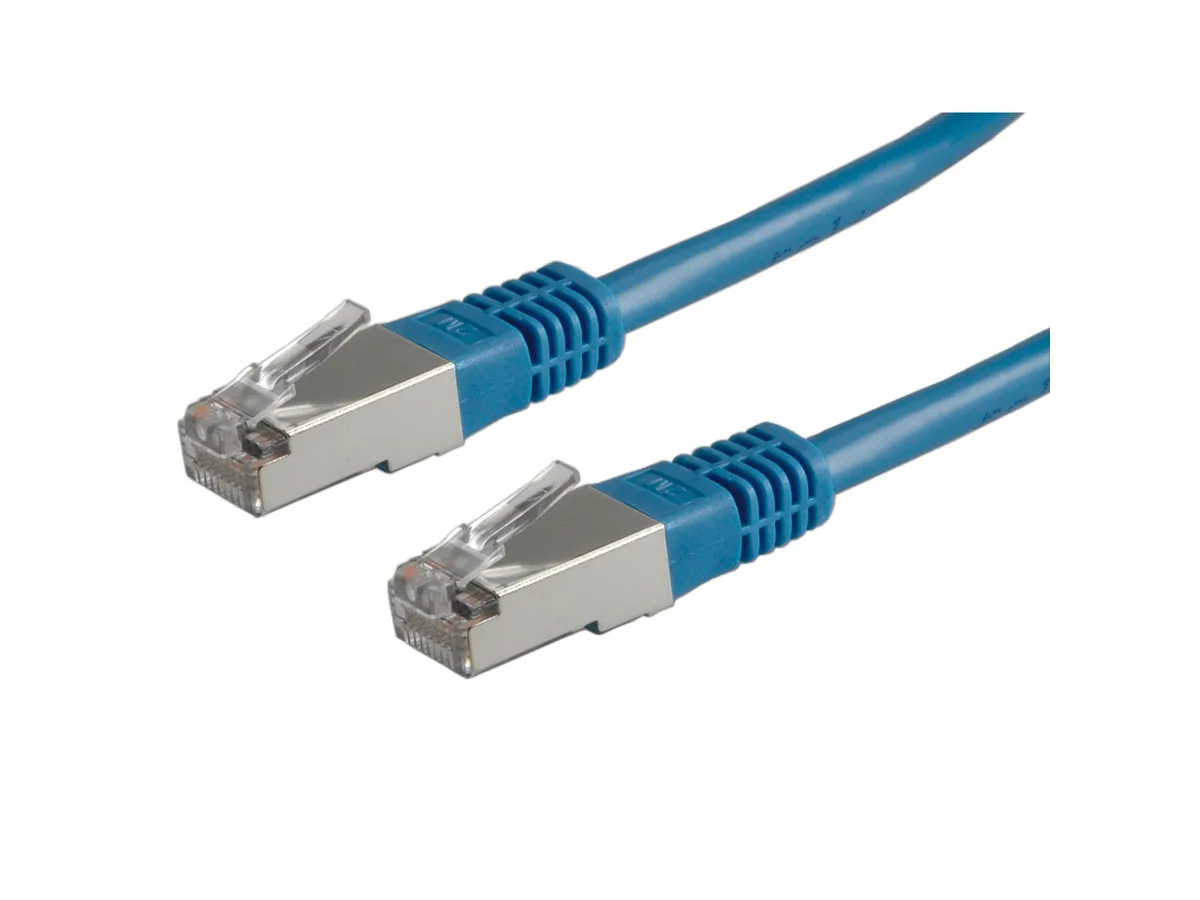

VALUE SFTP 0.5m Cat6 Μπλε PIMF 21.99.1324
Κωδικός plus26: 173-422807
Κωδικός Εργοστασίου (MPN): 21.99.1324-250
Patch cable for networking connections between devices. Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. Plugs with gold plated contacts. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 4-pair stranded wire. Complete braid shielding. Pairs shielded with aluminium clad polyester foil.
For a structured cabling system we recommend to use the following components: ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m); VALUE Cat.6 Flush/Surface Mount Wall Jack, shielded, white: 25.99.8492/25.99.8392; VALUE Cat.6 19" Patch Panel, 24 Ports, shielded: 26.99.0353 (black), 26.99.0354 (grey); VALUE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.99.0805. Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.
- Manufacturer VALUE
- Product group Twisted Pair Cable
- Product type S / FTP patch cable PiMF
- Colour blue
- Length 0.5 m
- Shield type PiMF
- Transfer quality Cat6 / Class E
- Impedance 100 Ohm
- Quantity of wires 8
- Conductor type Wire
- Crossed no
- Assignment 1:1
- Locking lever no
- Anti-kink sleeve Moulded-on
- Colour (Spout) blue
- Cable LSOH no
- Side 1 Connector Type RJ-45
- Side 1 Connector Gender Male
- Side 2 Connector Type RJ-45
- Side 2 Connector Gender Male
- Connector Type RJ45 Standard
- Operating temperature min. -20 °C
- Operating temperature max. 60 °C
- Weight 20.8 g
- Height of packaging (single piece) 10 mm
- Width of packaging (single piece) 100 mm
- Depth of packaging (single piece) 110 mm
- Package weight (single piece) 0.03 kg
