SECURITY
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network • 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
VPN Server • OpenVPN
• PPTP
• L2TP
VPN Client • OpenVPN
• PPTP
• L2TP
WiFi Encryption • WPA3*
• WPA2
• WPA
• WPA/WPA2-Enterprise (802.1x)

HARDWARE
Ethernet Ports • 1× 2.5 Gigabit WAN/LAN Port
• 1× Gigabit WAN/LAN Port
• 3× Gigabit LAN Ports
USB Support 1× USB 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Wi-Fi/WPS Button
Power On/Off Button
Reset Button
Power • 12 V/ 2 A (US Version)
• 12 V/ 1.5 A (EU Version)

SOFTWARE
Protocols • IPv4
• IPv6
Service Kits HomeShield
Learn More>
EasyMesh Mesh networking creates smooth, fast, stable roaming. Archer AX55 Pro can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
Learn More>
Parental Controls HomeShield Parental Controls
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
WAN Types • Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service QoS by Device
Cloud Service • Auto Firmware Upgrade
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
NAT Forwarding • Port Forwarding
• Port Triggering
• DMZ
• UPnP
IPTV • IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP • Address Reservation
• DHCP Client List
• Server
DDNS • TP-Link
• NO-IP
• DynDNS
Management • Tether App
• Webpage
Check Web Emulator>

OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing

TEST DATA
WiFi Transmission Power • CE:
<20dBm(2.4GHz)
<23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz)
<30dBm (5.47GHz~5.725GHz)
• FCC:
<30dBm (2.4GHz)
<30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz)
<24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz)
WiFi Reception Sensitivity • 2.4 GHz:
11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm,
11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm
• 5 GHz:
11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm,
11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm,
11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm,
11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm,
11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm

PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 × 1.5 in
(261.1 × 134.5 × 41.0 mm)

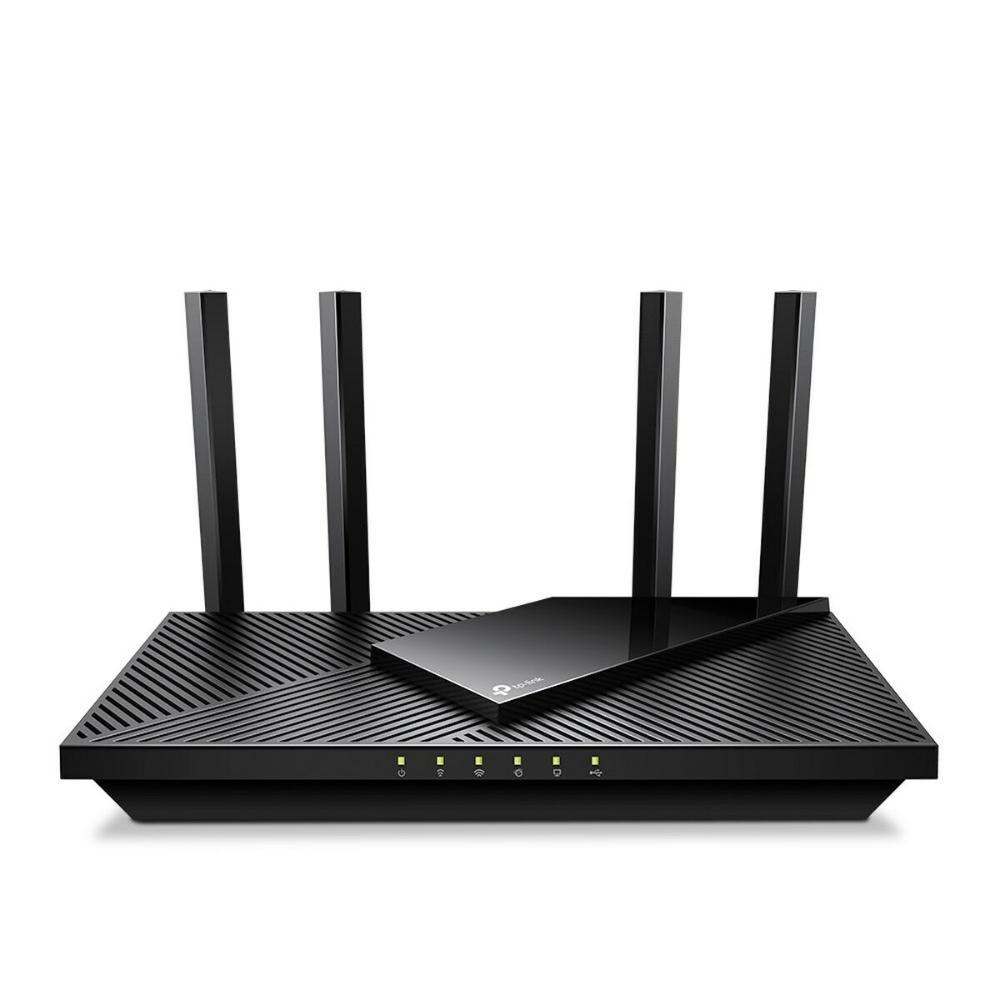

Package Contents • Wi-Fi Router Archer AX55 Pro
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

WIRELESS
Standards Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX3000
• 5 GHz: 2402 Mbps (802.11ax, HE160)
• 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 3 Bedroom Houses
• 4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

• Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

• High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity High
• Dual-Band
Allocate devices to different bands for optimal performance

• OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

• Airtime Fairness
Improves network efficiency by limiting excessive occupation

• DFS
Access an extra band to reduce congestion

• 4 Streams
Connect your devices to more bandwidth
Working Modes • Router Mode
• Access Point Mode
