- Cable length: 0.50 m
- Full copper 32AWG wires, 50µ gold RJ-45 contacts
- Outer diameter jacket of only 3.8mm to improve air flow in cabinet
- Snagless boots
- For connecting two active devices e.g. a switch and a nas
- Specifications comply to international standards
- Cables are 100% tested
- 5 Year warranty

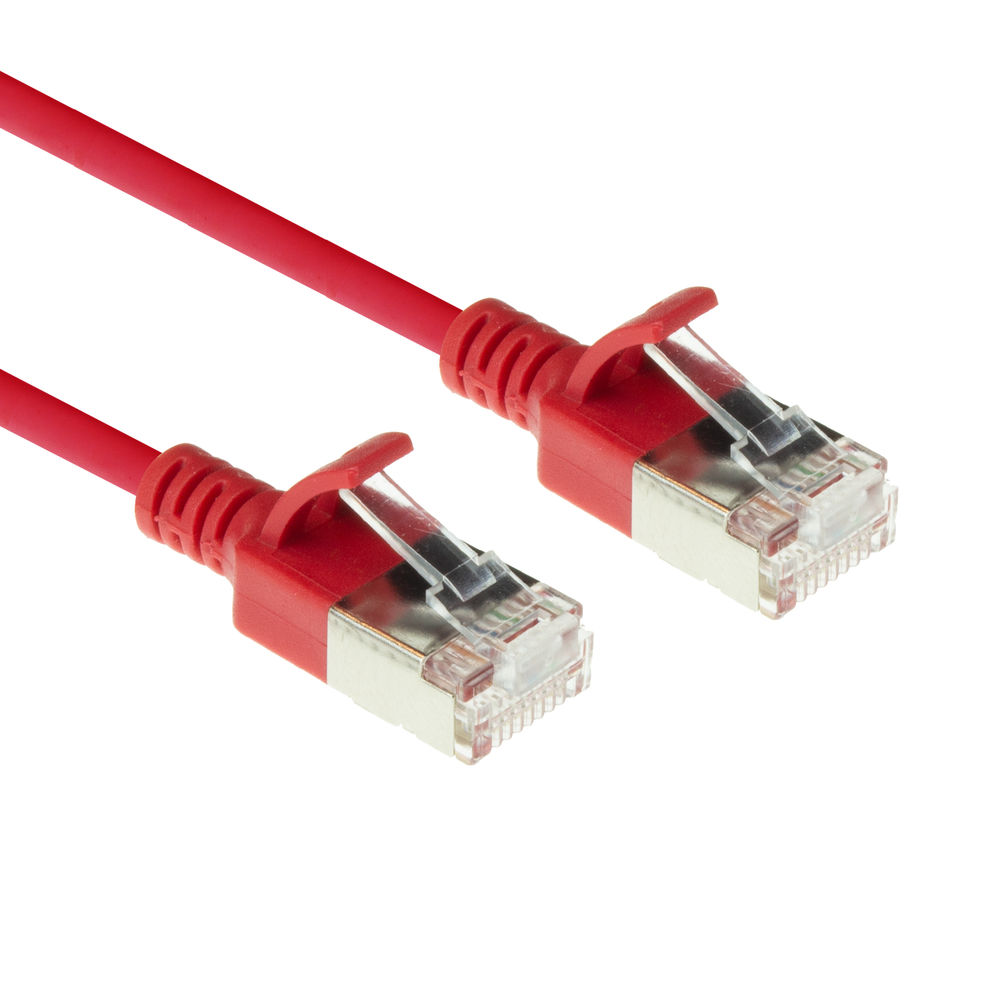

CAT6A U/FTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6A patch cords. The bending radius is lower in comparison with regular patch cords. This results in a better airflow in the server rack/network cabinet.
Although, ISO/IEC and TIA standards describe the use of patch cords between 22 and 28 AWG, it is possible to use 32 AWG patch cables. This results in a higher attenuation, particularly at higher frequencies.
- Brand ACT
- Product category CAT6A patch cables U/FTP
- Cable length 0.5 m
- Connector type RJ45
- Connector A RJ45 male (x1)
- Connector B RJ45 male (x1)
- Contact plating Gold plated
- Connector contact plating Gold plated
- Mating cycles 750
- Shielding type U/FTP
- Category CAT6A
- Conductor material Copper
- Wire gauge 32 AWG
- Outer jacket LSZH
- Impedance 100 Ω
- Bandwidth 500 MHz
- Cable colour Red
- Colour number RAL 3031
- Min. working temperature -20 °C
- Max.working temperature 75 °C
- Brand item no. DC7500
- EAN code 8716065442052
