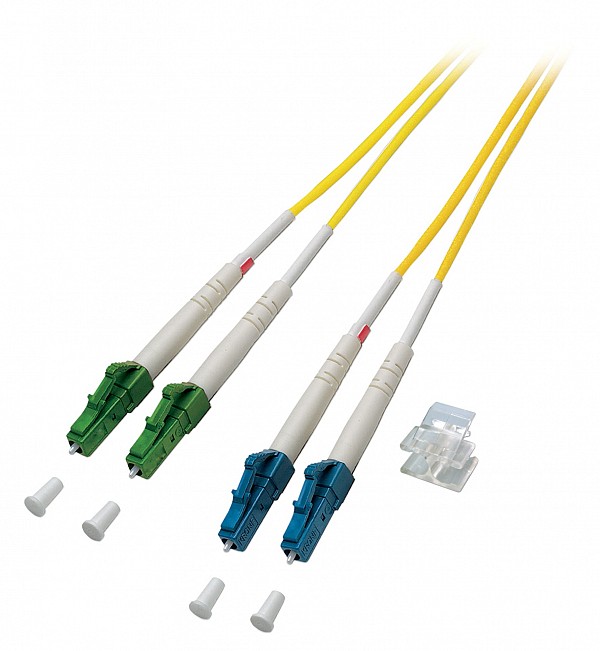

EFB F/O LC/APC-LC SINGLE MODE 1m
Κωδικός plus26: 173-416155
Κωδικός Εργοστασίου (MPN): O0384.1
- Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
- Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
- Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
- Features of EFB fiber optic patch cables
- Tension relief reinforced with aramid yarn
- Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
- EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
- 100% tested and with individual measurement report
- (Halogenfree): acc. IEC60754-1
- APC version: Ja
- APC version Connector 1: 8°
- Anti-kink sleeve: put-on
- Bend optimized fiber: no
- Cable Conform to Standard: IEC 60793-2
- Cable structure: Duplex
- Cable type: I-V(ZN) H
- Cable Ø: 2.0 mm
- Category: OS2 G652D
- Colour outer sheath: gelb
- Connector Conform to Standard: IEC 61754-20
- Connector colour 1: green
- Connector colour 2: blue
- Fibre type: Singlemode 9/125
- Flame retardant: according to EN 50265-2-1
- Halogen free (according to EN 50267-2-3): True
- Jacket material: LSZH
- Low smoke: acc. IEC61034-1
- Max. Tension: 160 N
- Min. Bending radius (Dynamic): 20xOD
- Min. Bending radius (Static): 10xOD
- Number of fibers: 2
- Operating Temperature: -20 – 75 °C
- Quality class singlemode: B/2 acc. IEC 61753-1
- Storage Temperature: -20 – 85 °C
- Type of connector connection 1: LC-Duplex
- Type of connector connection 2: LC-Duplex
