Description

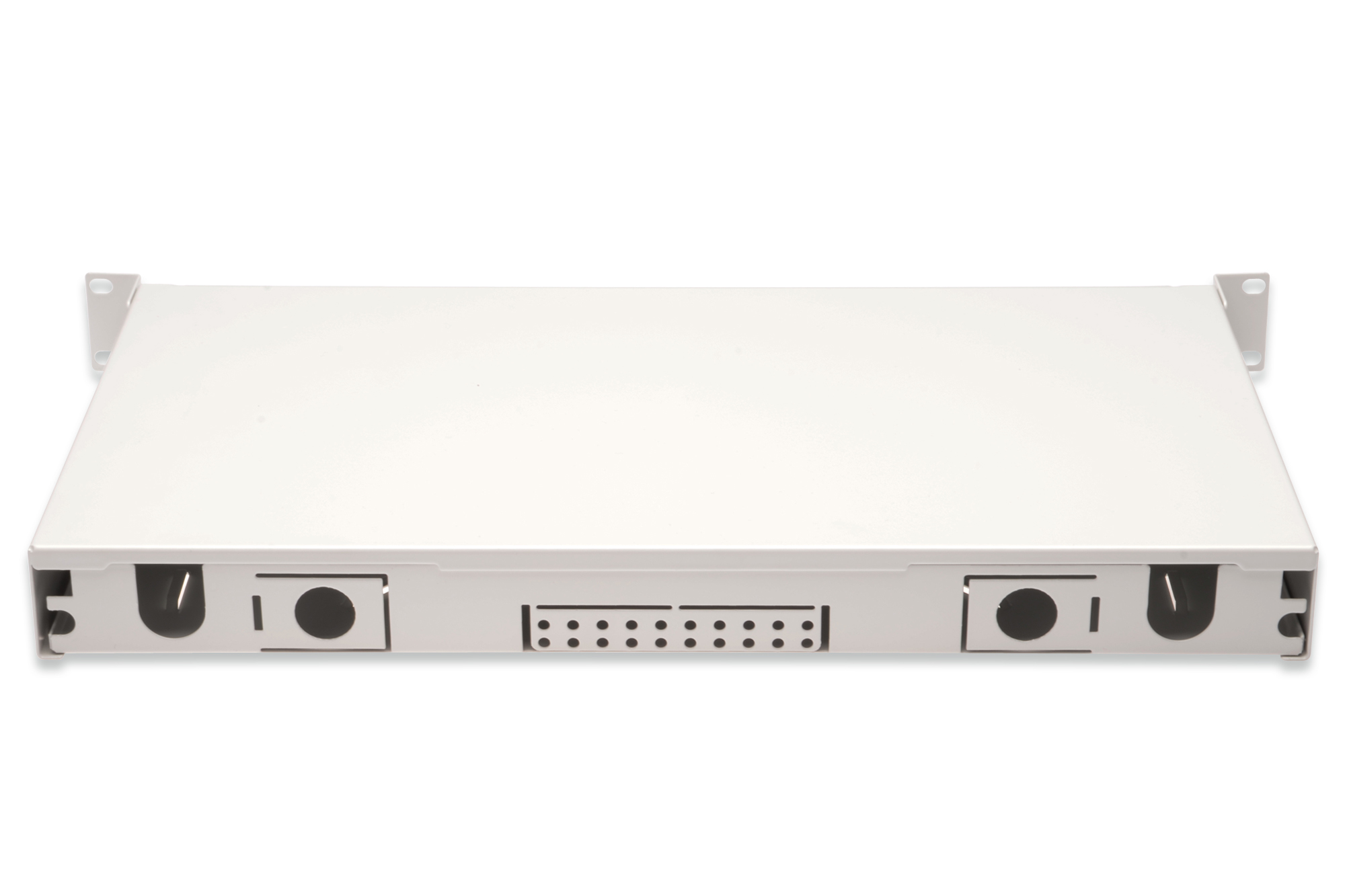

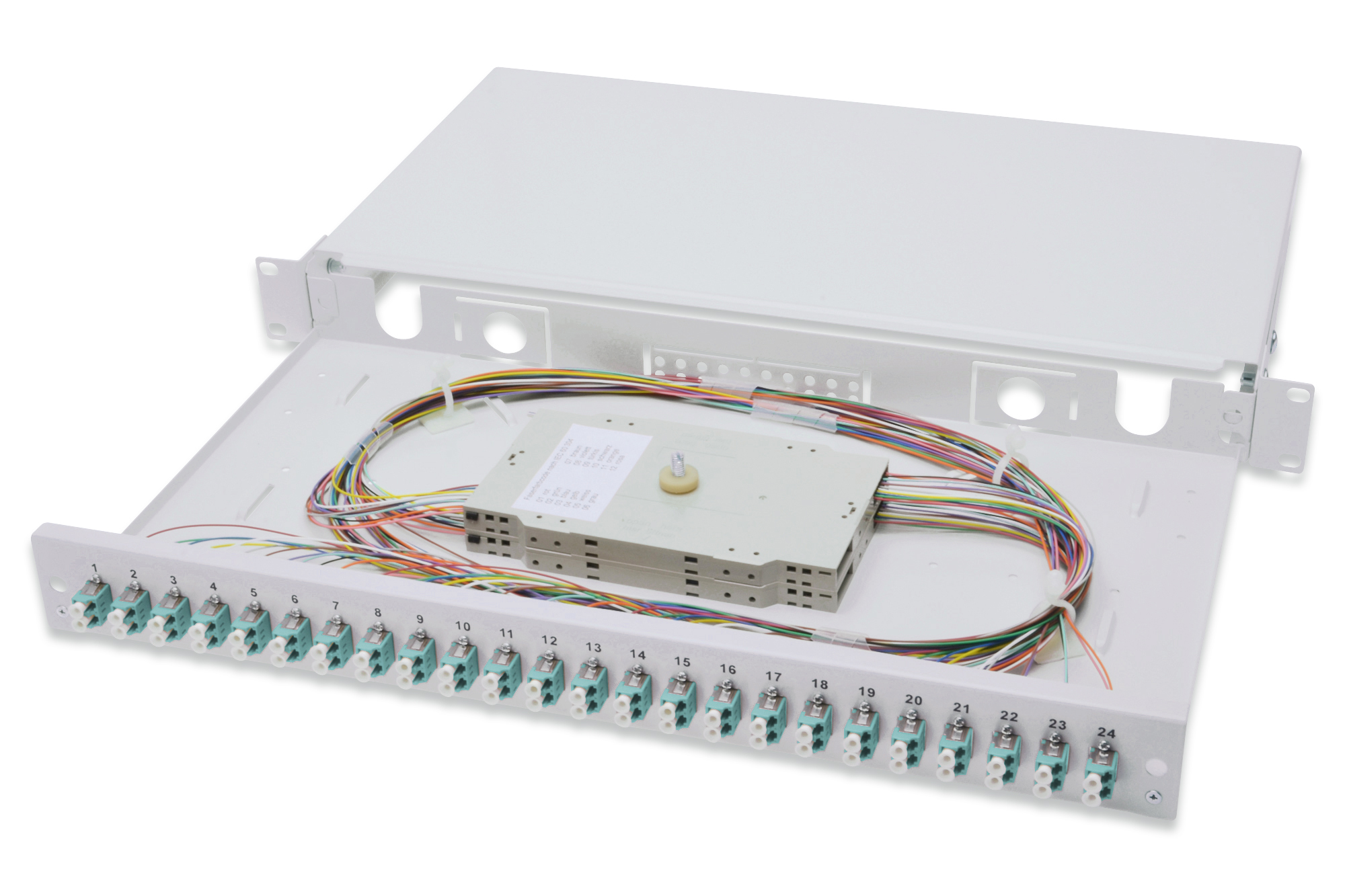

FO splice box, 1U, equipped, 24x LC DX, OM3,incl. splice cassette, colored pigtails, couplers

Technical details

• Completely prefabricated, fiber pigtails exposed and inserted into the splice cassette(s)
• Colored pigtails
• Couplers with zirconia ceramic ferrule
• Couplers in polymer housing
• Carrier housing made of 1.0 mm steel sheet, varnished
• 1 height unit (44.45 mm)
• 483mm width (19")
• 240mm depth
• M20/M25 screw, cassette, cassette cover and strain relief included
• Sliding
• Assembly: Splice Box
• Color: light grey, RAL 7035
• Connector type: LC / UPC / duplex
• Fiber class: OM3
• Number of fibers: 48
• Type: sliding
