Digitus PATCHPANEL 12 PORT CAT6a 0.5U 10

Digitus PATCHPANEL 12 PORT CAT6a 0.5U 10" STP DN-91612S-SL-EA

Κωδικός plus26: 173-380005

Κωδικός Εργοστασίου (MPN): DN-91612S-SL-EA

Εγγραφείτε για τιμή

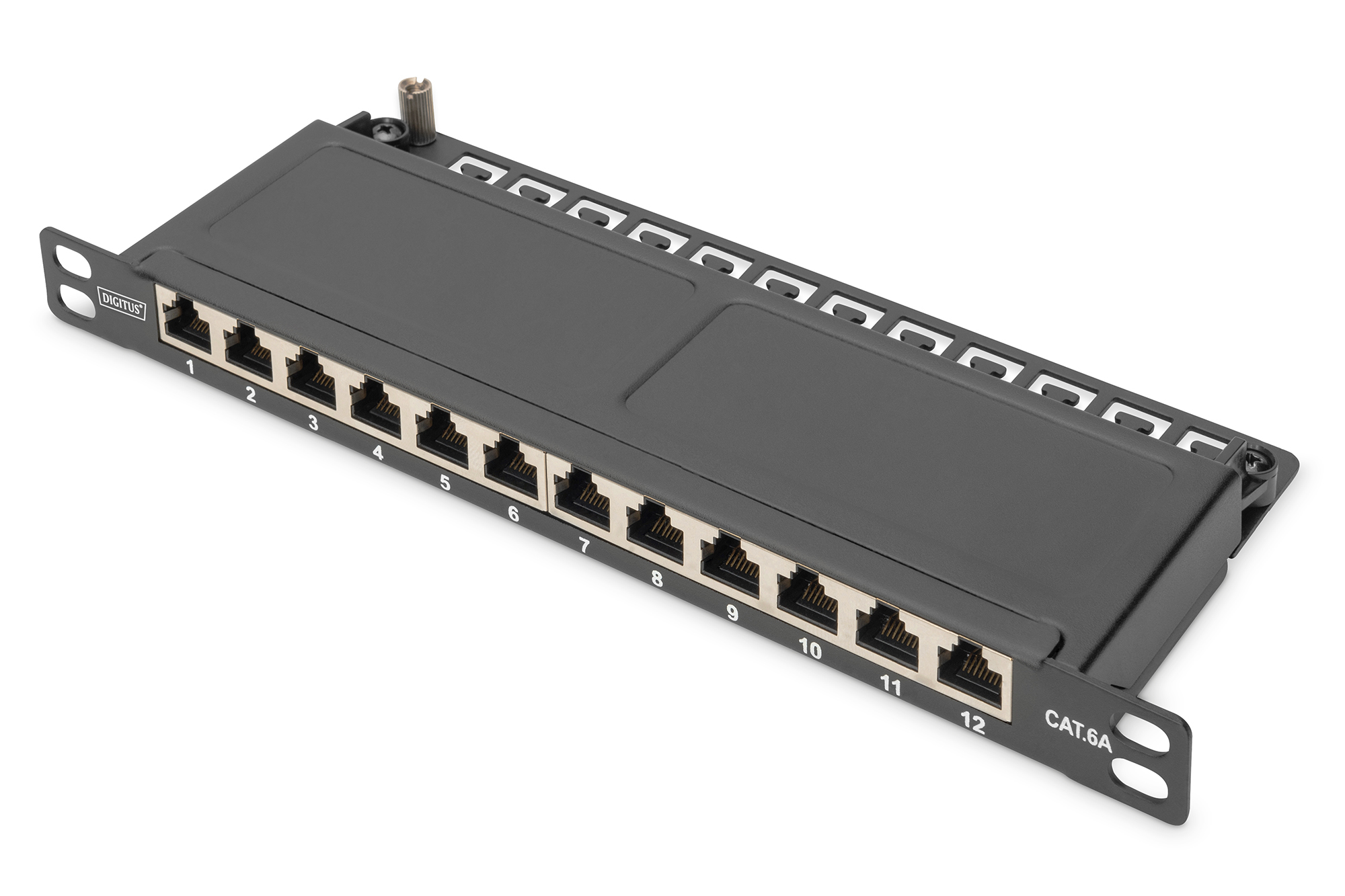

The DIGITUS® 12-port 0.5U Patch Panel offers a high density. As the panel is only 0.5U in height, it allows to present 24 ports on 1U (2 panels with 12 ports each) which can be installed. It complies with the 802.3at PoE+ and the 802.3af PoE standard.

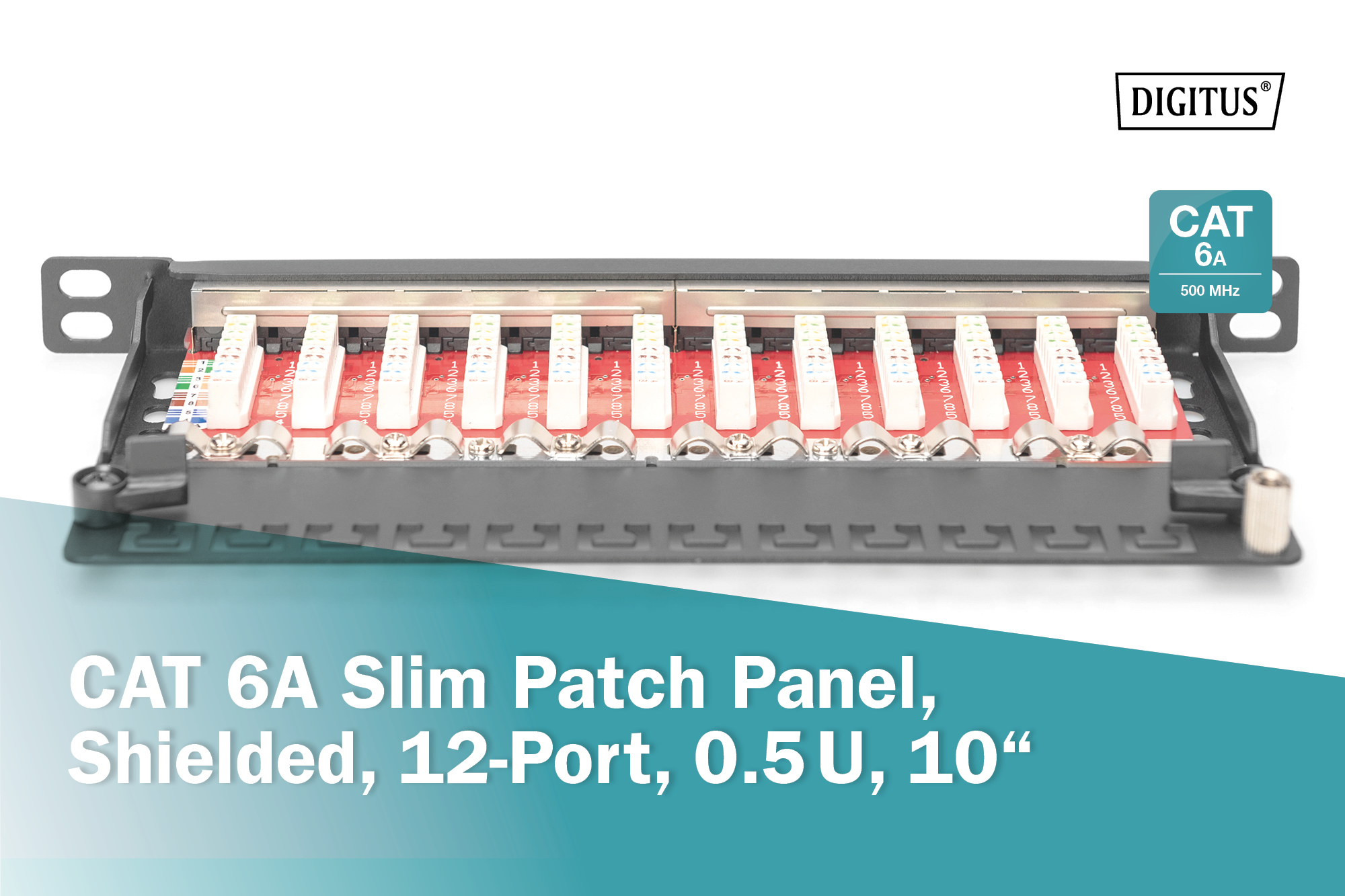

CAT 6A Patch Panel, shielded,12-Port 1/2U, 10" rack mount, black RAL 9005

Save a lot of space (only 0.5U) - Best performance and link quality for your network

0.5U
Complete shielding of housing and shield contact
Cable installation by IDC-strips
Central grounding connector
Dielectric strength up to 1500 VDC (contact/ground)
802.3at PoE+ and the 802.3af PoE
360° shield coverage
Wall mounting possible
Transmission properties: Category 6A, Class EA
Area of application: Up to 500 MHz, 10GBase-T
Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
Suitable for 254 mm (10") cabinet mounting

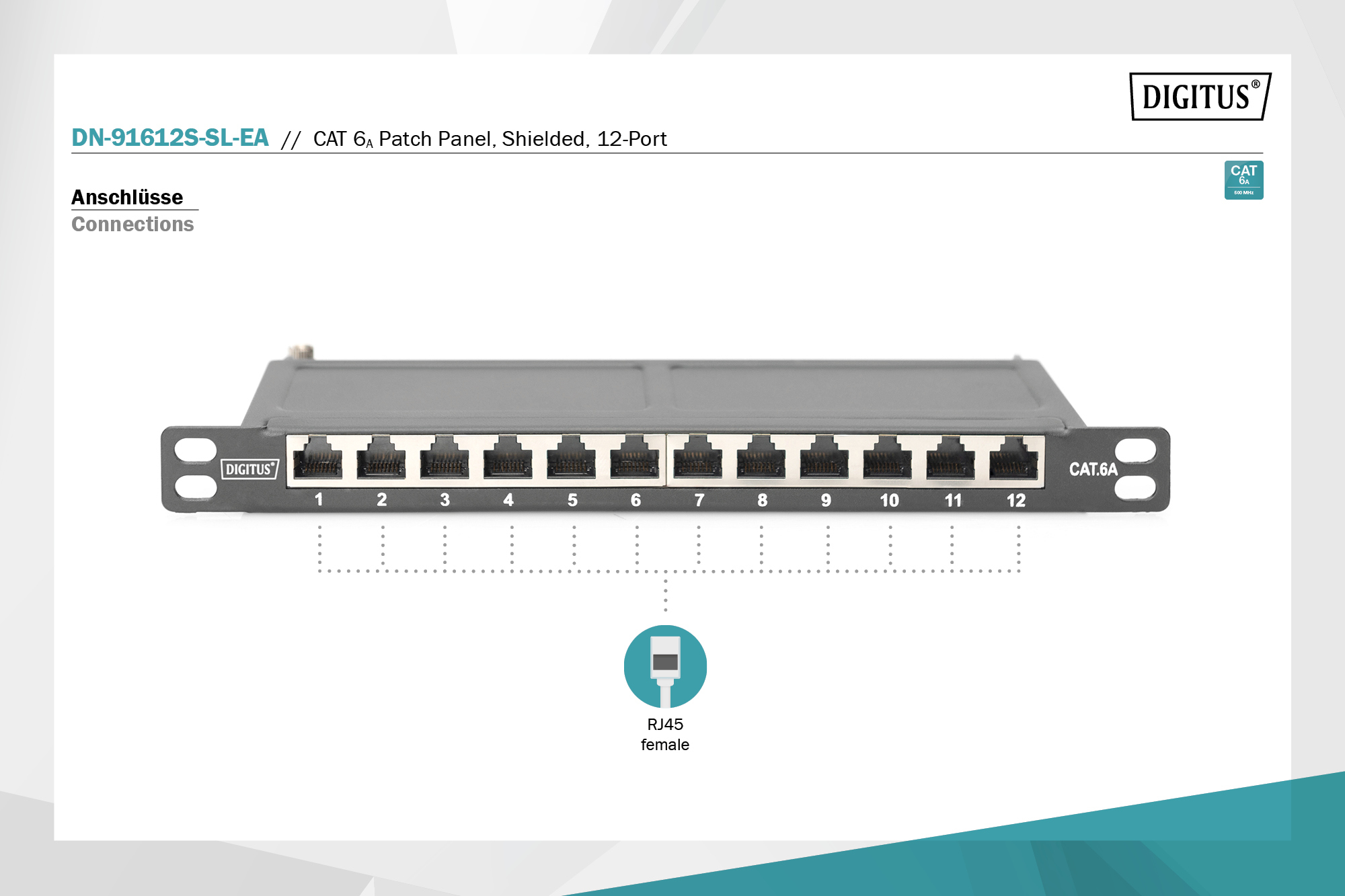

RJ45 female, 12P12C

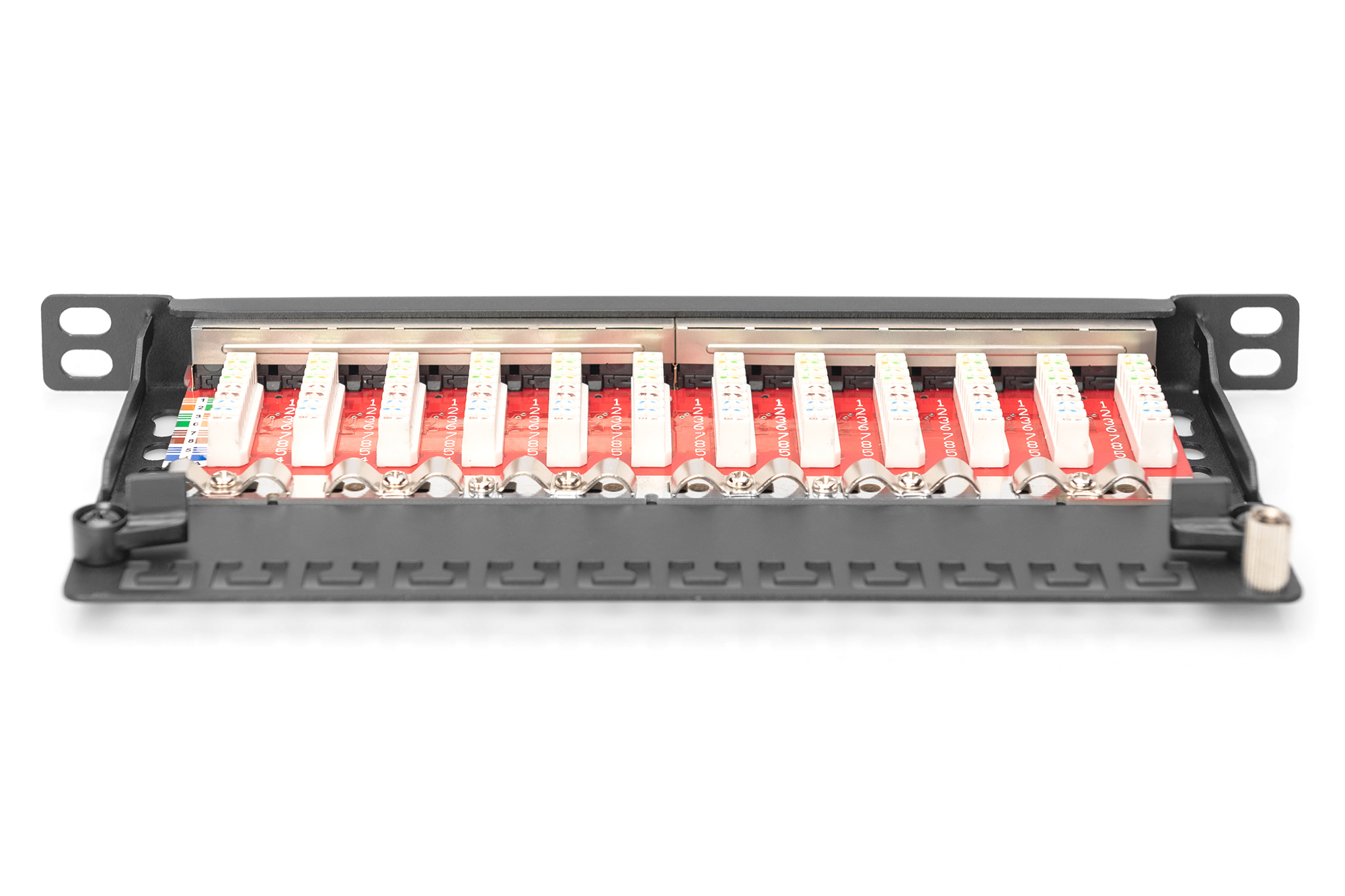

Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Cable fixing with smart cable ties
Central ground connection
360° shield coverage
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: LSA+, UL 94V-0, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Ground wire: Not included
Color: black, RAL 9005
Ports: 12
Units: 0
Category: CAT 6A
