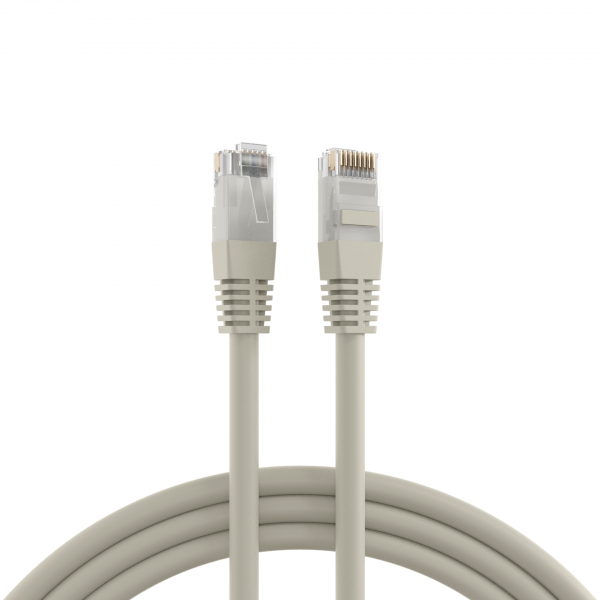

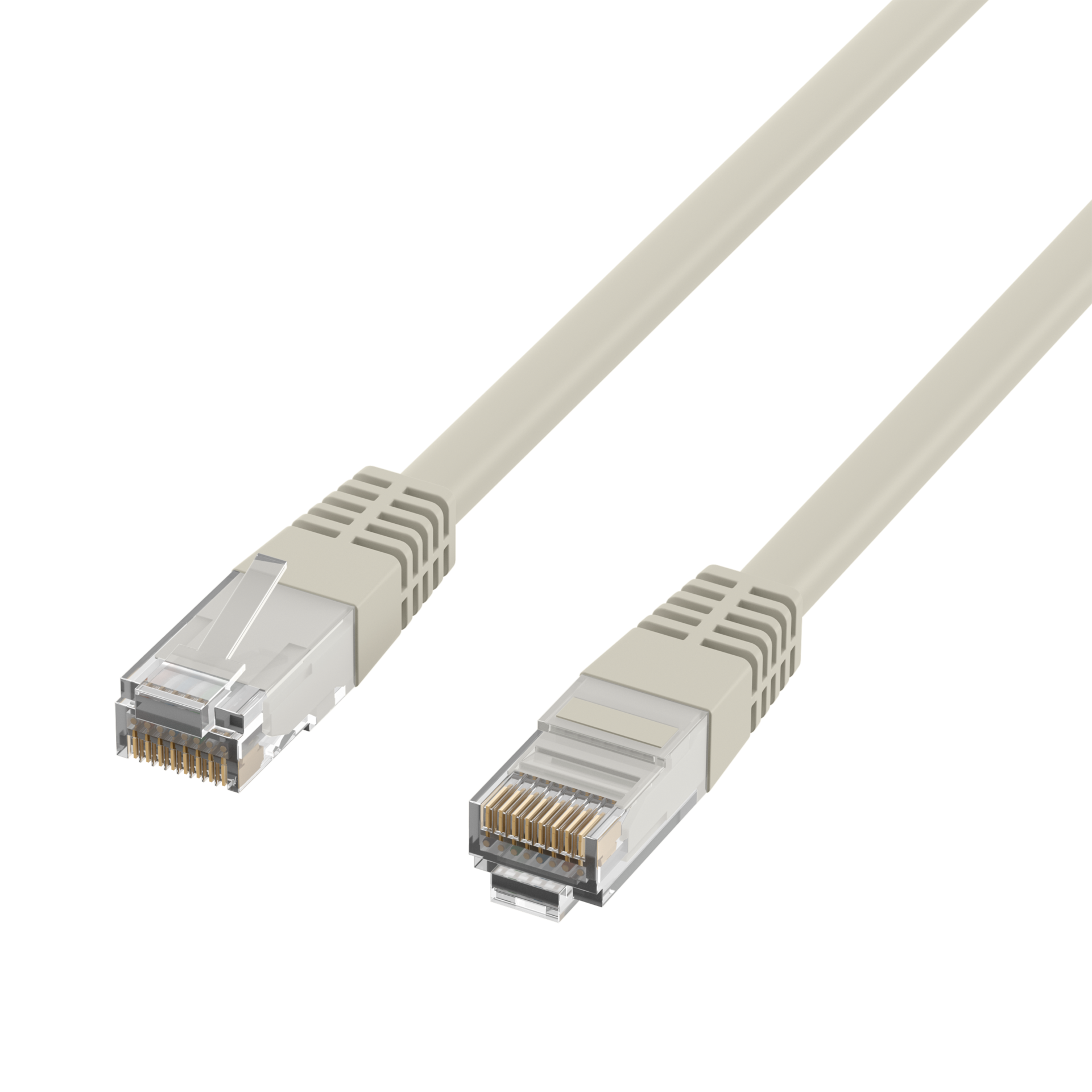

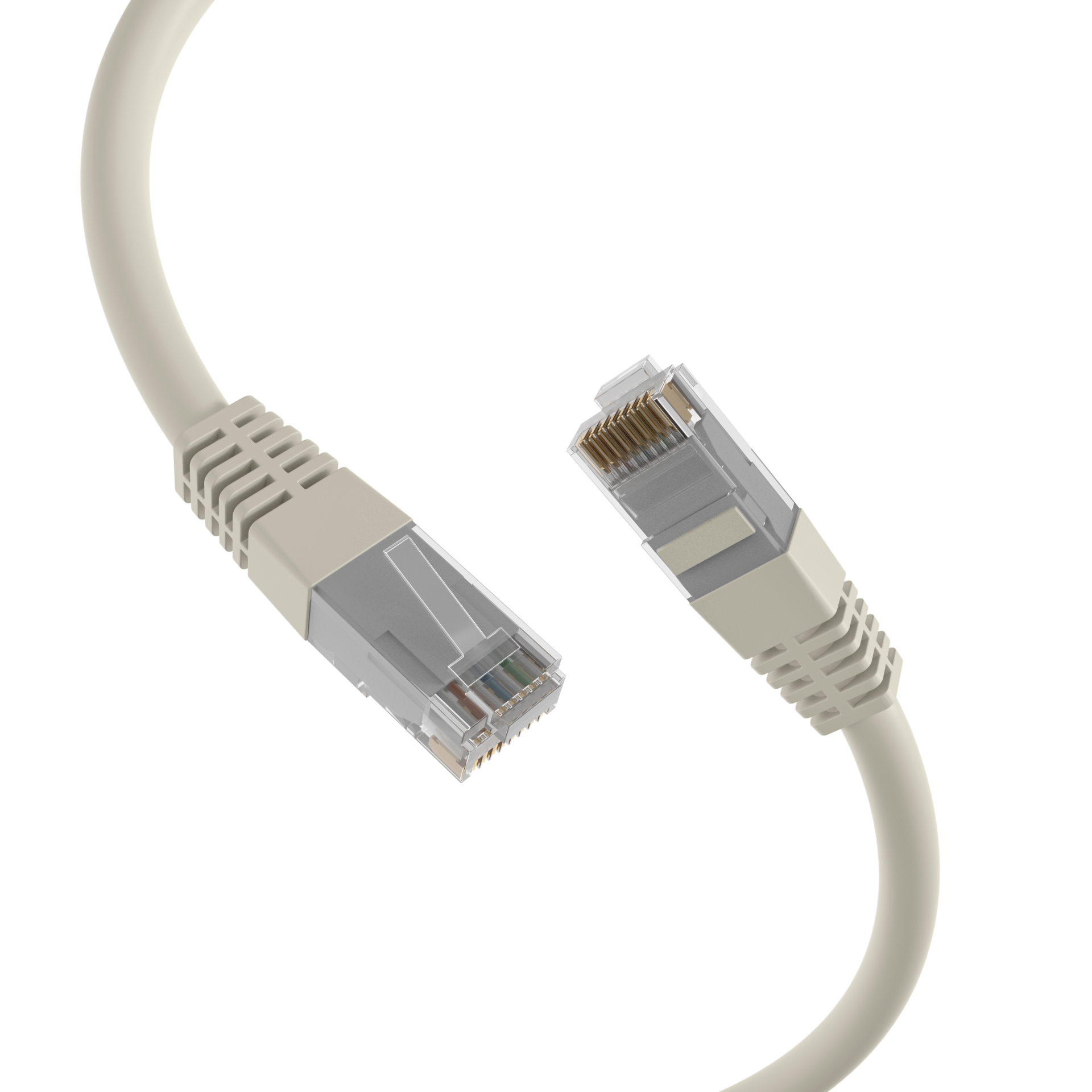

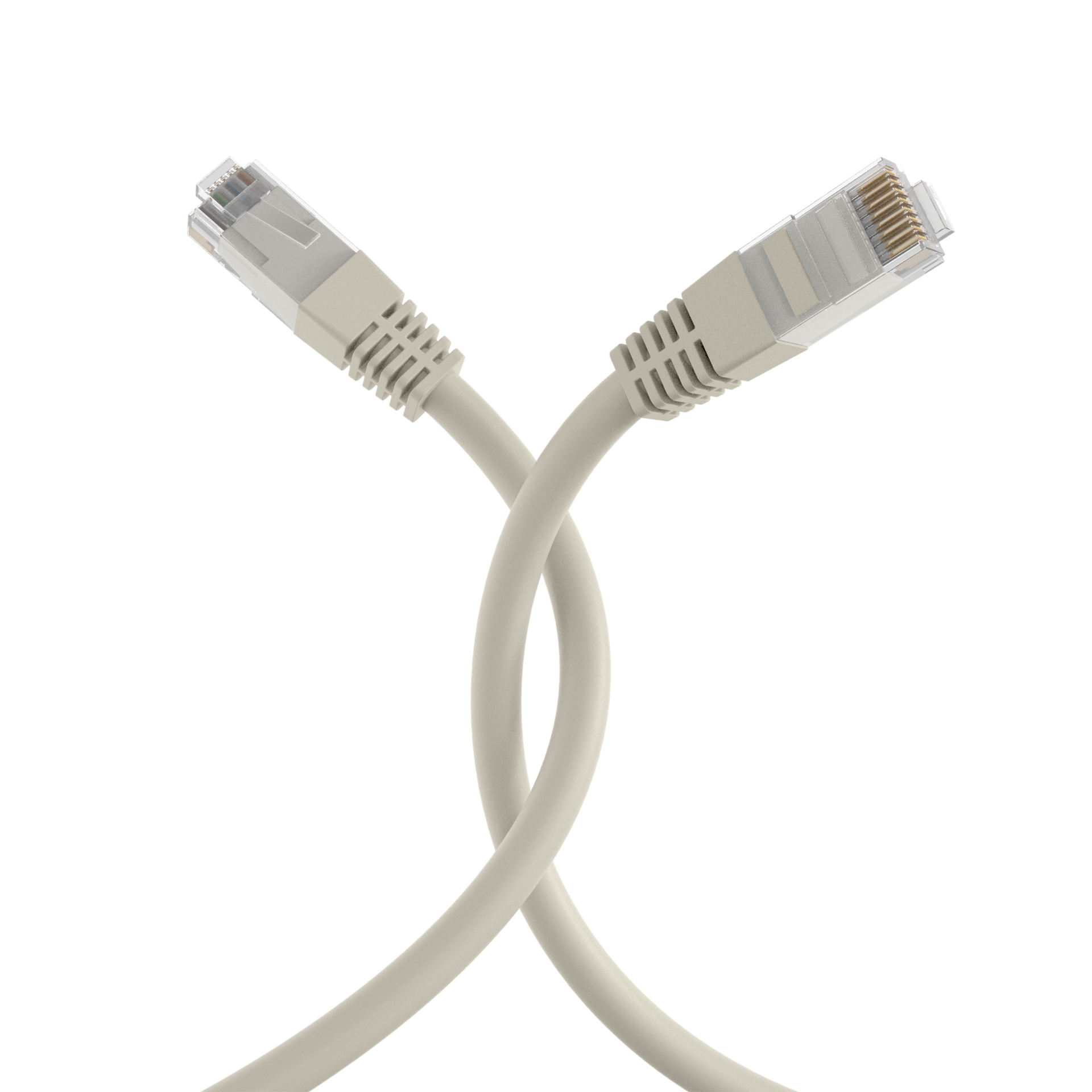

EFB UTP 3m Cat6 K8100GR.3
Κωδικός plus26: 5853-465
Κωδικός Εργοστασίου (MPN): K8100GR.3
The unshielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
- AWG-size: 24/7
- Allocation: acc. TIA/EIA 568B
- Anti-kink sleeve: plugged in
- Area of Application: Data center
- Industrial Ethernet
- Structured cabling
- Bandwidth: 250MHz
- Bending radius: 30 mm
- Cable construction: 4x2
- Cable type: U/UTP
- Cabling standard: EN50173
- ISO/IEC 11801
- Category: 6
- Colour anti-kink sleeve: grey
- Colour outer sheath: grey
- Conductor Material: CCA
- Connector: IEC 60603-7-4
- Connector type: RJ45 Standard
- Contacts: Gold plated µ" gold plated
- Current Rating: max. 1 A
- Fire retardant version: False
- Halogen free: False
- Jacket Material: Polyvinylchlorid (PVC)
- Length imprint: True
- Locking lever: False
- Mating cycles: ≥750
- Model: Unshielded
- NVP value: - %
- Oil resistant (acc. EN 60811-2-1): False
- Oil resistant (according to EN 60811-404): False
- Operating-/ tempering voltage: max. 50 V DC
- Outer diameter of the cable: 5.9 mm
- POE class: 4PPoE acc. to IEEE802.3bt
- PoE+ acc. to IEEE802.3at
- PoE acc. to IEEE802.3af
- Pin assignment: 1:1
- Printing: Cat.6 UTP AWG24 stranded x 4pairs cable www.efb-elektronik.de
- Silicone-free: True
- Suitable for degree of protection (IP): IP20
- Temperature range: -20 – 70 °C
- Transmission: 5Gbit
- Type of connector connection 1: RJ45 8(8)
- Type of connector connection 2: RJ45 8(8)
