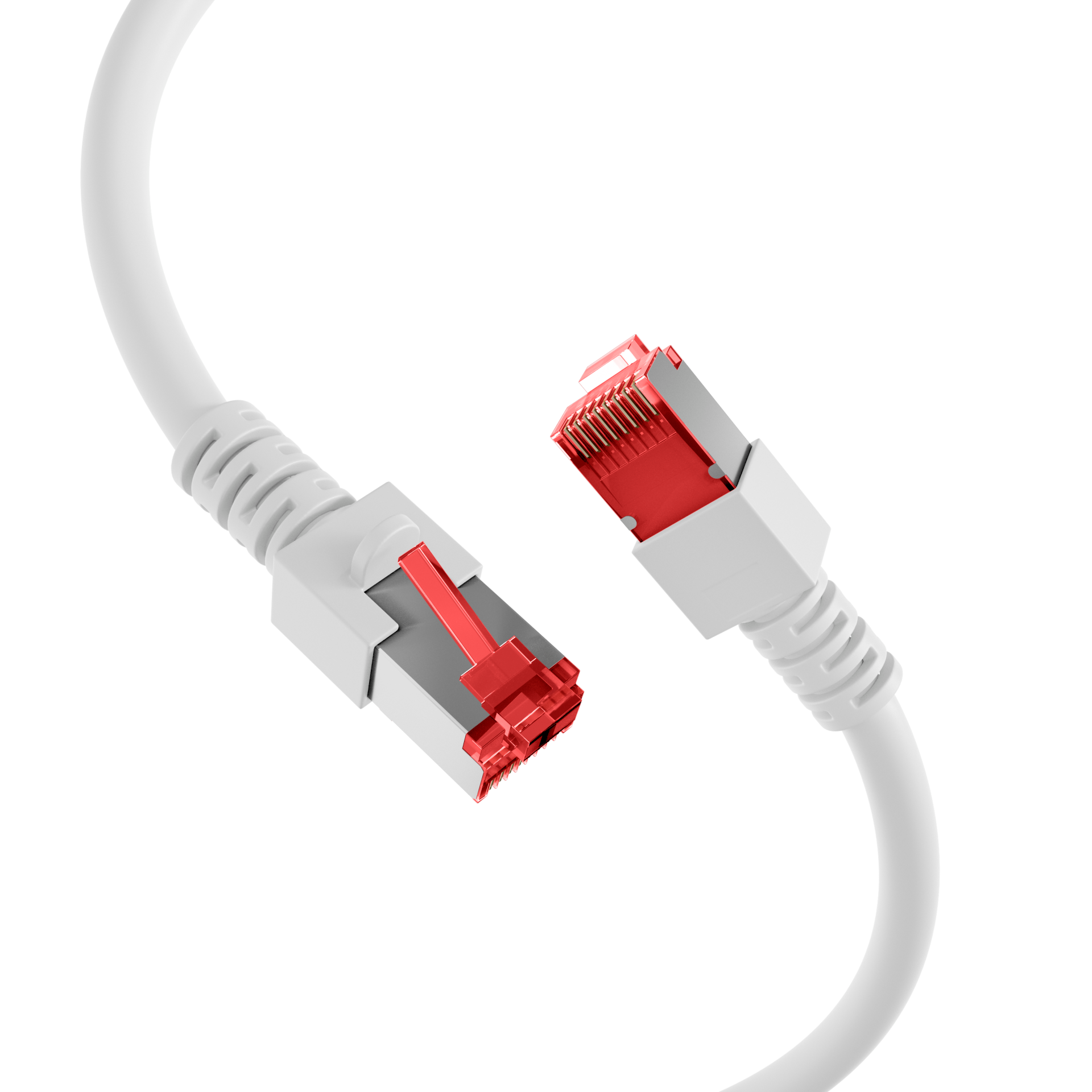

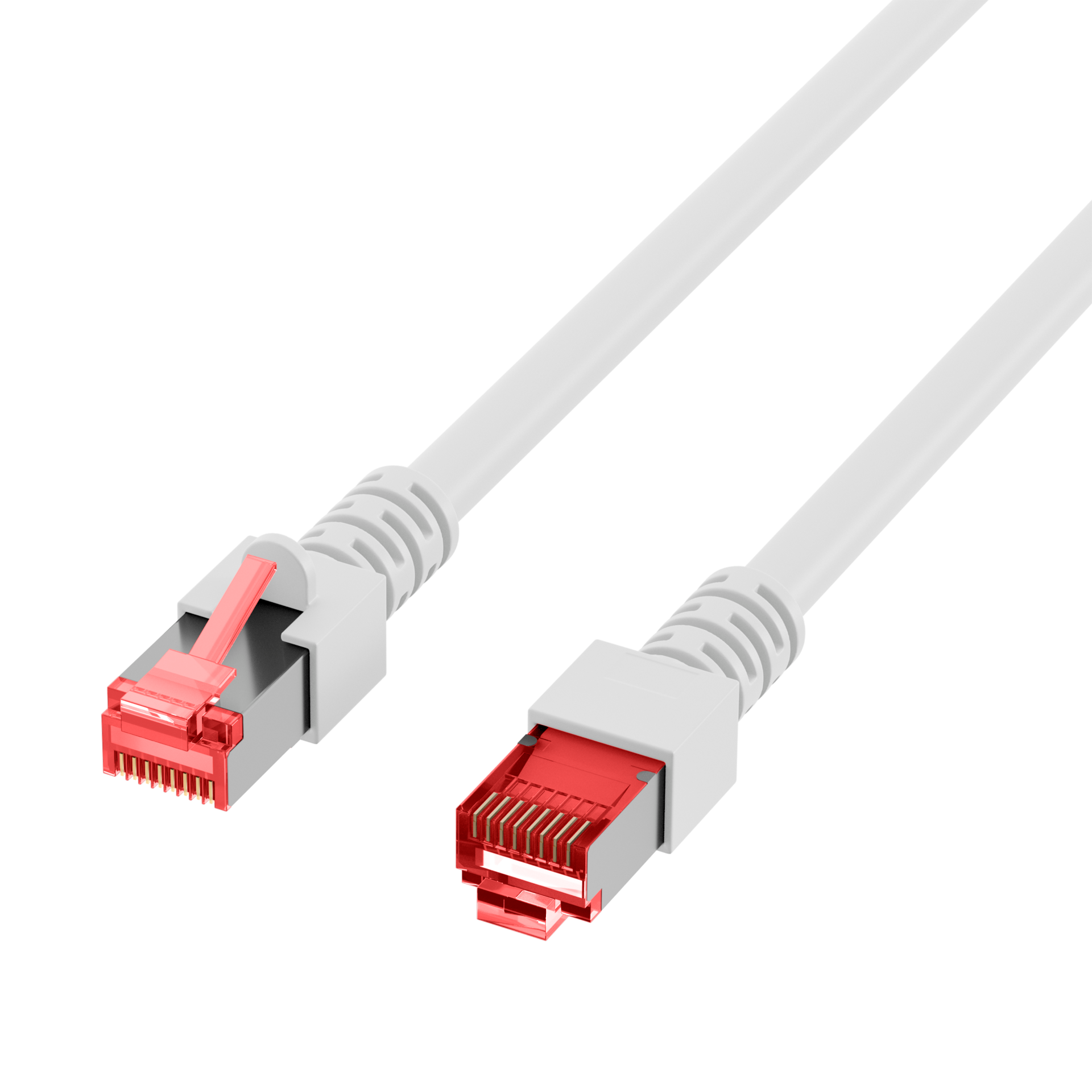

EFB RJ45 Patch Cord Cat.6 S/FTP LSZH white K5518.3

AWG-size: 27/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Data center
Industrial Ethernet
Structured cabling
Bandwidth: 250MHz
Bending radius: >31 mm
Cable construction: 4x2
Cable type: S/FTP
Category: 6
Colour anti-kink sleeve: white
Colour outer sheath: white
Conductive shield: Selected shield contact
Conductor Material: Copper
Conductor resistance DC: 185 Ω/km
Connector: IEC 60603-7-5
Connector type: RJ45 Standard
Contact Resistance: 30 mΩ
Contacts: Gold plated
Current Rating: max. 1 A
Fire retardant version: True
Flame retardant: acc. IEC60332-1
Halogen-free: True
Halogen free: True
Insulation Resistance: 10 MΩ
Jacket Material: LSZH
Length imprint: True
Locking lever: True
Loop resistance: 370 Ω/km
Low smoke: True
Mating cycles: 2000
Model: Shielded
NVP value: - %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.2 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at
PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit*** www.efb-elektronik.de
Resistance unbalance: 5 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: 0 – 60 °C
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
