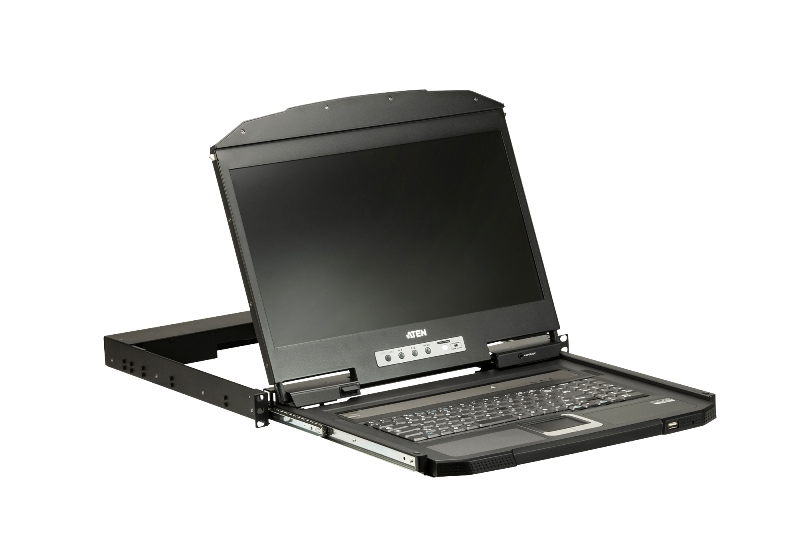

ATEN CONSOLE 1U 18.5" USB/VGA short depth CL3100NX
Κωδικός plus26: 173-356130
Κωδικός Εργοστασίου (MPN): CL3100NX
Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM Console with short depth single rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
Supports an external console with USB / VGA connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz
Space Utility Optimization
Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
Console lock – enables the console drawer to remain securely locked away in position when not in use
Optional 2-in-1U Mounting Kit (2K-0001/2K-0002/2K-0007) – fitting the CL3100 and a rack KVM switch/KVM over IP switch in 1U of space on a rack for space-saving, easy and flexible operation*
Reliability and Operational Versatility
Supports VGA video input; supports an external console with USB / VGA connectors
18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
External console supports input video resolutions up to 1920 x 1200 @ 60Hz
Audio support for connecting speakers
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
Console selection via hotkey
Standard 105-key keyboard
Installation Flexibility
Standard rack mount kit included
Optional rack mount kits available including easy installation options*
No software required
Firmware upgradable
Supports hot-plugging
Καλέστε μας
Για βοήθεια σχετικά με την επιλογή του κατάλληλου RACK και των παρελκόμενων του επικοινωνήστε μαζί μας για διευκρινίσεις.
Παράδοση
ΠΡΟΣΟΧΗ: Η παράδοση των RACK γίνεται στην είσοδο του κτιρίου.
Μεταφορικά
Για βαριά ή ογκώδη αντικείμενα επικοινωνήστε μαζί μας για μειωμένα εξόδα αποστολής με συνεργαζόμενη μεταφορική.

Function CL3100NX
Computer Connections
Direct 1
Console Selection Hotkey
Connectors
KVM Ports 1 x SPHD Female (Yellow)
1 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade 1 x 3.5mm Audio Jack Female (Black)
Power 1 x IEC 60320/C14
External Console Ports 1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
External Mouse / Peripheral 1 x USB Type A Female (Front)
Switches
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch
Power 1 x Rocker Switch
LCD Control 4 x Pushbutton
LCD Power 1 x LED Pushbutton
LEDs
Power 1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 18.5" TFT-LCD
Resolution 1366 x 768 @ 60Hz
Response time 5 ms
Viewing Angle 170° (H), 160° (V)
Pixel Pitch 0.3 mm x 0.3 mm
Support Color 16.7M colors
Contrast Ratio 1000 : 1
Luminance 250 cd/m²
Video
Input Video Resolution up to 1920 x 1200 @ 60Hz;
1366 x 768 @ 60 Hz, DDC2B
Emulation
Keyboard / Mouse USB
Maximum Input Power Rating 100–240 V AC, 50/60 Hz, 1 A
Power Consumption AC110:13.8W:80BTU
AC220:14.1W:81BTU
Environmental
Operating Temperature 0–40°C
Storage Temperature -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 9.07 kg ( 19.98 lb )
Dimensions (L x W x H) 48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.)
Body Dimensions(L x W x H) 44.92 x 43.00 x 4.28 cm
Note Body Dimensions exclude I/O ports, handles, and mounting brackets.
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
