Description

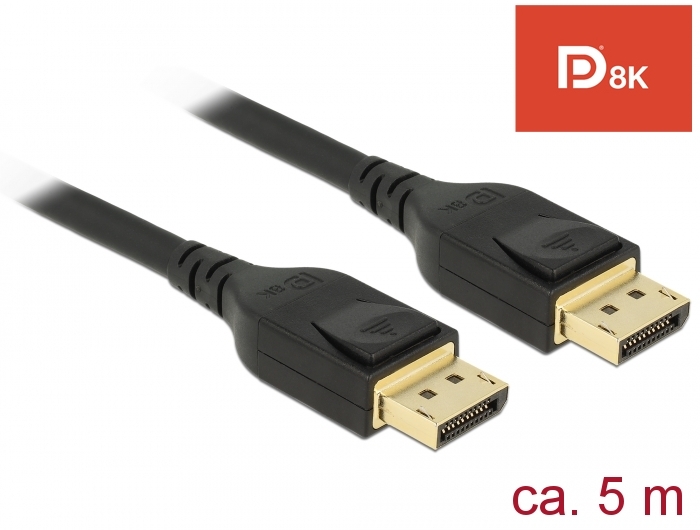

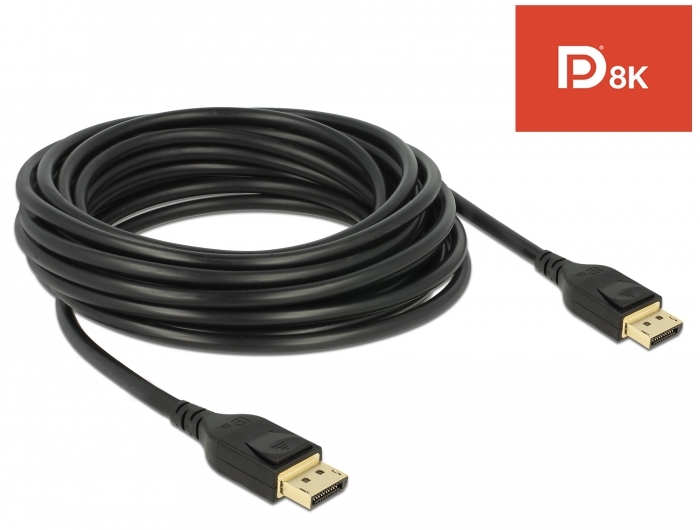

This certified DisplayPort cable by Delock is used to connect devices with a DisplayPort interface, such as monitors, beamers or televisions, to a PC or laptop. Supporting a maximum bandwidth of 32.4 Gb/s, content can be displayed in 8K Ultra HD (7680 x 4320 @ 60 Hz) resp. 5K (5120 x 2880 @ 120 Hz) and 4K Ultra HD (3840 x 2160 @ 240 Hz) resolution. The high-quality, triple-shielded cable also significantly improves the quality of audio transmissions with a sampling rate of up to 1536 kHz.

Specification

• Connectors:
  1 x DisplayPort 20 pin male >
  1 x DisplayPort 20 pin male
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• DisplayPort® DP 8K certified cable
• Pin 20 not connected
• Cable gauge: 28 AWG
• Cable diameter: ca. 7.5 mm
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gb/s
• Resolution up to:
  Display with DSC support:
    7680 x 4320 @ 60 Hz
    5120 x 2880 @ 120 Hz
    3840 x 2160 @ 240 Hz
  Display without DSC support:
    7680 x 4320 @ 30 Hz
    5120 x 2880 @ 60 Hz
    3840 x 2160 @ 120 Hz
  (depending on the system and the connected hardware)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Supports HBR3 (8.1 Gb/s) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
• Colour: black
• Length incl. connectors (L): ca. 5 m

System requirements

• A free DisplayPort interface

Package content

• DisplayPort cable

Package

• Retail Box
