Delock MINI DISPLAY PORT/DISPLAY PORT 2m 82438

Κωδικός plus26: 5160

Κωδικός Εργοστασίου (MPN): 82438

Εγγραφείτε για τιμή

Description

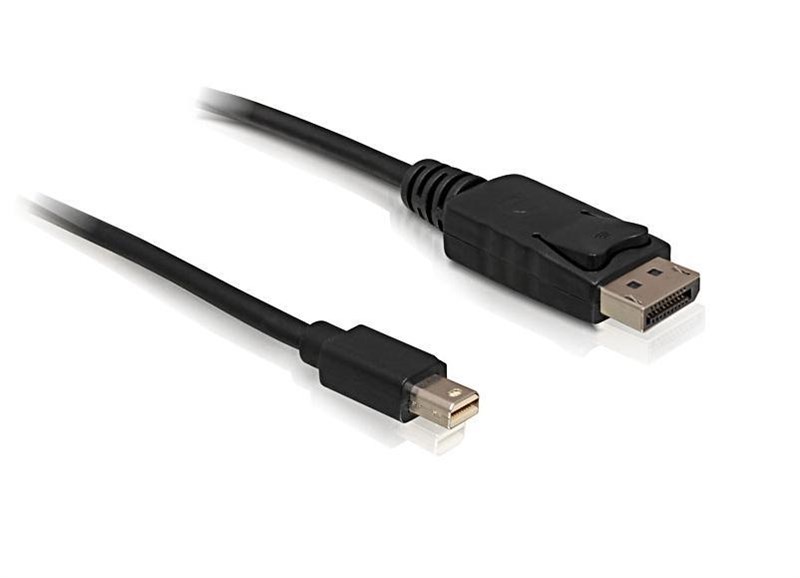

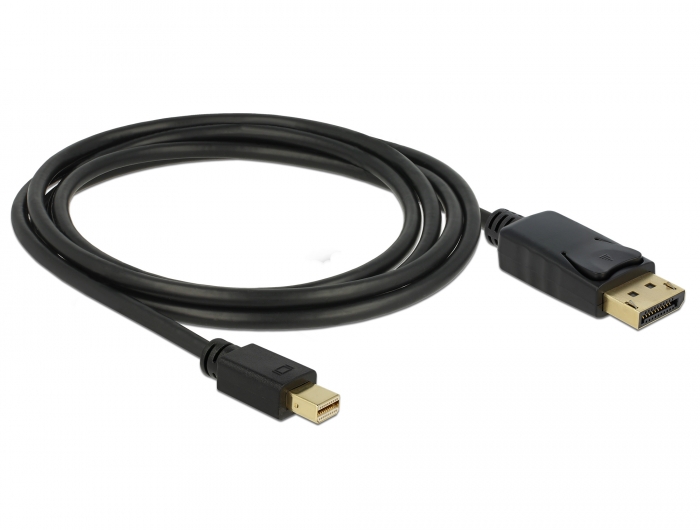

This Mini DisplayPort cable by Delock can be used to connect devices with DisplayPort interface, e.g. displays, projectors or TVs, to a PC or laptop. The triple shielded cable supports a resolution of up to Ultra HD (4K @ 60 Hz) and is downwards compatible to Full-HD 1080p.

Specification

• Connectors:
  1 x mini DisplayPort male >
  1 x DisplayPort male
• Input = mini DisplayPort; Output = DisplayPort
• DisplayPort 1.2 specification
• Pin 20 not connected
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Copper conductor
• Net shielding
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 21.6 Gb/s
• Resolution up to 3840 x 2160 @ 60 Hz
  (depending on the system and the connected hardware)
• Colour: black
• Length incl. connectors: ca. 2 m

System requirements

• One free mini DisplayPort female

Package content

• Mini DisplayPort cable

General
Specification
• DisplayPort 1.2
Interface
Connector 1
• 1 x mini DisplayPort male
Connector 2
• 1 x DisplayPort male
Technical characteristics
Data transfer rate
• 21,6 Gb/s
Maximum screen resolution
• 3840 x 2160 @ 60 Hz
Physical characteristics
Cable diameter
• 5.5 mm
Pin finishing
• gold-plated
Conductor material
• copper
Conductor gauge
• 32 AWG
Shielding
• triple
Length
• 2 m
Colour
• black
