ΤΡ-LΙΝΚ Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall v1

Κωδικός plus26: 173-313736

Κωδικός Εργοστασίου (MPN): EAP235-Wall

Εγγραφείτε για τιμή

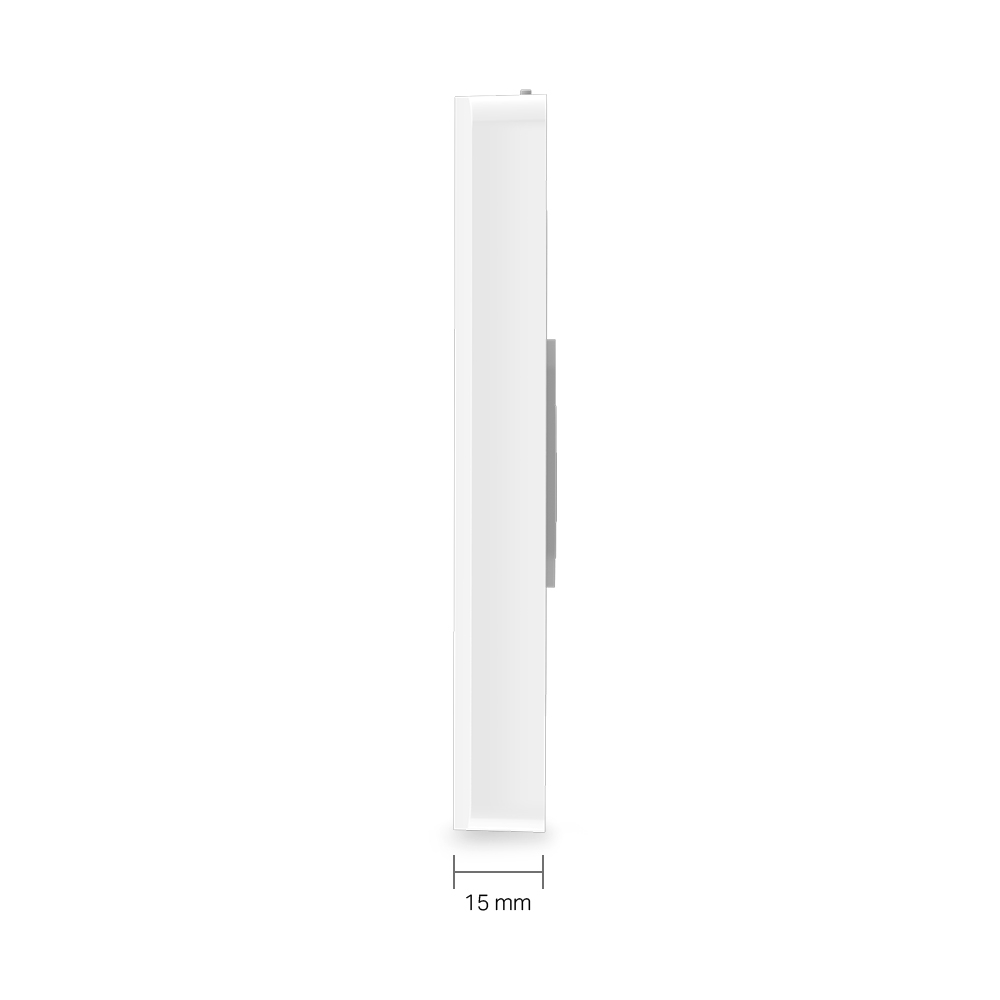

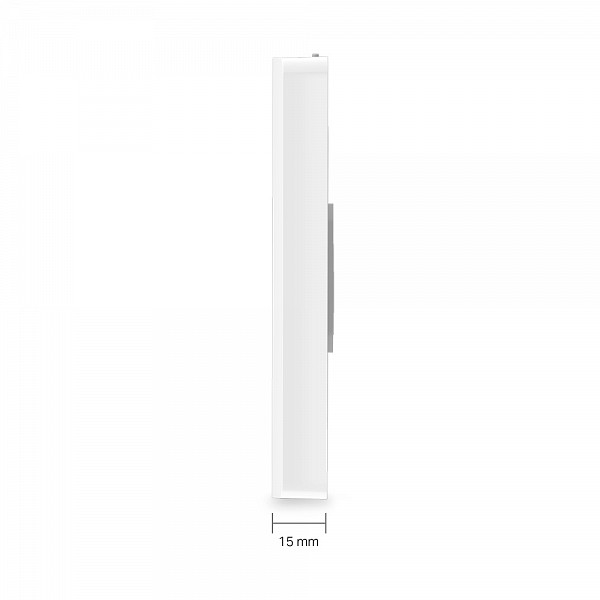

Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments

Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment

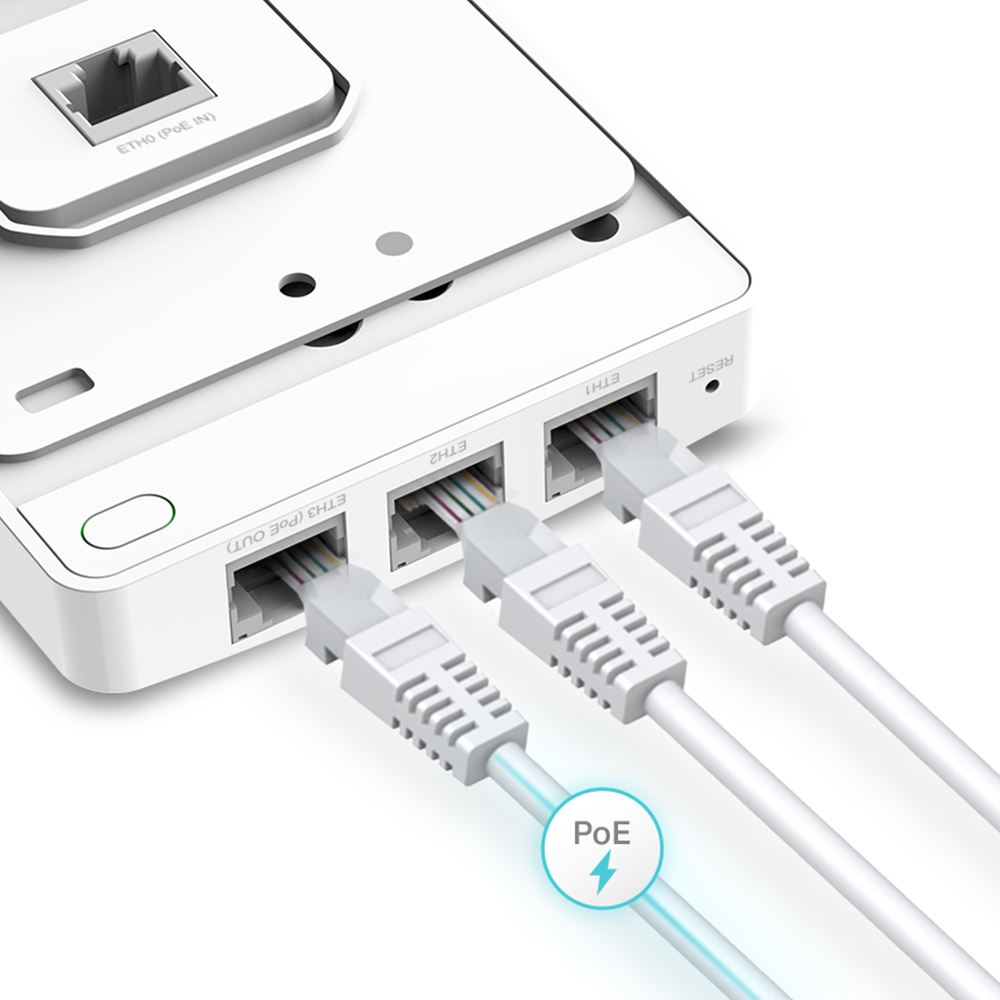

Interface: 4 Gigabit Ethernet ports (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device

High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices

Cloud management and Omada app supported for ultra-convenience and easy management

Enterprise class Wi-Fi security helps to decrease network security threats

Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology

HARDWARE FEATURES
Interface Uplink: 10/100/1000 Mbps Ethernet Port*1
Downlink: 10/100/1000 Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/802.3at PoE
Power Consumption 9.8 watts /24.4 watts (PoE Out Included)
Dimensions 143 × 86 × 20mm (5.6 × 3.4 × 0.8 in)
Antenna 2 Dual-Band Antennas
2.4GHz: 2*4dBi
5GHz: 2*4dBi
Mounting Wall Plate Mounting

WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Wireless Functions 16 SSIDs（Up to 8 SSIDs on each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Band Steering
Beamforming
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power CE:
≤20 dBm (2.4 GHz, EIRP)
≤23 dBm (5 GHz, EIRP)
FCC:
≤21 dBm (2.4 GHz)
≤21 dBm (5 GHz)

MANAGEMENT
Omada Cloud Access Yes
Omada App Yes
Omada Cloud Controller Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes

OTHERS
Certification CE, FCC, RoHS
Package Contents Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
EAP235-Wall
Installation Guide
Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
