• Connectors:

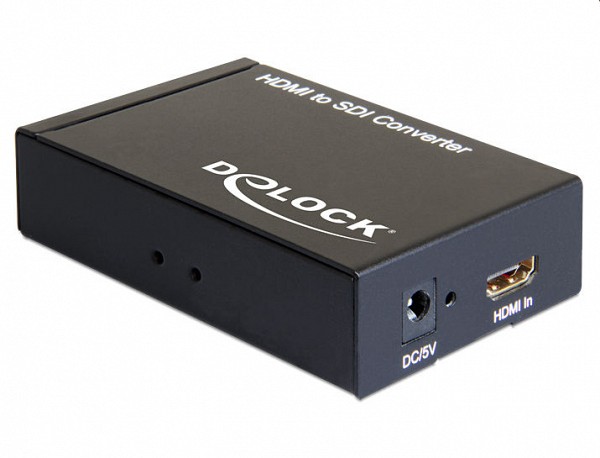

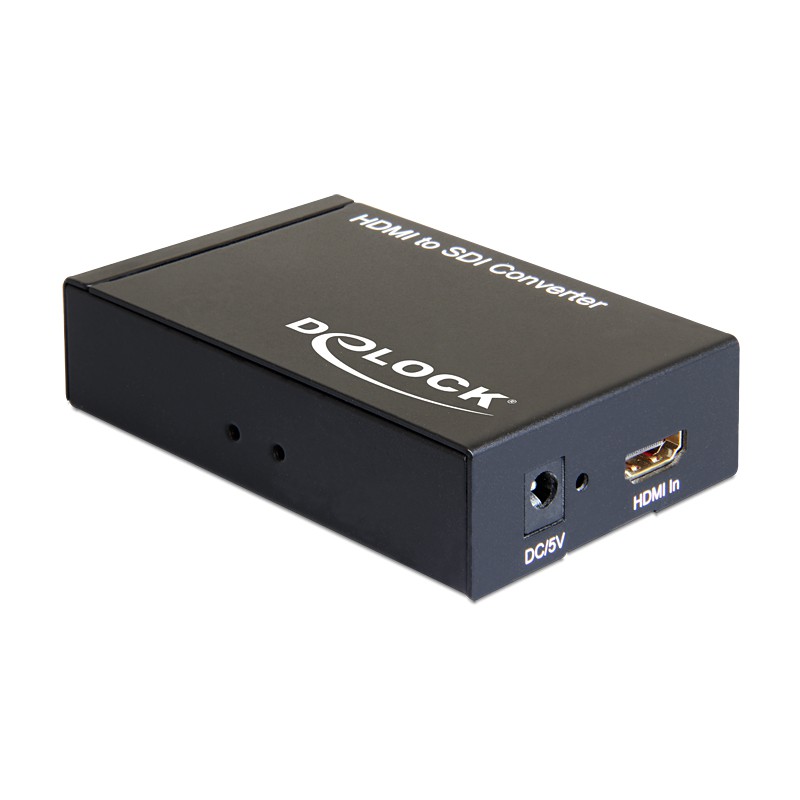

  Input:
  1 x HDMI-A female

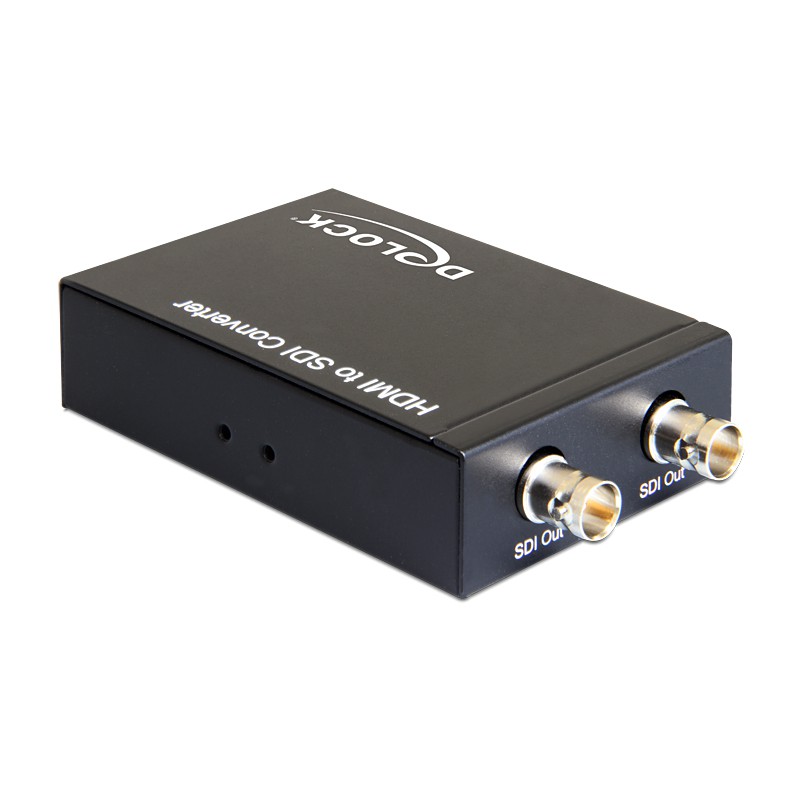

  Output:
  2 x BNC female (SDI)
• Chipset: GV7600
• Supports 3G-SDI Level A
• Supported resolution:
  SD 480i, 525i and 625i
  HD 720p 24, 25, 30, 50 and 60 Hz
  HD 1080i 50, 60 Hz
  HD 1080p 24, 25, 30, 50 and 60 Hz
• Data transfer rate up to 3 Gbps
• Supports 8 audio channels with 48 kHz PCM
• Robust metal housing
• Power consumption: max. 4 W
• Dimensions (LxWxH): ca. 100 x 70 x 25 mm

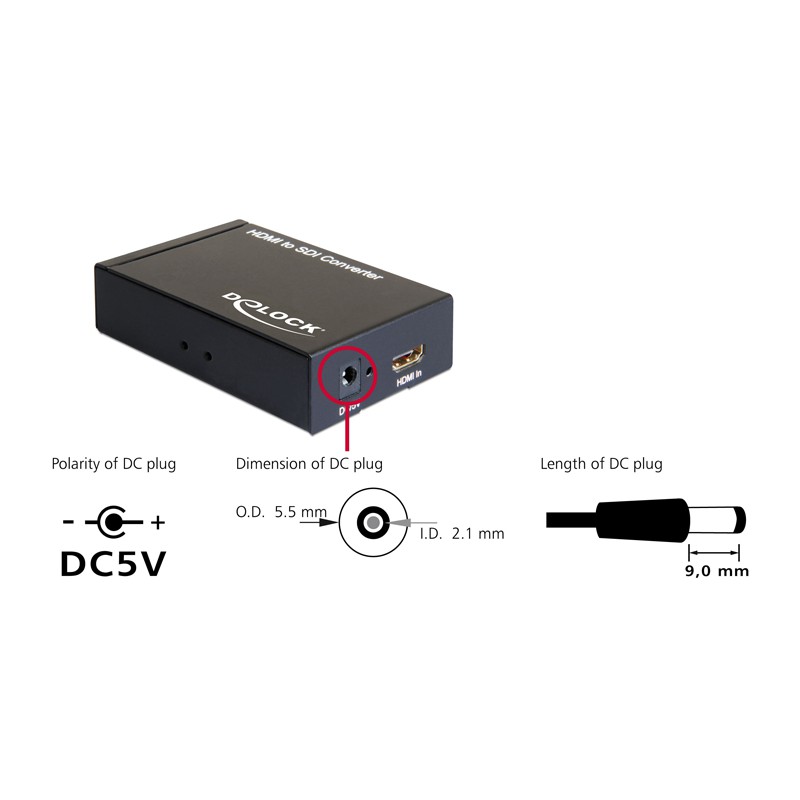

Power supply specification

• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  length: ca. 9 mm

Package content

• Converter HDMI to 3G-SDI

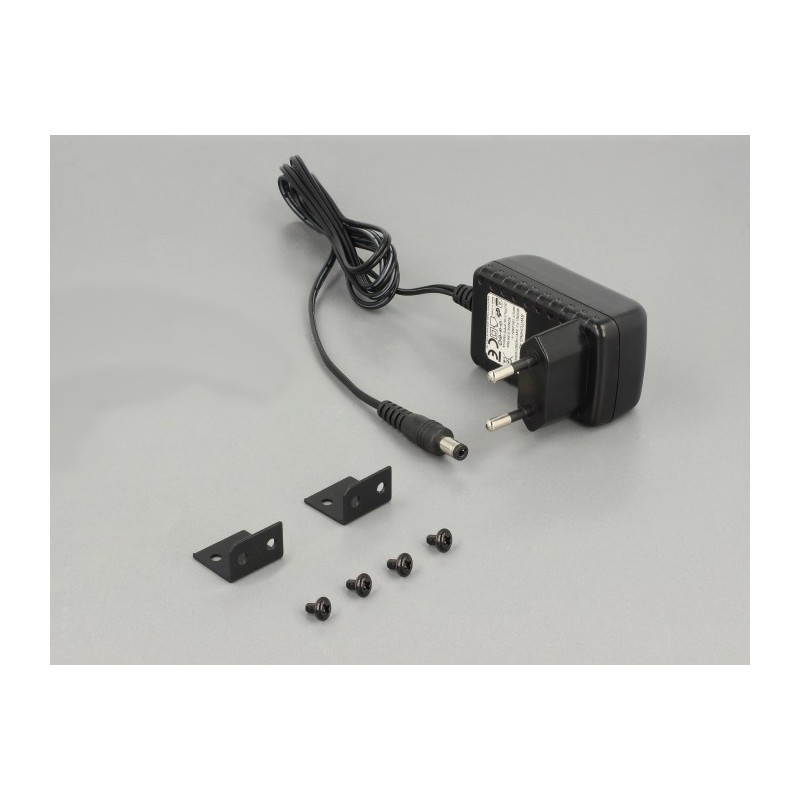

• Mounting brackets and screws
• Power supply

Package

• Retail Box

Revision notice

03/2019 New power supply
