Description

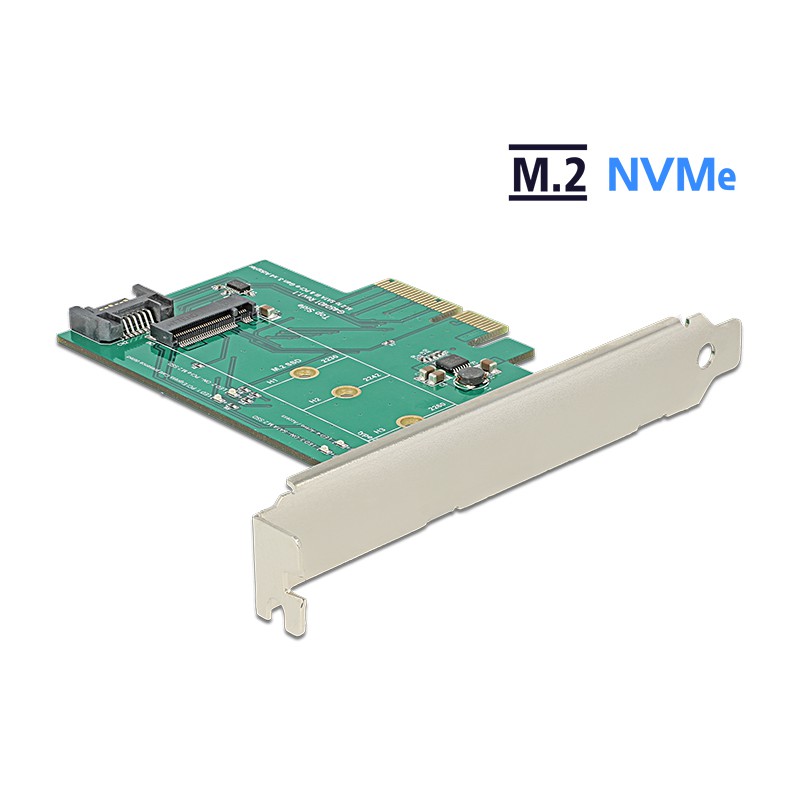

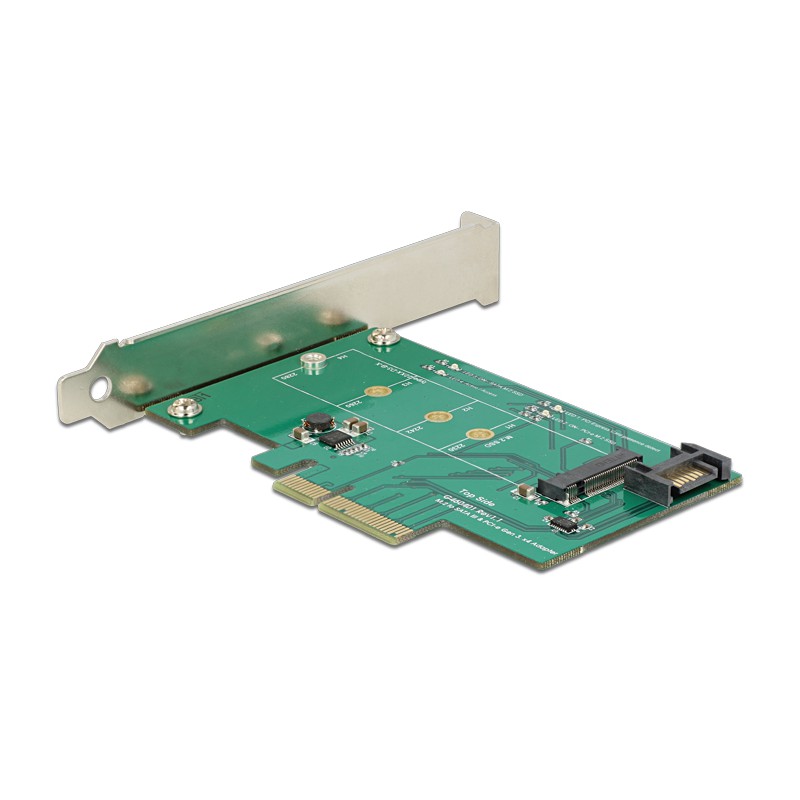

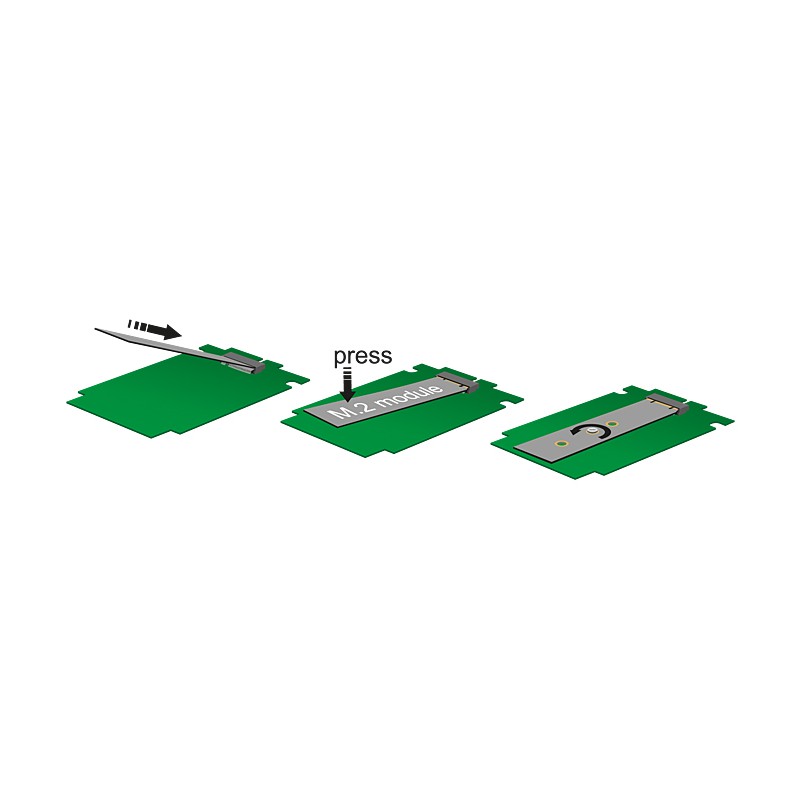

This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected. When connecting a SATA module, the SATA 7 pin port must be connected to the motherboard.

Specification

• Connector:
  internal:
  1 x 67 pin M.2 key M slot
  1 x SATA 6 Gb/s 7 pin plug
  1 x PCI Express x4
• Interface: PCIe / SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based
  on PCIe or SATA

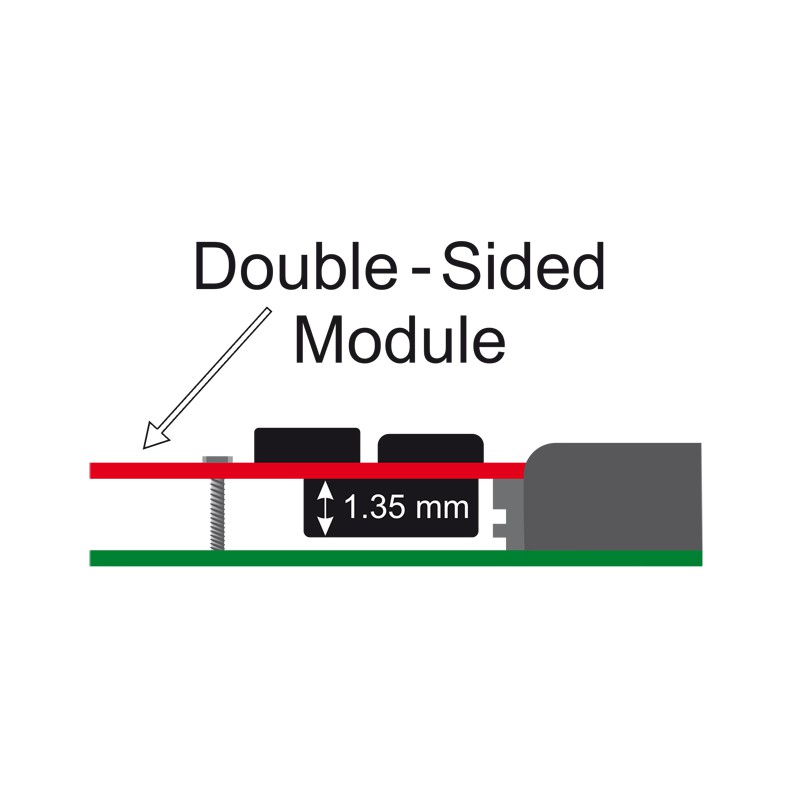

• Maximum height of the components on the module: 1.35 mm application of double-sided
  assembled modules supported
• Supports M.2 PCI Express 2-Lane and 4-Lane modules

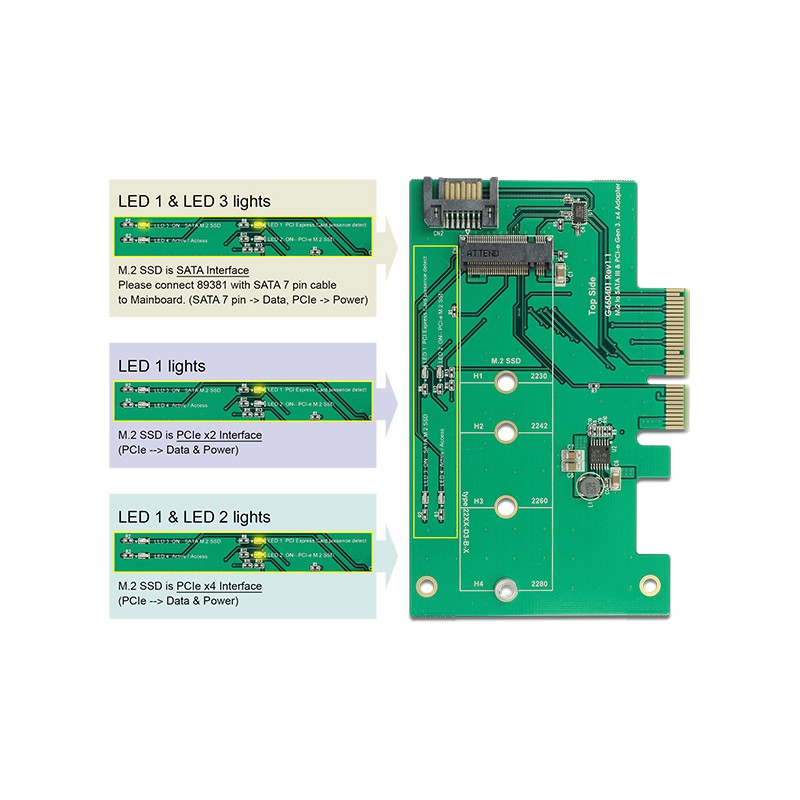

• 4 LEDs for indication of SATA or PCI Express module and for activity status
• Bootable (with SATA module)
• Supports NVM Express (NVMe)
• OS independent, no driver installation necessary

System requirements

• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• Additional need a free SATA port and SATA data cable if using a SATA module

Package content

• PCI Express card
• Mounting material
• User manual

Package

• Retail Box
