Description

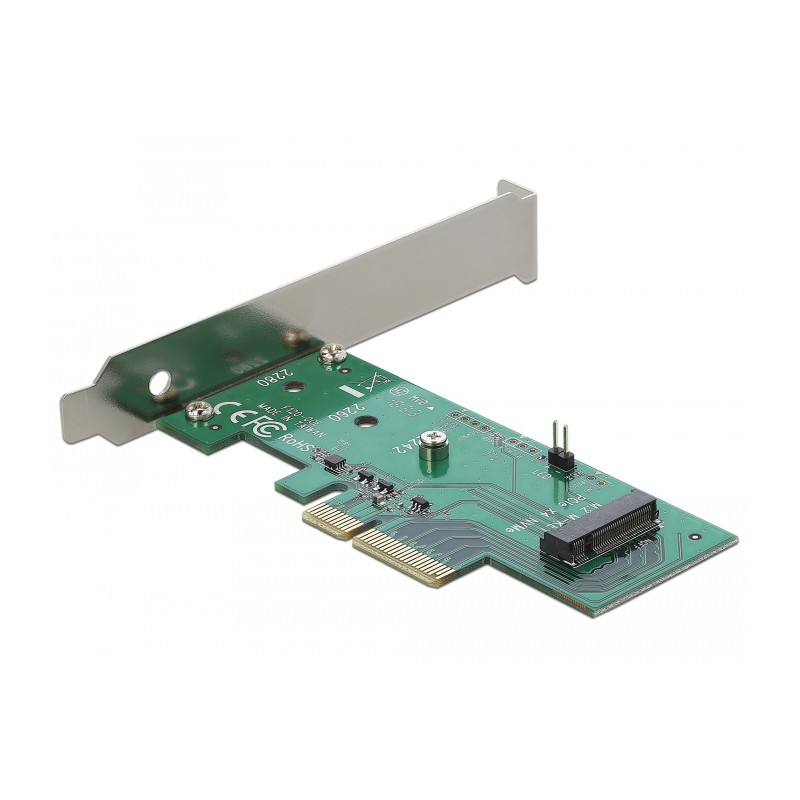

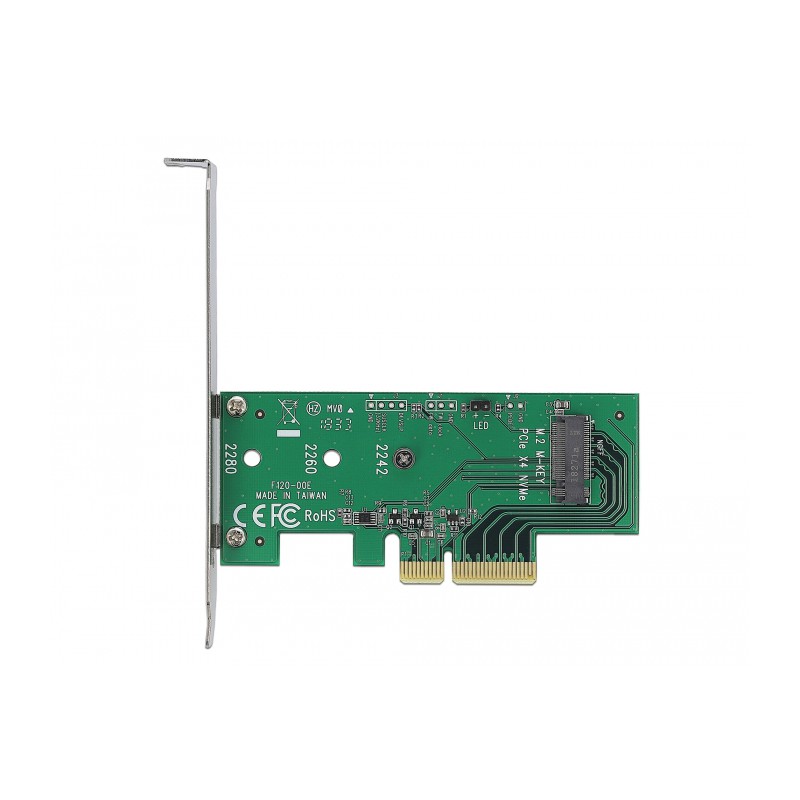

This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260 or 2242 format can be connected.

Specification

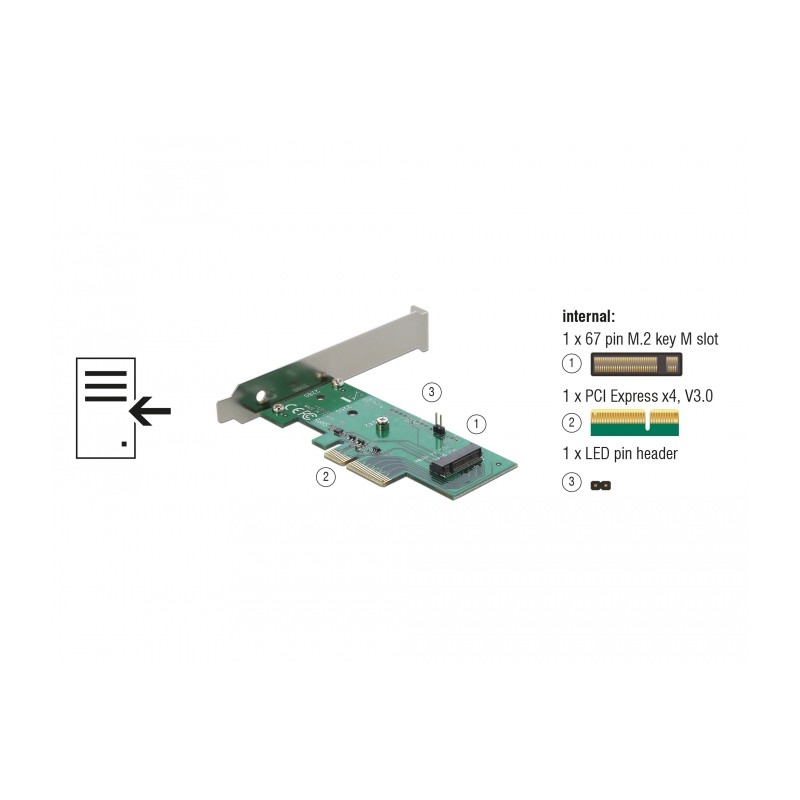

• Connectors:
  internal:
  1 x 67 pin M.2 key M slot
  1 x PCI Express x4, V4.0
  1 x 2 pin pin header for LED
• Interface: PCIe

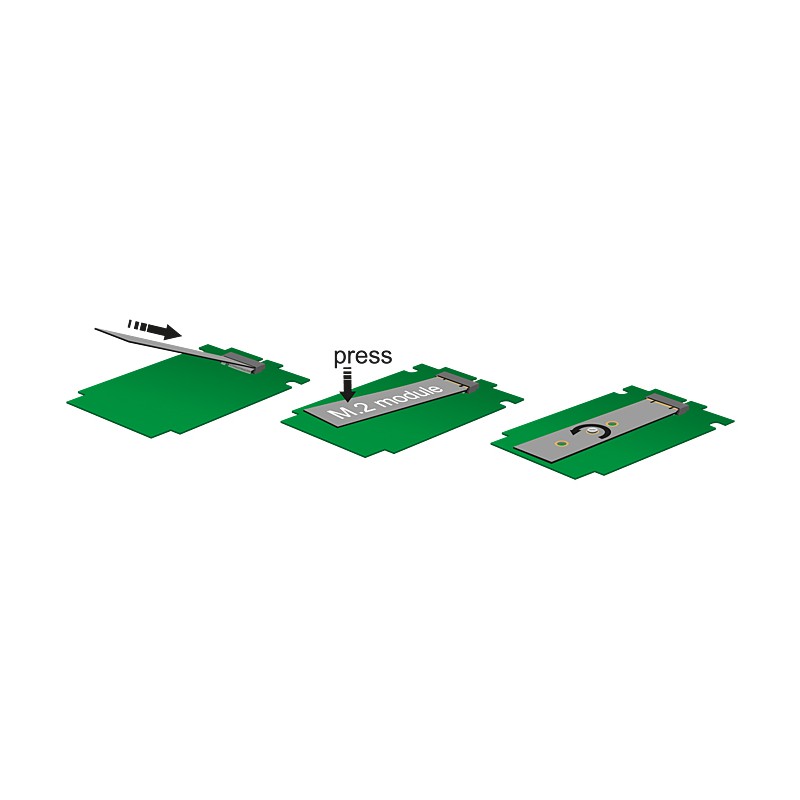

• Supports M.2 modules in format 2280, 2260 and 2242 with key M
  or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm
  application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable, from UEFI version 2.3.1
• OS independent, no driver installation necessary

System requirements

• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content

• PCI Express card

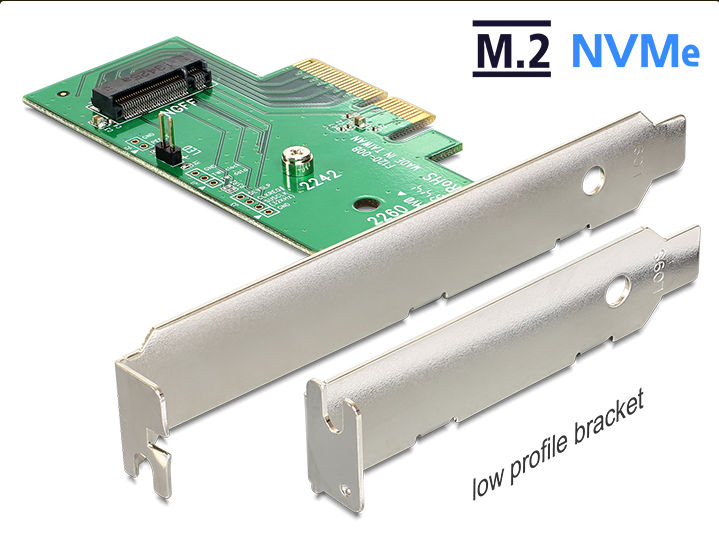

• Low profile bracket
• 1 x fixing screw
• User manual

Package

• Retail Box

Here you can find information about M.2
